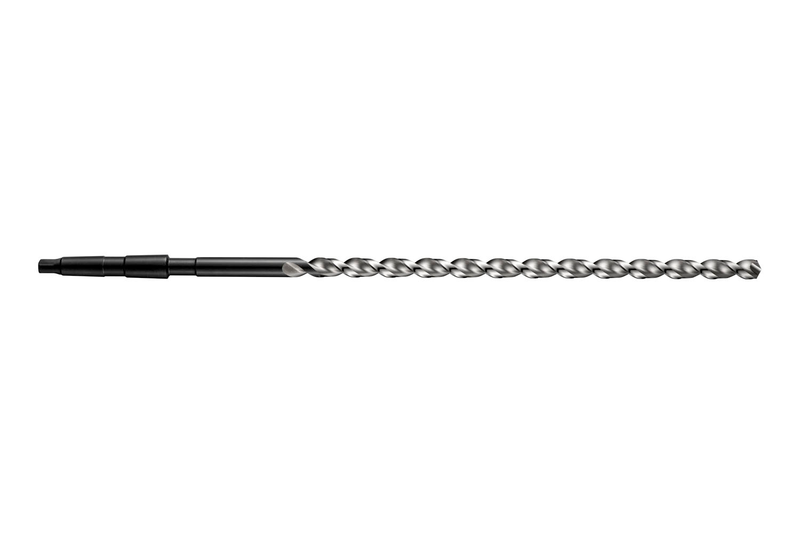

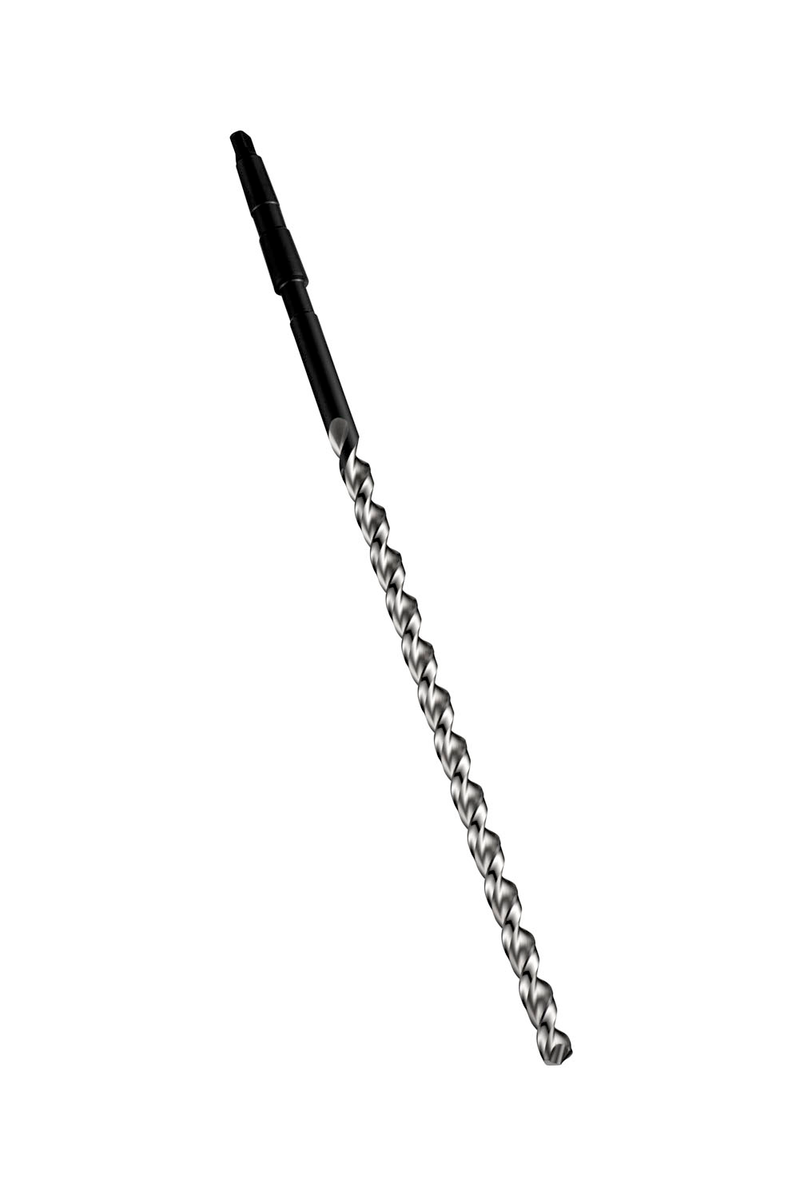

Foret extra-long à queue conique, diamètre 27 mm avec une longueur totale de 580 mm et une longueur de coupe de 385 mm selon la norme DIN 1870 (2) avec un angle de pointe de 130°, HSS avec finition brillante + revenu vapeur, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95227.0
GradeLumineux/CT
Product Number5972699
Product FamilyA952

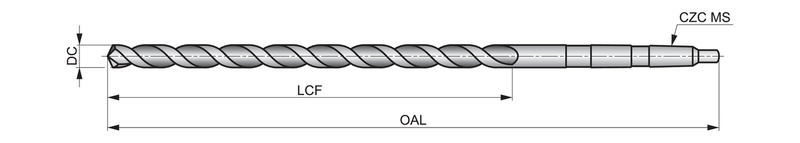

Dimensions
Cutting Diameter — in (DC)1.063"
Cutting Diameter — mm (DC)27.0 mm
Overall Length — in (OAL)22.8346"
Overall Length — mm (OAL)580.0 mm
Flute Length — in (LCF)15.1575"
Flute Length — mm (LCF)385.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number420133
EAN7320760420133
File Type Download
A95227.0 — 3D Model STP Download
A95227.0 — Line Drawing PDF Download
