UGC DOR5972705
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$702.83 CAD - $702.83 CAD
$702.83 CAD
$702.83 CAD - $702.83 CAD
$702.83 CAD

Vendu en lots de : 1

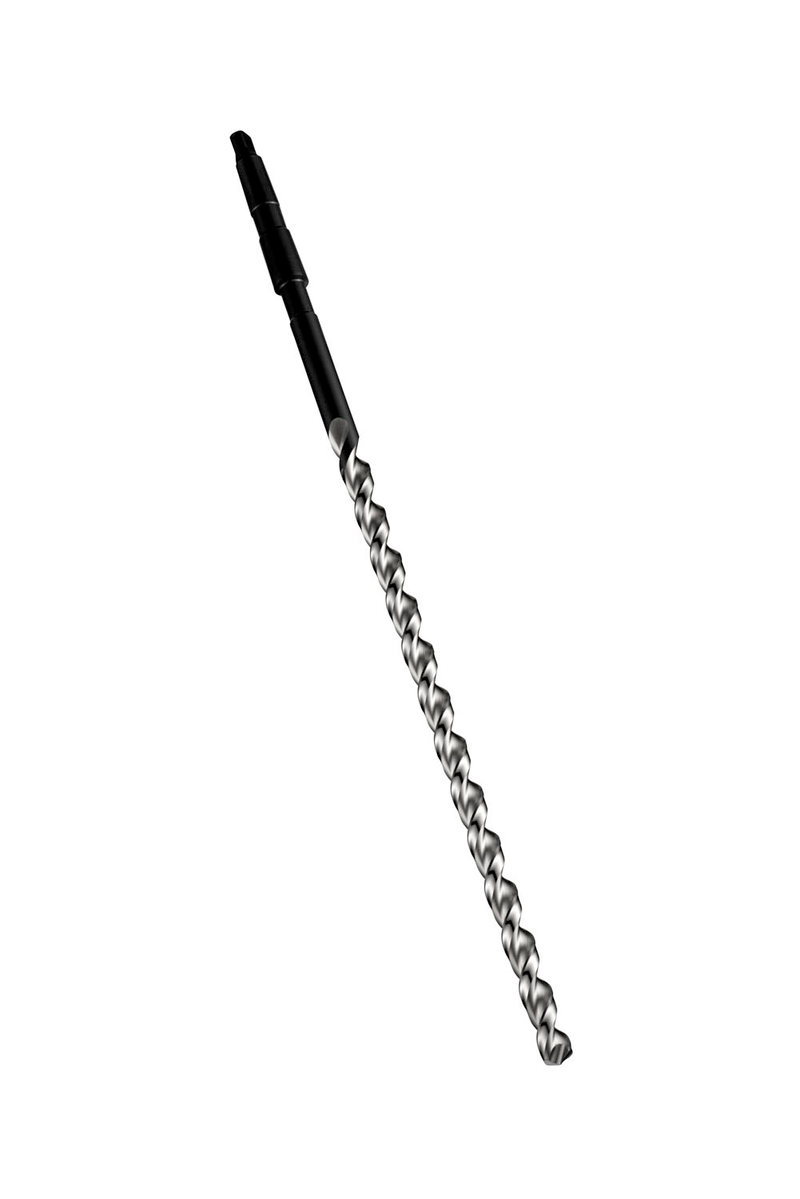

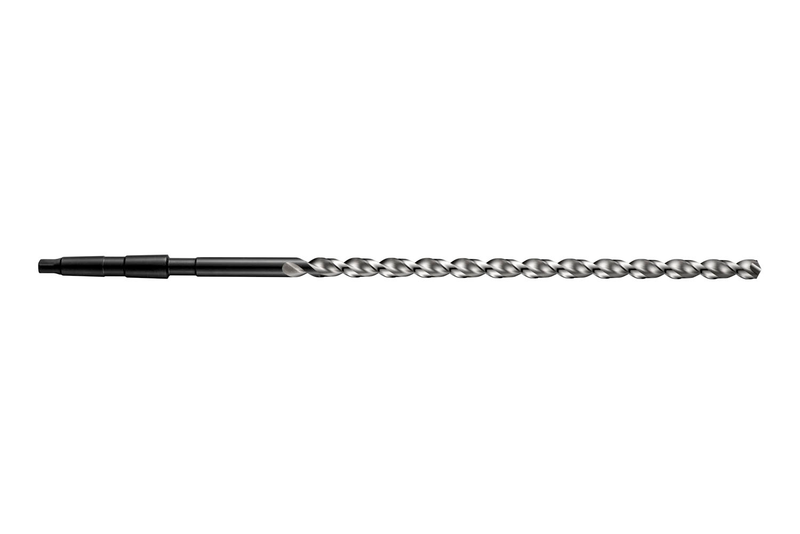

Foret extra-long à queue conique, diamètre 28mm, longueur totale 580mm et longueur utile 385mm selon la norme DIN 1870 (2) avec un angle de pointe de 130°, en HSS avec finition brillante + revenu vapeur, hélice rapide et âme parabolique pour un perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A95228.0
GradeLumineux/CT
Product Number5972705
Product FamilyA952
Dimensions
Cutting Diameter — in (DC)1.1024"
Cutting Diameter — mm (DC)28.0 mm
Overall Length — in (OAL)22.8346"
Overall Length — mm (OAL)580.0 mm
Flute Length — in (LCF)15.1575"
Flute Length — mm (LCF)385.0 mm
Length × Diameter Ratio20
Drill Point Angle (SIG)130°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 1870 (2)
Reference Numbers
EDP Number420140
EAN7320760420140
File Type Download
A95228.0 — 3D Model STP Download

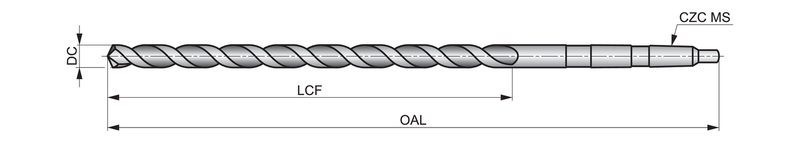

A95228.0 — Line Drawing PDF Download
