G3141220
G3141220

G3141220

UGC DOR5972732
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.13 CAD - $104.13 CAD
$104.13 CAD
$104.13 CAD - $104.13 CAD
$104.13 CAD

Vendu en lots de : 1

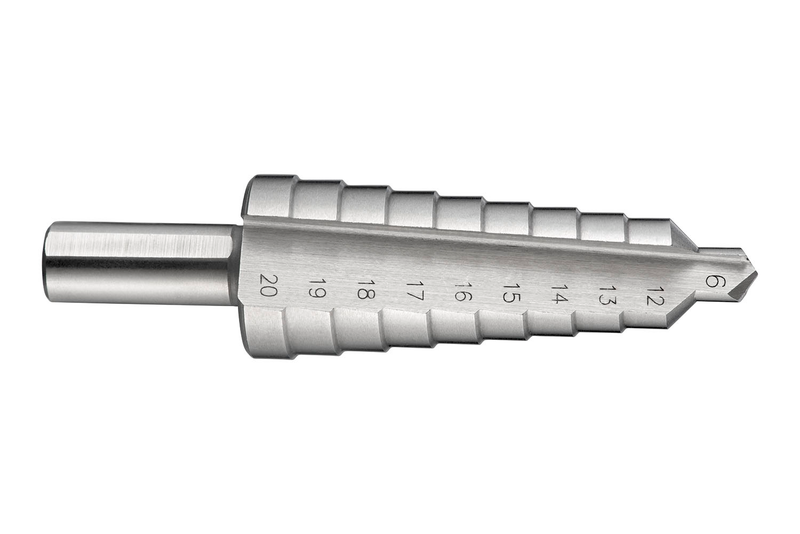

Foret étagé pour tôles, à diamètres multiples, plage de diamètres de 12,0 à 20 mm par paliers de 1,0 mm et queue droite de 9 mm, selon la norme DORMER, en HSS avec finition brillante standard pour l'usinage des aciers de décolletage, des alliages de cuivre ou de cuivre corroyé et des polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G3141220
GradeLumineux
Product Number5972732
Product FamilyG314

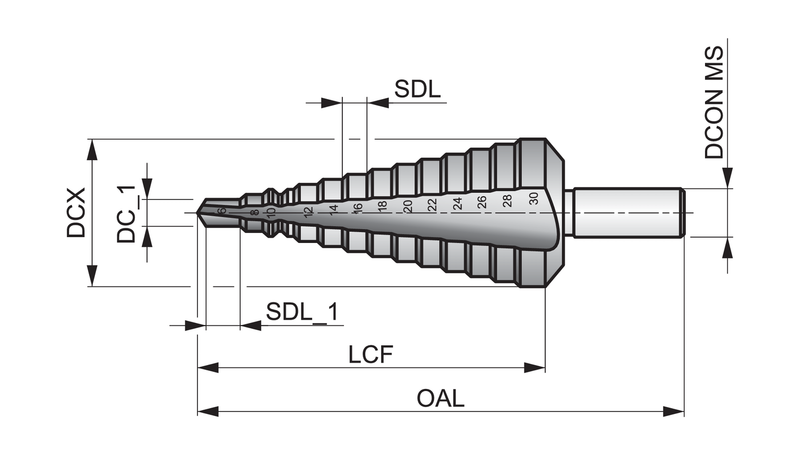

Dimensions
Overall Length — in (OAL)2.9921"
Overall Length — mm (OAL)76.0 mm
Flute Length — mm (LCF)55.0 mm
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number149423
EAN7320760149423
File Type Download
G3141220 — Line Drawing PDF Download
