G3143040
G3143040

G3143040

UGC DOR5972740
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$256.36 CAD - $256.36 CAD
$256.36 CAD
$256.36 CAD - $256.36 CAD
$256.36 CAD

Vendu en lots de : 1

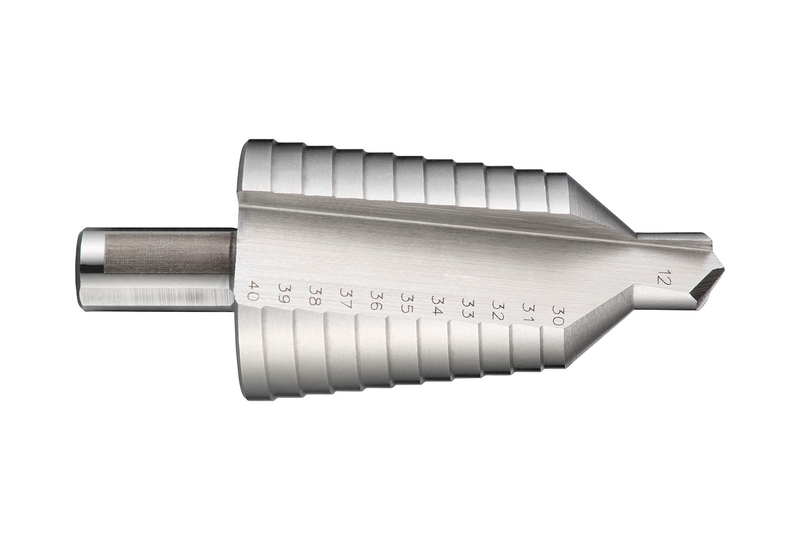

Foret étagé multi-diamètres pour tôle, plage de diamètres de 30,0 à 40 mm par pas de 1,0 mm et queue cylindrique de 13 mm, selon la norme DORMER, en HSS avec finition brillante standard pour l'usinage de l'acier de décolletage, du cuivre ou des alliages de cuivre corroyés et des polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G3143040
GradeLumineux
Product Number5972740
Product FamilyG314

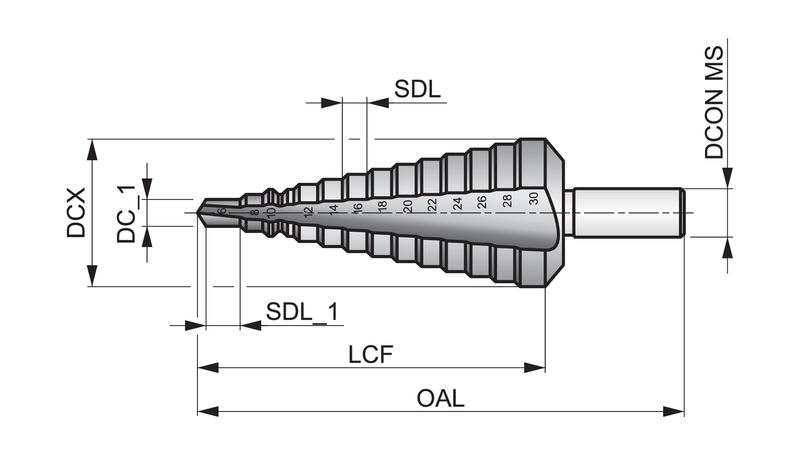

Dimensions
Overall Length — in (OAL)3.8583"
Overall Length — mm (OAL)98.0 mm
Flute Length — mm (LCF)74.0 mm
Connection Dia. — in (DCON)0.5118"
Connection Dia. — mm (DCON)13.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number149447
EAN7320760149447
File Type Download
G3143040 — Line Drawing PDF Download
