G314412
G314412

G314412

UGC DOR5972748
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.60 CAD - $66.60 CAD
$66.60 CAD
$66.60 CAD - $66.60 CAD
$66.60 CAD

Vendu en lots de : 1

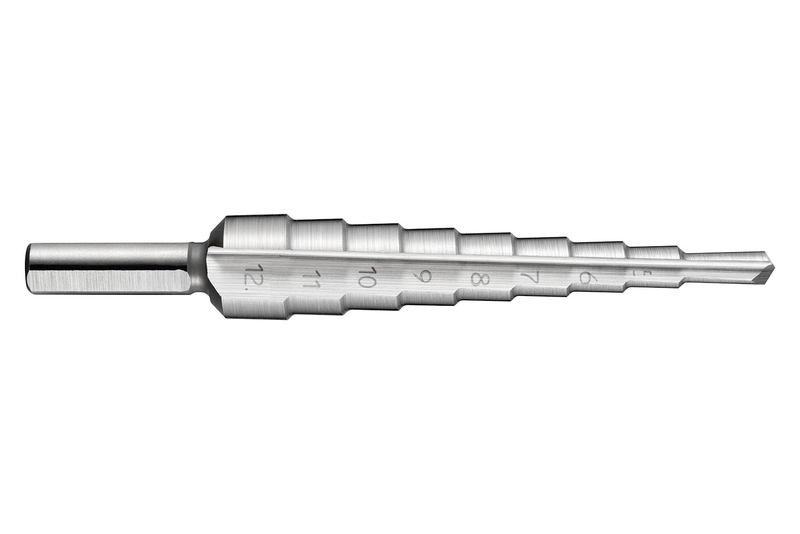

Foret étagé multi-diamètres pour tôle, plage de diamètres de 4,0 à 12 mm par pas de 1,0 mm et queue cylindrique de 6 mm, selon la norme DORMER, en HSS avec finition brillante standard pour l'usinage de l'acier de décolletage, du cuivre ou de ses alliages, et des polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G314412
GradeLumineux
Product Number5972748
Product FamilyG314
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Flute Length — mm (LCF)61.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number149416
EAN7320760149416
File Type Download

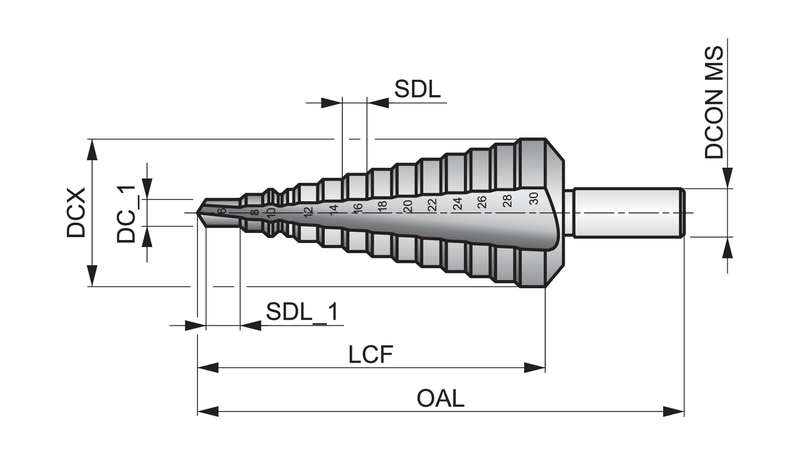

G314412 — Line Drawing PDF Download
