UGC DOR5972752
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$96.20 CAD - $96.20 CAD
$96.20 CAD
$96.20 CAD - $96.20 CAD
$96.20 CAD

Vendu en lots de : 1

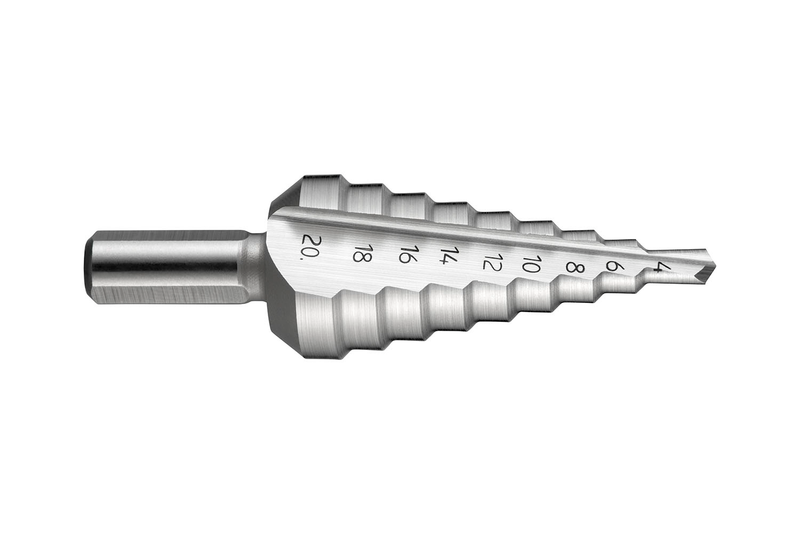

Foret étagé multi-diamètres pour tôle avec, plage de diamètres de 4,0 à 20 mm par paliers de 2,0 mm et queue cylindrique de 8 mm, selon la norme DORMER, HSS avec finition brillante standard pour l'usinage de l'acier de décolletage, du cuivre ou des alliages de cuivre et des polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G314420
GradeLumineux
Product Number5972752
Product FamilyG314
Dimensions
Overall Length — in (OAL)2.9921"
Overall Length — mm (OAL)76.0 mm
Flute Length — mm (LCF)48.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number149461
EAN7320760149461
File Type Download
G314420 — Line Drawing PDF Download
