G314630
G314630

G314630

UGC DOR5972755
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$142.19 CAD - $142.19 CAD
$142.19 CAD
$142.19 CAD - $142.19 CAD
$142.19 CAD

Vendu en lots de : 1

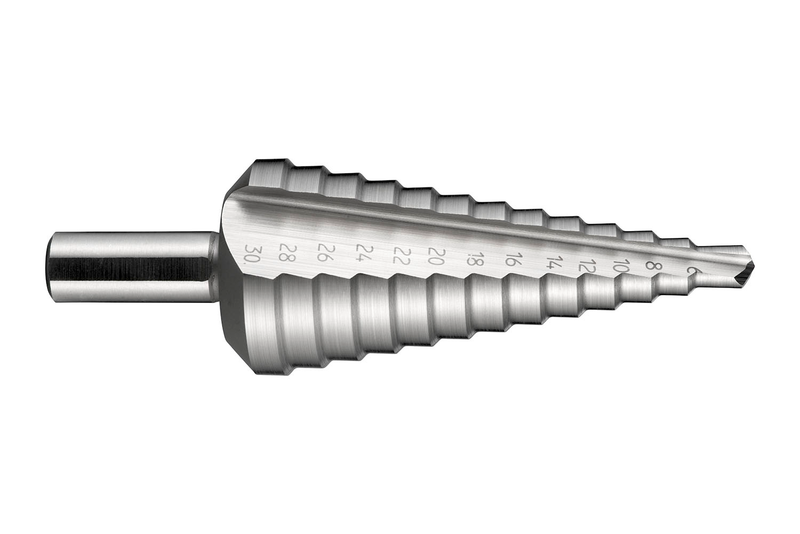

Foret étagé multi-diamètres pour tôle, plage de diamètres de 6,0 à 30 mm par pas de 2,0 mm et queue cylindrique de 10 mm, selon la norme DORMER, en HSS avec finition brillante standard pour l'usinage de l'acier de décolletage, du cuivre ou des alliages de cuivre corroyés et des polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G314630
GradeLumineux
Product Number5972755
Product FamilyG314
Dimensions
Overall Length — in (OAL)3.8583"
Overall Length — mm (OAL)98.0 mm
Flute Length — mm (LCF)73.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number149478
EAN7320760149478
File Type Download

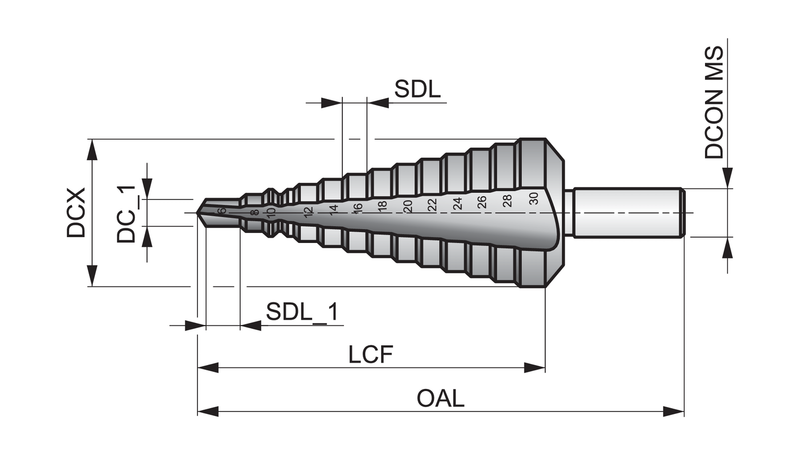

G314630 — Line Drawing PDF Download
