UGC DOR5972759
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.74 CAD - $49.74 CAD
$49.74 CAD
$49.74 CAD - $49.74 CAD
$49.74 CAD

Vendu en lots de : 1

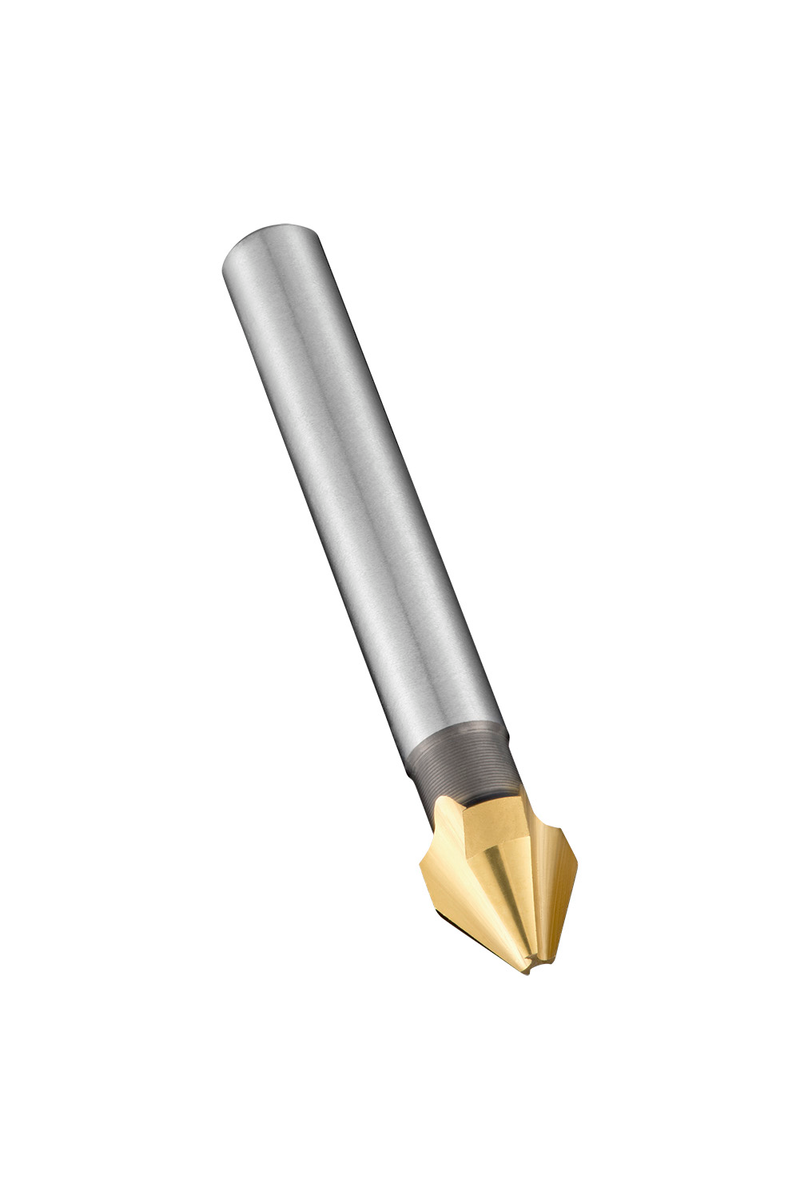

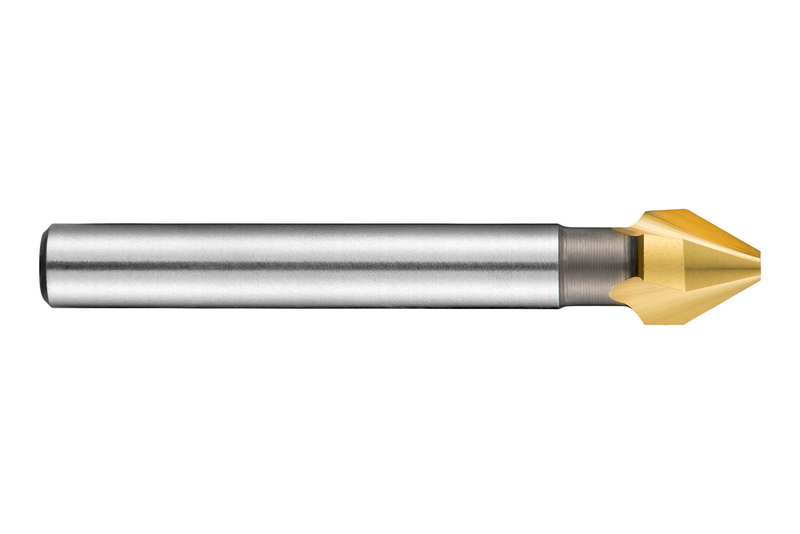

Fraise à chanfreiner à 3 lèvres, angle de chanfreinage de 60°, diamètre maximum de 10,00mm, longueur totale de 50mm, longueur de tête de 7,6mm et queue cylindrique de 6mm, selon la norme DIN 334 C, pour l'ébavurage et le chanfreinage de trous d'un diamètre minimum de 2,50mm, HSS avec revêtement TiN standard pour l'usinage de l'acier et de l'acier moulé, de la fonte grise, malléable, ductile et à graphite compacté, de l'aluminium corroyé et moulé, et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G33510.0
GradeTiN
Product Number5972759
Product FamilyG335

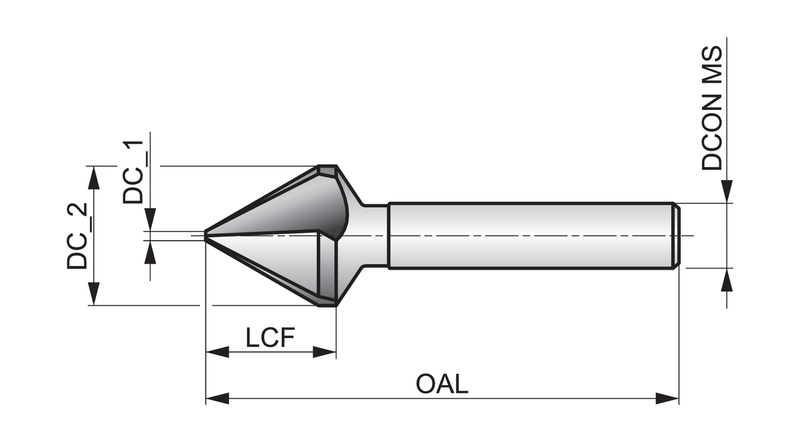

Dimensions
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Flute Length — mm (LCF)7.6 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

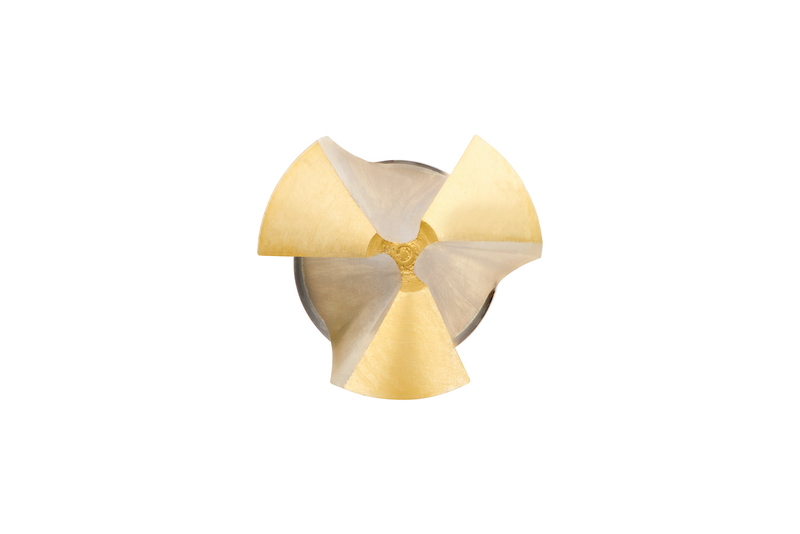

Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 334 C
Reference Numbers
EDP Number149560
EAN7320760149560
File Type Download
G33510.0 — Line Drawing PDF Download
