UGC DOR5972767
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$93.56 CAD - $93.56 CAD
$93.56 CAD
$93.56 CAD - $93.56 CAD
$93.56 CAD

Vendu en lots de : 1

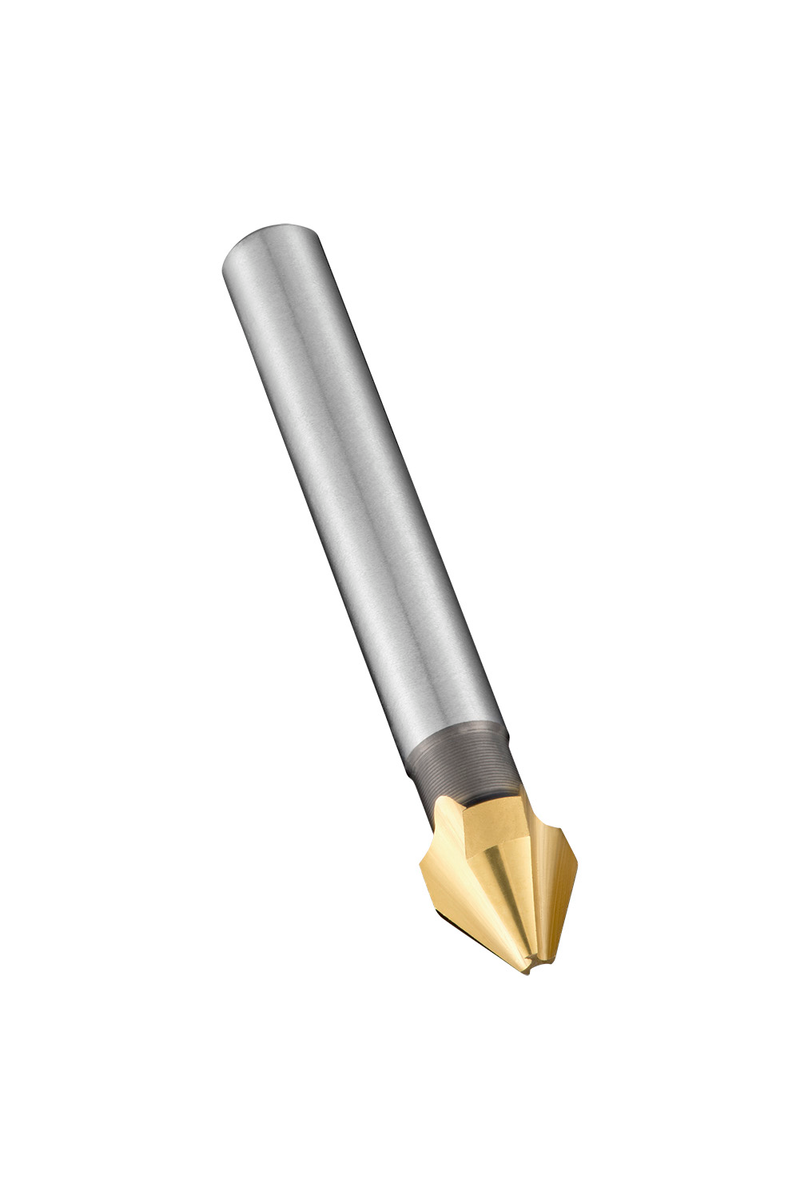

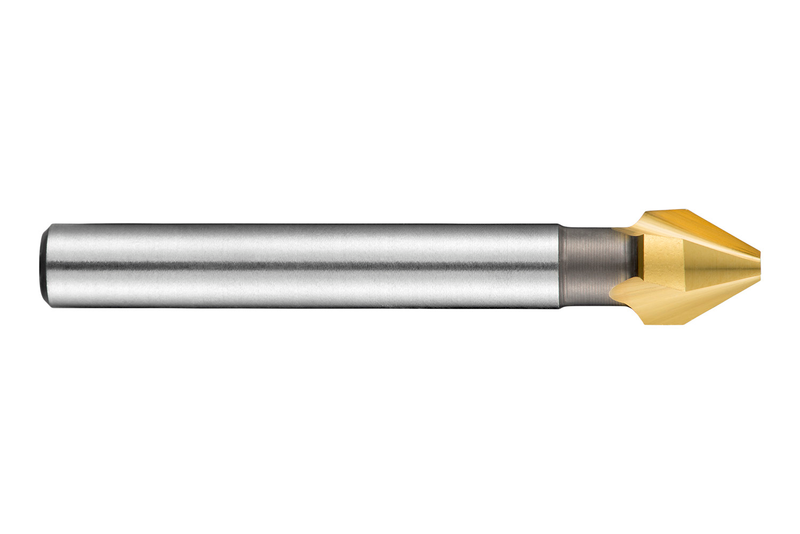

Fraise à chanfreiner et ébavurer 3 lèvres, angle de chanfreinage 60°, diamètre maximal 16,00 mm, longueur totale 63 mm, longueur de tête 14,5 mm et queue cylindrique 10 mm, selon la norme DIN 334 C pour l'ébavurage et le chanfreinage des trous d'un diamètre minimal de 4,00 mm, HSS avec revêtement TiN standard pour l'usinage de l'acier et de l'acier moulé, de la fonte grise, malléable, ductile et à graphite compacté, de l'aluminium forgé et moulé et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G33516.0
GradeTiN
Product Number5972767
Product FamilyG335

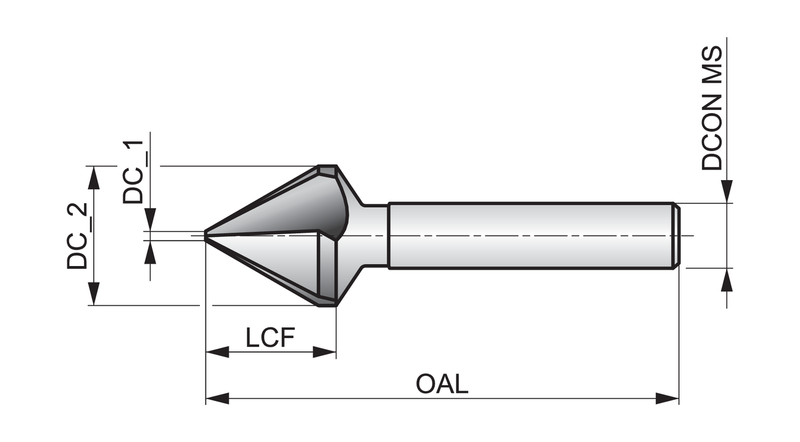

Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Flute Length — mm (LCF)14.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

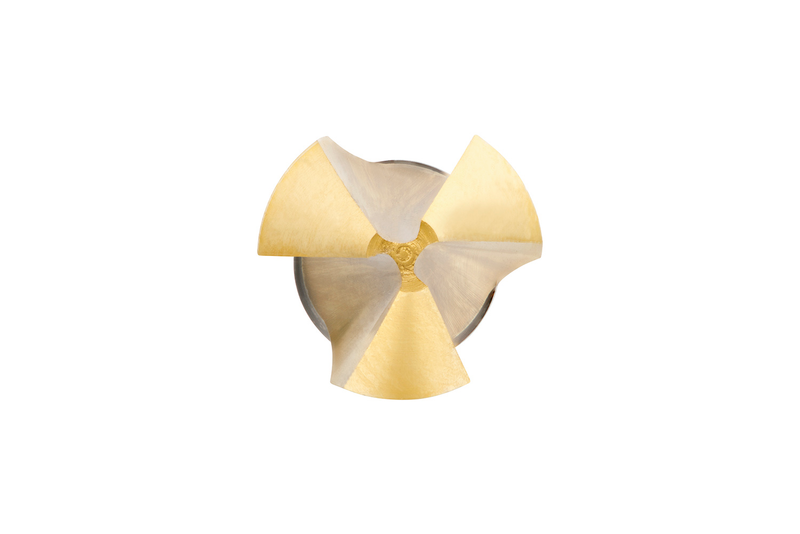

Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 334 C
Reference Numbers
EDP Number149584
EAN7320760149584
File Type Download
G33516.0 — Line Drawing PDF Download
