UGC DOR5972775
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$209.84 CAD - $209.84 CAD
$209.84 CAD
$209.84 CAD - $209.84 CAD
$209.84 CAD

Vendu en lots de : 1

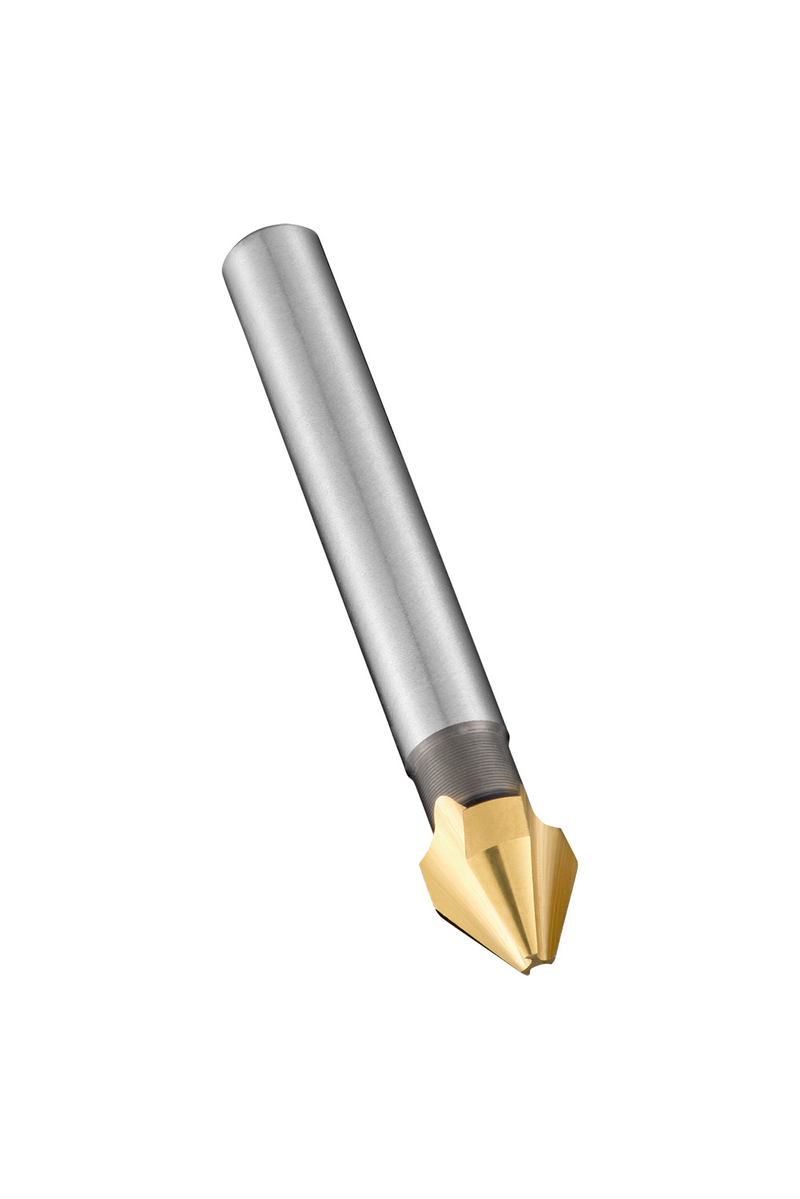

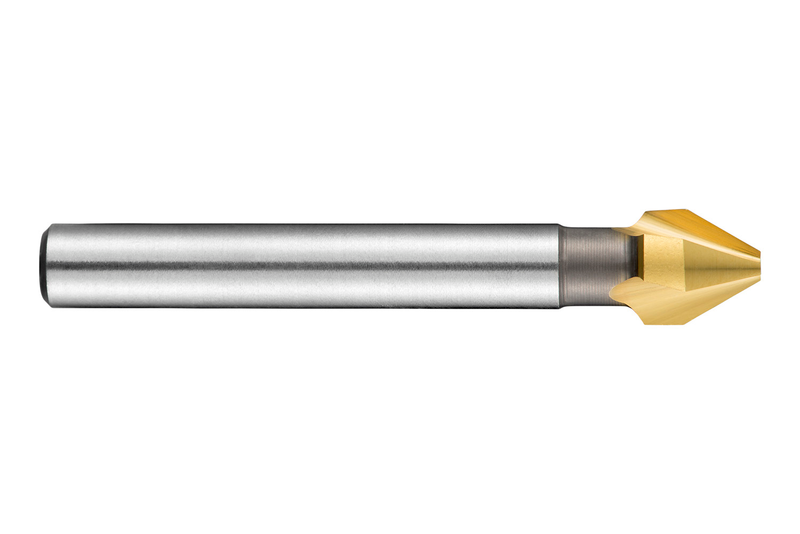

Fraise à chanfreiner à 3 lèvres, angle de chanfreinage de 60°, diamètre maximum de 25,00 mm avec une longueur totale de 71 mm et une longueur de tête de 20,5 mm et une queue cylindrique de 10 mm, selon la norme DIN 334 C pour l'ébavurage et le chanfreinage de trous d'un diamètre minimal de 6,30 mm, HSS avec revêtement TiN standard pour l'usinage de l'acier et de l'acier moulé, de la fonte grise, malléable, ductile et à graphite sphéroïdal, de l'aluminium forgé et moulé, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G33525.0
GradeTiN
Product Number5972775
Product FamilyG335

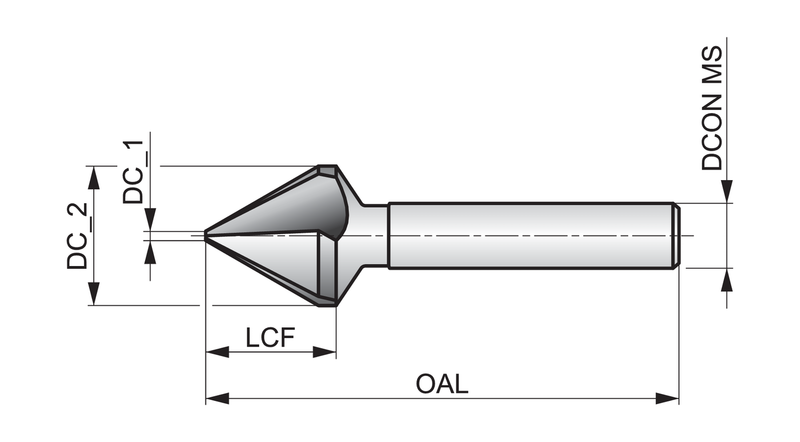

Dimensions
Overall Length — in (OAL)2.7953"
Overall Length — mm (OAL)71.0 mm
Flute Length — mm (LCF)20.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

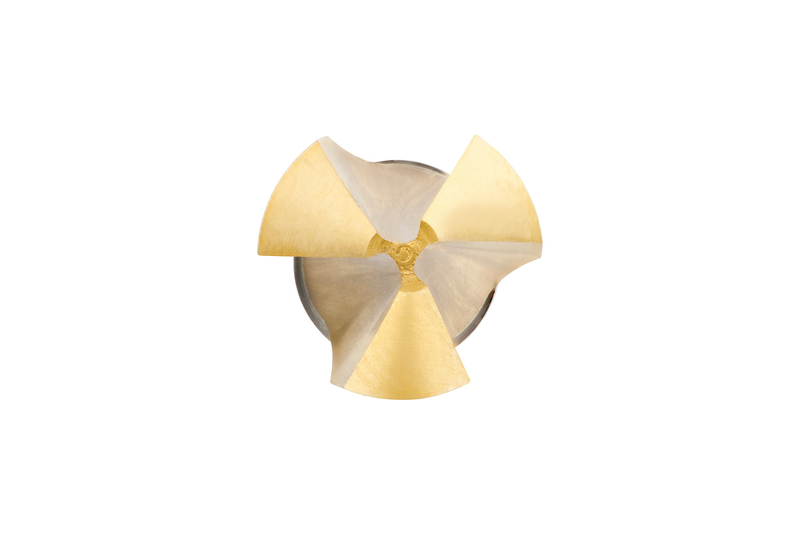

Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 334 C
Reference Numbers
EDP Number149607
EAN7320760149607
File Type Download
G33525.0 — Line Drawing PDF Download
