UGC DOR5972779
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.81 CAD - $41.81 CAD
$41.81 CAD
$41.81 CAD - $41.81 CAD
$41.81 CAD

Vendu en lots de : 1

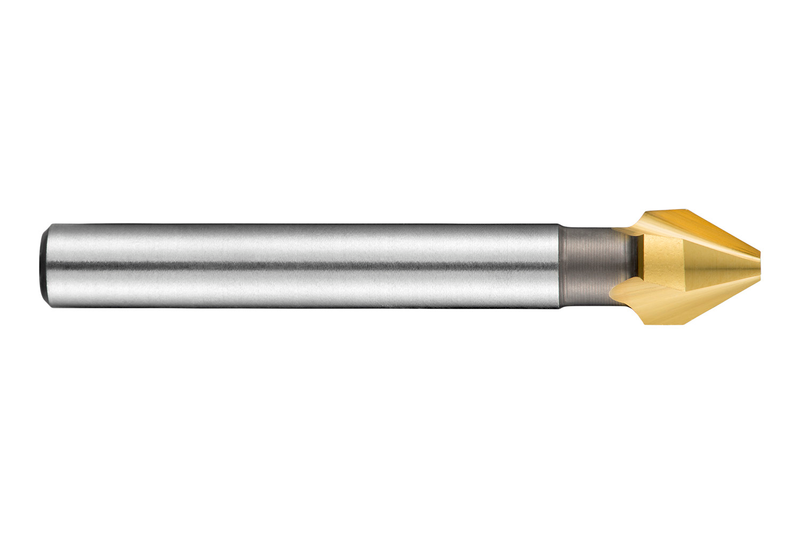

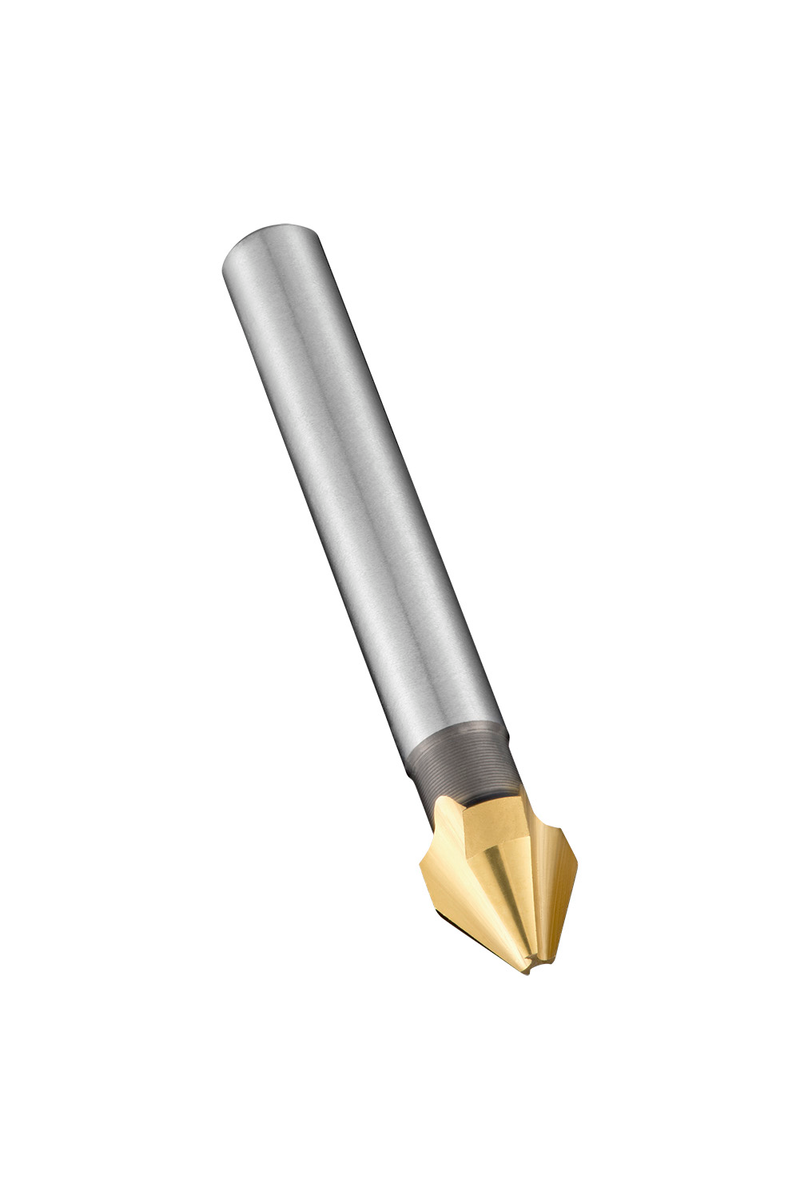

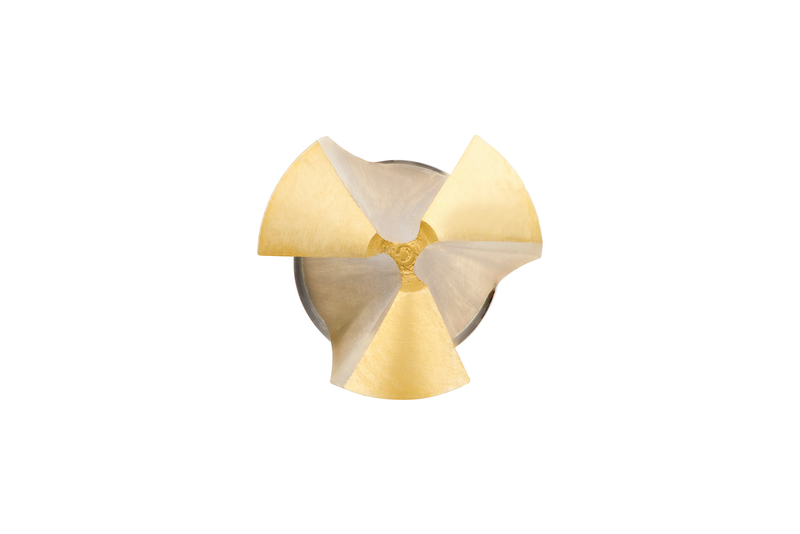

Fraise à chanfreiner à 3 dents, angle de chanfreinage de 60°, diamètre maximum 6,30 mm, longueur totale 45 mm, longueur de tête 6,8 mm et queue cylindrique de 5 mm, selon la norme DIN 334 C pour l'ébavurage et le chanfreinage de trous d'un diamètre minimum de 1,60 mm, en HSS avec revêtement TiN standard pour l'usinage de l'acier et de l'acier moulé, de la fonte grise, malléable, nodulaire et à graphite compacté, de l'aluminium et du cuivre ou des alliages de cuivre forgés et moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G3356.3
GradeTiN
Product Number5972779
Product FamilyG335

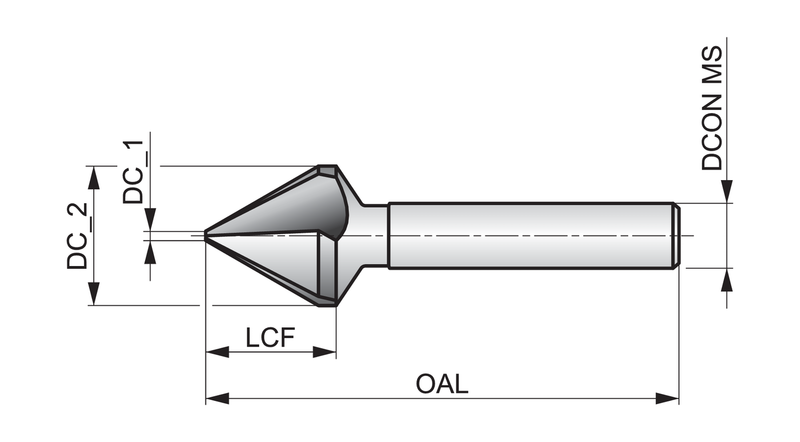

Dimensions
Overall Length — in (OAL)1.7717"
Overall Length — mm (OAL)45.0 mm
Flute Length — mm (LCF)6.8 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 334 C
Reference Numbers
EDP Number149546
EAN7320760149546
File Type Download
G3356.3 — Line Drawing PDF Download
