A9408.7
A9408.7
A9408.7
A9408.7

A9408.7

UGC DOR5972974
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.10 CAD - $87.10 CAD
$87.10 CAD
$87.10 CAD - $87.10 CAD
$87.10 CAD

Vendu en lots de : 1

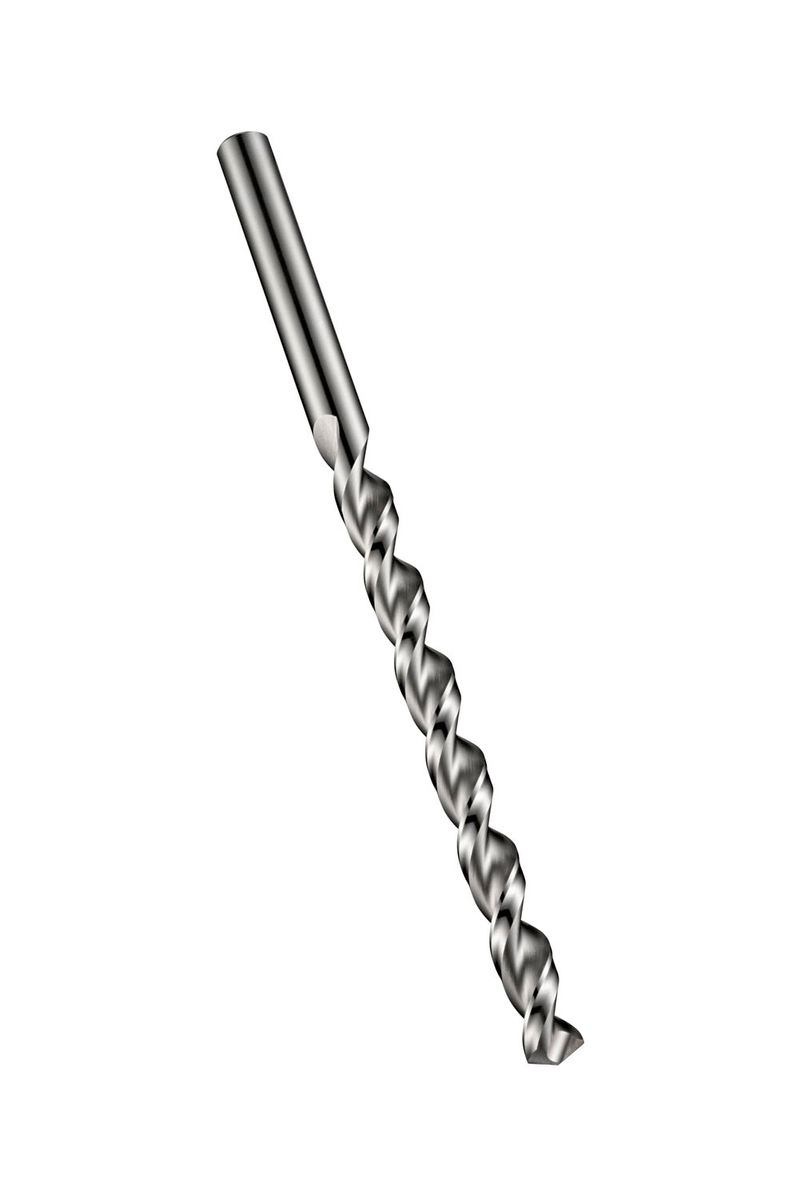

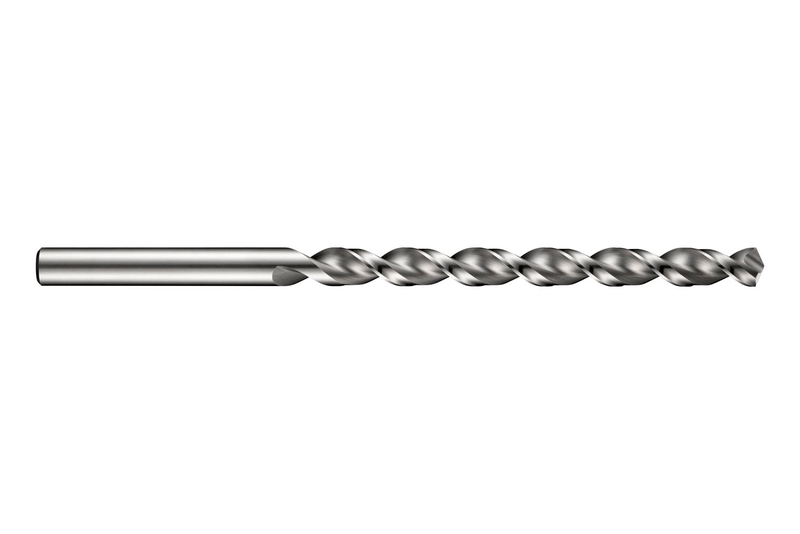

Foret PFX série longue à queue cylindrique, diamètre 8,7mm, longueur totale 175mm et longueur utile 115mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E cobalt avec finition brillante, hélice rapide et âme parabolique pour perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9408.7
GradeLumineux
Product Number5972974
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.3425"
Cutting Diameter — mm (DC)8.7 mm
Overall Length — in (OAL)6.8898"
Overall Length — mm (OAL)175.0 mm
Flute Length — in (LCF)4.5276"
Flute Length — mm (LCF)115.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.3425"
Connection Dia. — mm (DCON)8.7 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number58572
EAN7320760058572
File Type Download
A9408.7 — 3D Model STP Download
A9408.7 — Line Drawing PDF Download
