A94012.0
A94012.0
A94012.0
A94012.0

A94012.0

UGC DOR5972994
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$120.71 CAD - $120.71 CAD
$120.71 CAD
$120.71 CAD - $120.71 CAD
$120.71 CAD

Vendu en lots de : 1

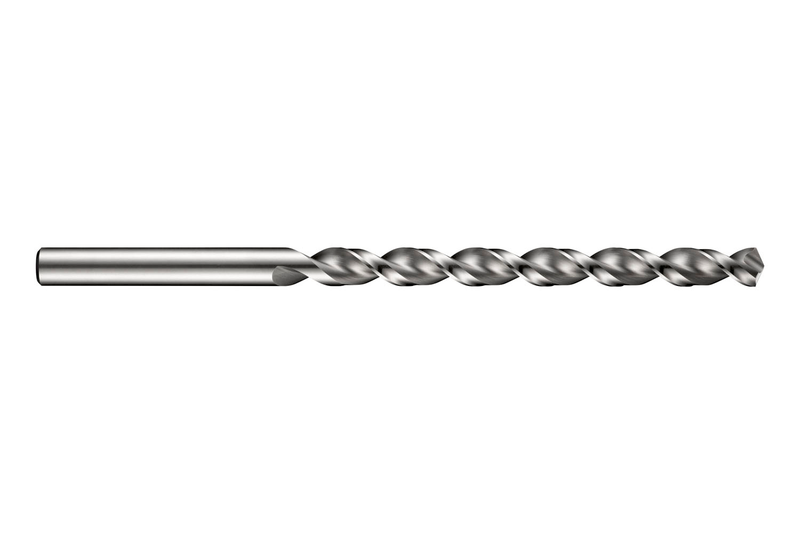

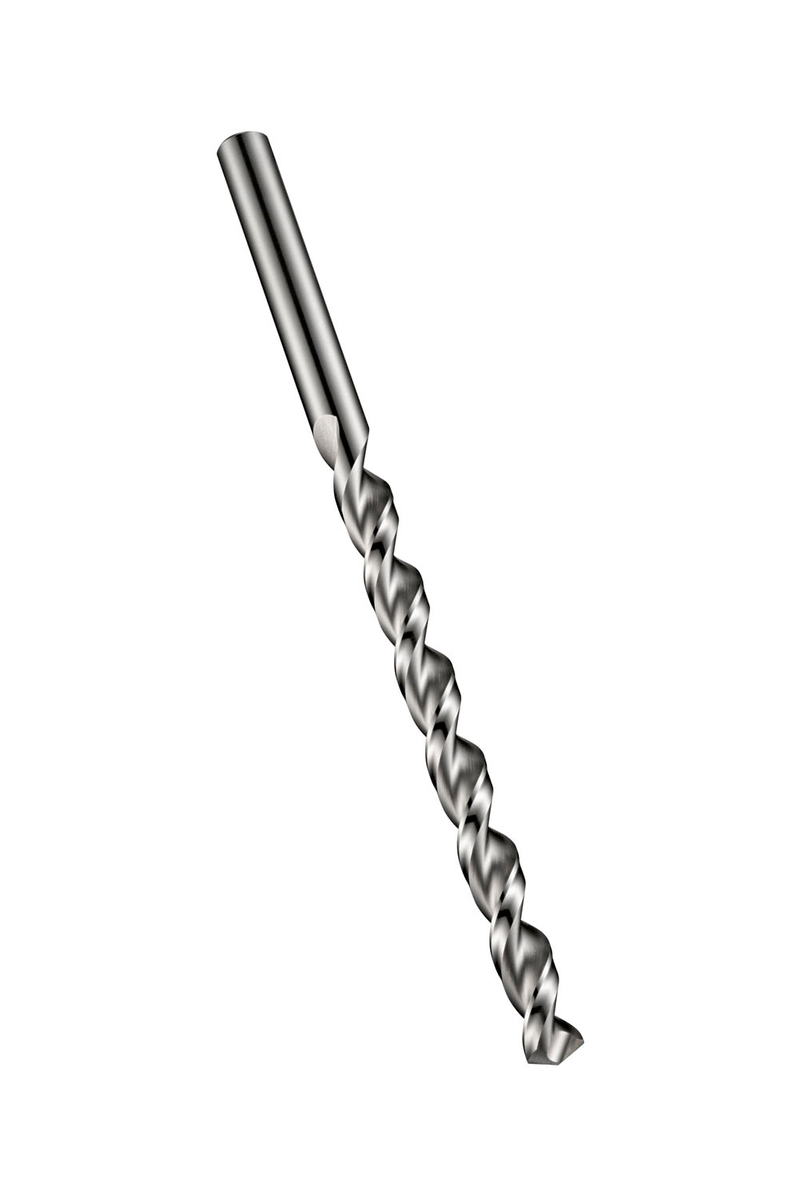

Foret PFX série longue à queue cylindrique, diamètre 12mm avec une longueur totale de 205mm et une longueur de coupe de 134mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E cobalt avec finition brillante, hélice rapide et âme parabolique pour un perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A94012.0
GradeLumineux
Product Number5972994
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)8.0709"
Overall Length — mm (OAL)205.0 mm
Flute Length — in (LCF)5.2756"
Flute Length — mm (LCF)134.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number58923
EAN7320760058923
File Type Download
A94012.0 — 3D Model STP Download
A94012.0 — Line Drawing PDF Download
