UGC DOR5972998
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$157.86 CAD - $157.86 CAD
$157.86 CAD
$157.86 CAD - $157.86 CAD
$157.86 CAD

Vendu en lots de : 1

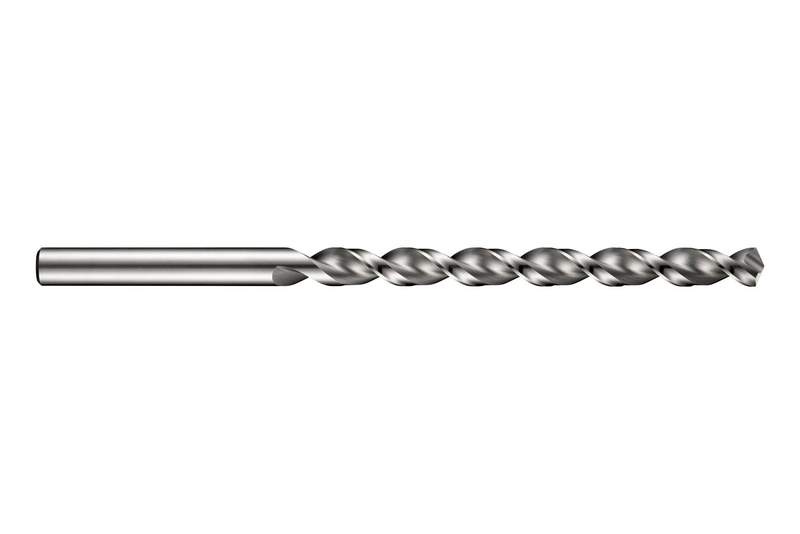

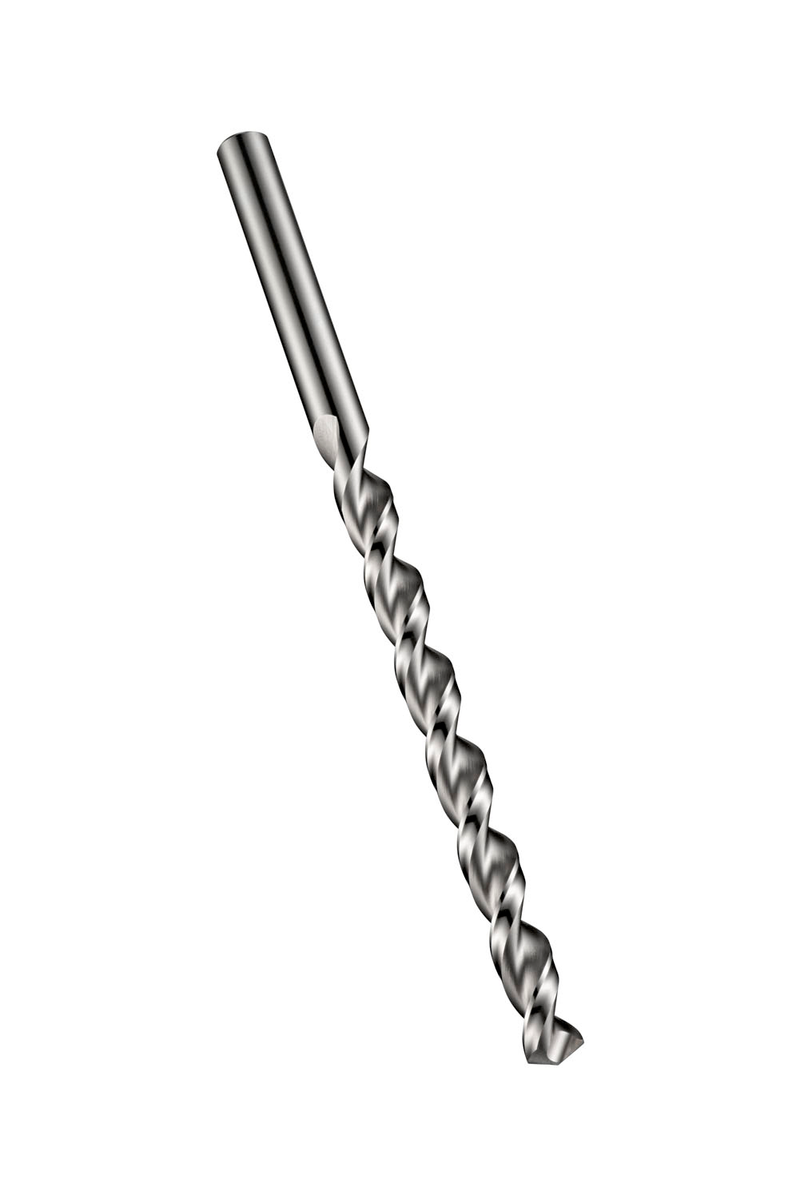

Forets PFX série longue à queue cylindrique, diamètre 12,2 mm, longueur totale 205 mm et longueur utile 134 mm selon la norme DIN/ANSI avec un angle de pointe de 130°, HSS-E à base de cobalt avec finition brillante, hélice rapide et âme parabolique pour le perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A94012.2
GradeLumineux
Product Number5972998
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.4803"
Cutting Diameter — mm (DC)12.2 mm
Overall Length — in (OAL)8.0709"
Overall Length — mm (OAL)205.0 mm
Flute Length — in (LCF)5.2756"
Flute Length — mm (LCF)134.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.4803"
Connection Dia. — mm (DCON)12.2 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number58930
EAN7320760058930
File Type Download
A94012.2 — 3D Model STP Download
A94012.2 — Line Drawing PDF Download
