A94015.0
A94015.0
A94015.0
A94015.0

A94015.0

UGC DOR5973037
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$242.36 CAD - $242.36 CAD
$242.36 CAD
$242.36 CAD - $242.36 CAD
$242.36 CAD

Vendu en lots de : 1

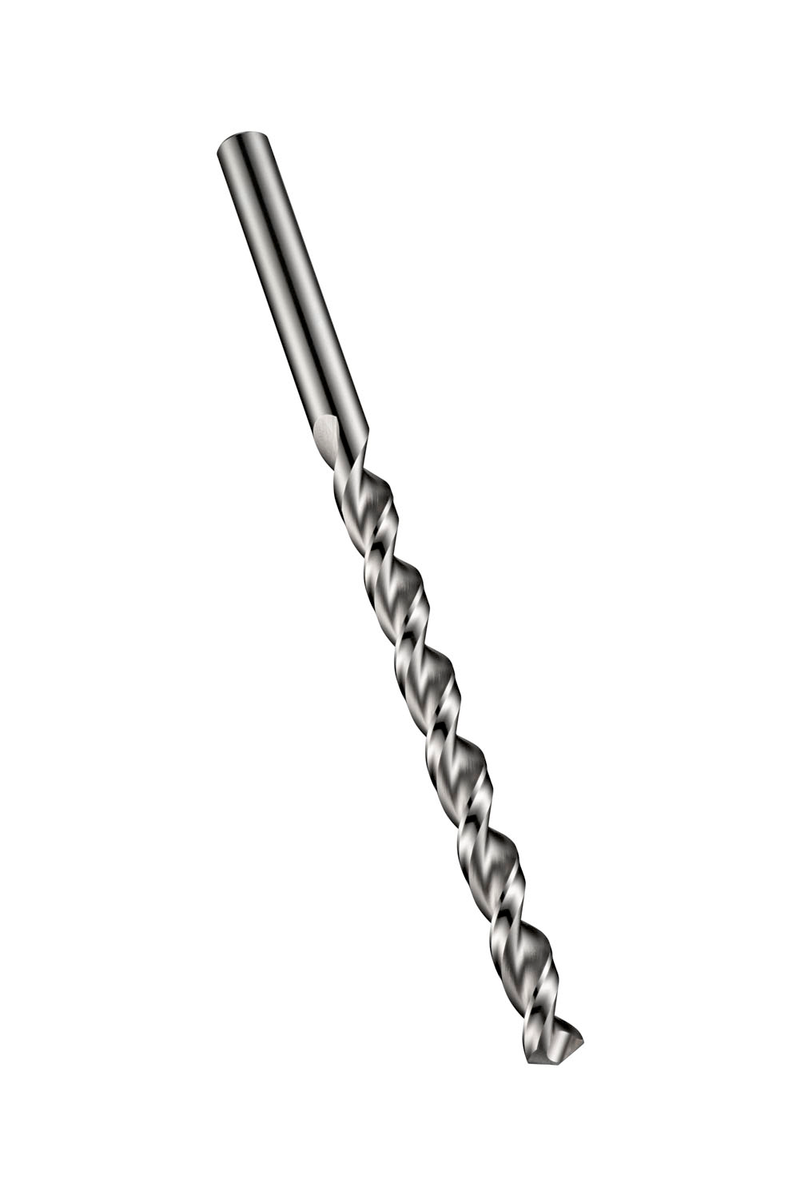

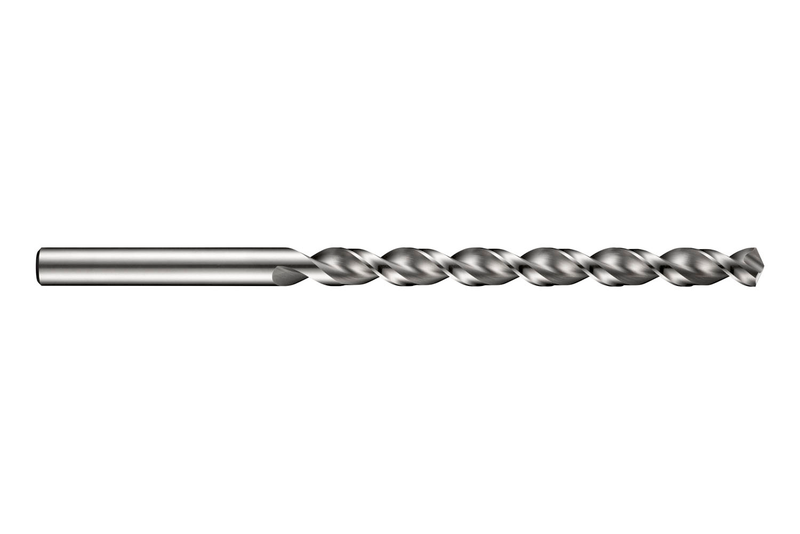

Foret PFX série longue avec queue cylindrique, diamètre 15mm avec une longueur totale de 220mm et une longueur de coupe de 144mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, hélice rapide et âme parabolique pour perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A94015.0
GradeLumineux
Product Number5973037
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.5906"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)8.6614"
Overall Length — mm (OAL)220.0 mm
Flute Length — in (LCF)5.6693"
Flute Length — mm (LCF)144.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.5906"
Connection Dia. — mm (DCON)15.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number59180
EAN7320760059180
File Type Download
A94015.0 — 3D Model STP Download
A94015.0 — Line Drawing PDF Download
