A94017/32
A94017/32
A94017/32
A94017/32

A94017/32

UGC DOR5973057
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$174.57 CAD - $174.57 CAD
$174.57 CAD
$174.57 CAD - $174.57 CAD
$174.57 CAD

Vendu en lots de : 1

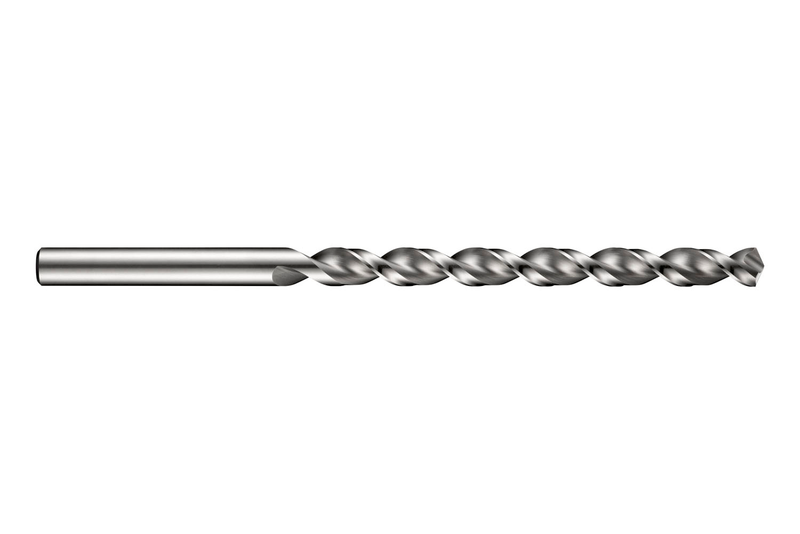

Foret PFX série longue avec queue cylindrique, diamètre 0,5313" (17/32) avec une longueur totale de 203mm et une longueur de coupe de 121mm selon la norme DIN/ANSI avec un angle de pointe de 130°, HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour un perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A94017/32
GradeLumineux
Product Number5973057
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.5313"
Cutting Diameter — mm (DC)13.49 mm
Cutting Diameter — Fractional17/32
Overall Length — in (OAL)7.9921"
Overall Length — mm (OAL)203.0 mm
Flute Length — in (LCF)4.7638"
Flute Length — mm (LCF)121.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.5311"
Connection Dia. — mm (DCON)13.49 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number59050
EAN7320760059050
File Type Download
A94017/32 — 3D Model STP Download
A94017/32 — Line Drawing PDF Download
