G13825.0
G13825.0
G13825.0
G13825.0

G13825.0

UGC DOR5973066
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$158.04 CAD - $158.04 CAD
$158.04 CAD
$158.04 CAD - $158.04 CAD
$158.04 CAD

Vendu en lots de : 1

Mèche à chambrer à 3 dents, angle de chanfreinage 90°, diamètre maximal 25,00mm, longueur totale 106mm, longueur de tête 15,5mm et cône Morse MT 2, selon la norme DIN 335 D pour la production d'un logement conique pour vis à tête fraisée ISO métriques avec un diamètre de trou minimal de 3,80mm, en HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone non alliés, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13825.0
GradeLumineux
Product Number5973066
Product FamilyG138
Dimensions
Overall Length — in (OAL)4.1732"
Overall Length — mm (OAL)106.0 mm
Flute Length — mm (LCF)15.5 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 335 D
Reference Numbers
EDP Number108895
EAN7320760108895
File Type Download

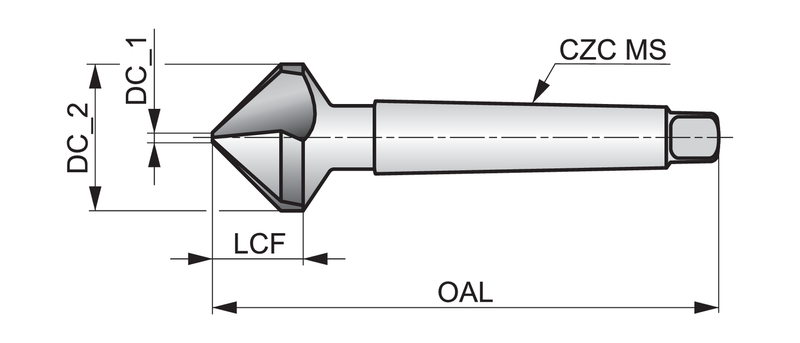

G13825.0 — Line Drawing PDF Download
