G13834.0
G13834.0
G13834.0
G13834.0

G13834.0

UGC DOR5973071
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$269.04 CAD - $269.04 CAD
$269.04 CAD
$269.04 CAD - $269.04 CAD
$269.04 CAD

Vendu en lots de : 1

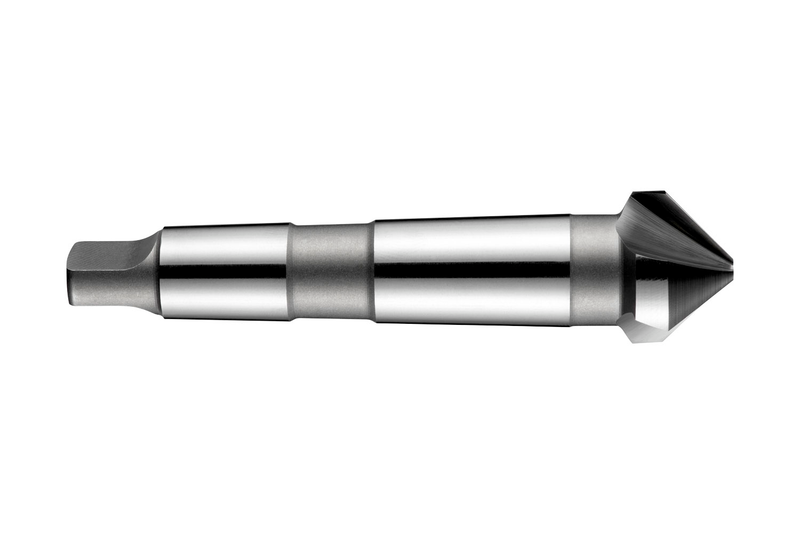

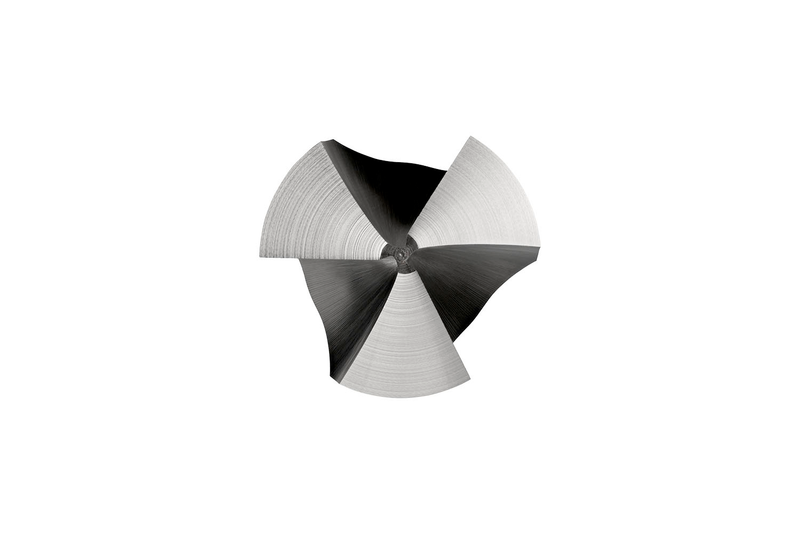

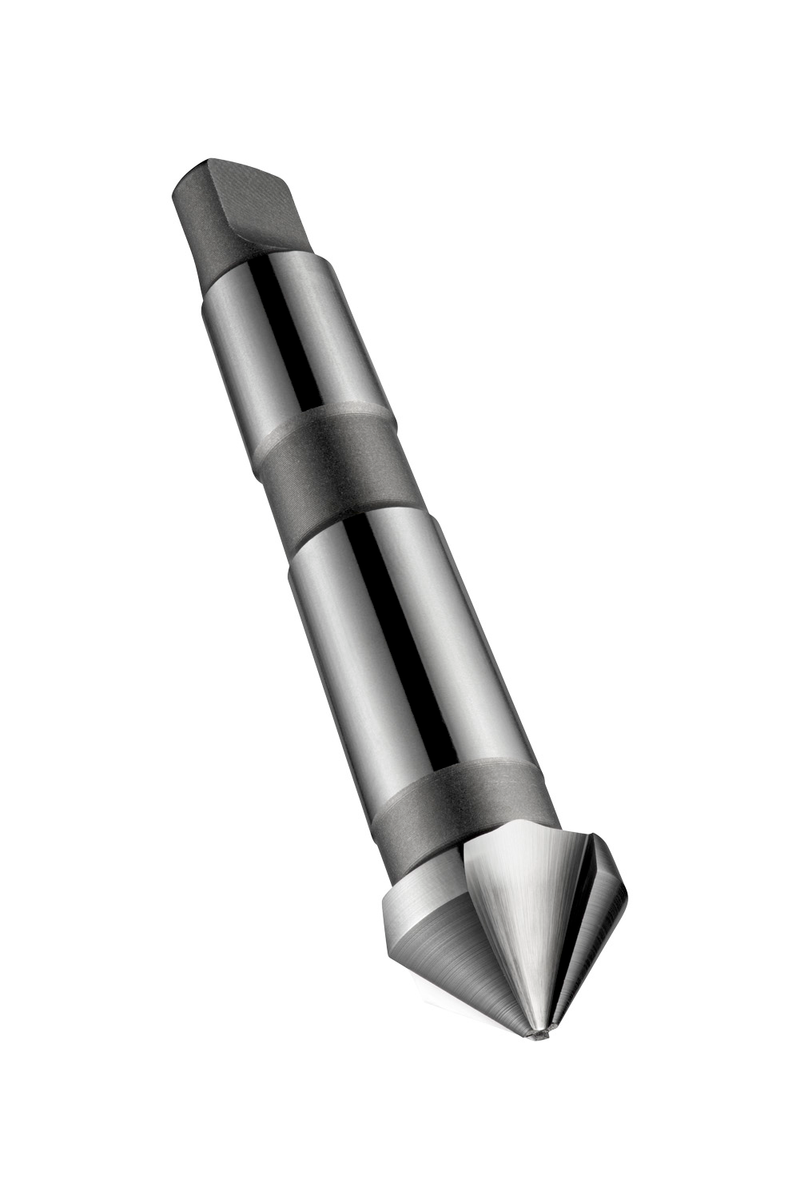

Mèche à chambrer à 3 dents, angle de chambrage 90°, diamètre maximal de 34,00 mm, longueur totale de 118 mm, longueur de tête de 19,5 mm et queue conique Morse MT 2, conforme à la norme DIN 335 D pour la réalisation d'un logement conique pour vis à tête fraisée ISO métrique avec un diamètre de trou minimal de 4,50 mm, en acier rapide HSS avec finition brillante standard pour l'usinage d'acier à usinage libre et d'acier au carbone non allié, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13834.0
GradeLumineux
Product Number5973071
Product FamilyG138

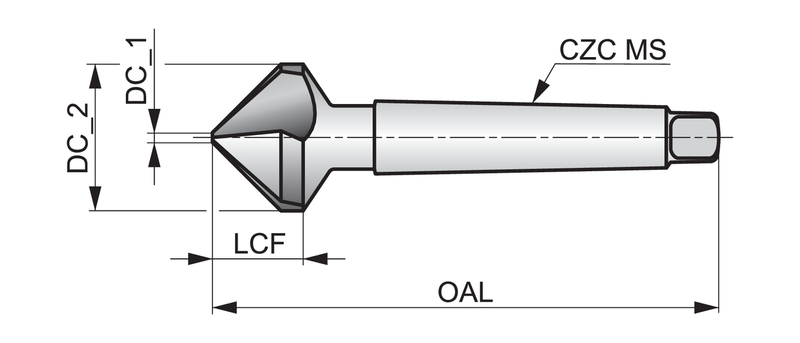

Dimensions
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Flute Length — mm (LCF)19.5 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 335 D
Reference Numbers
EDP Number108949
EAN7320760108949
File Type Download
G13834.0 — Line Drawing PDF Download
