G13840.0
G13840.0
G13840.0
G13840.0

G13840.0

UGC DOR5973074
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$378.99 CAD - $378.99 CAD
$378.99 CAD
$378.99 CAD - $378.99 CAD
$378.99 CAD

Vendu en lots de : 1

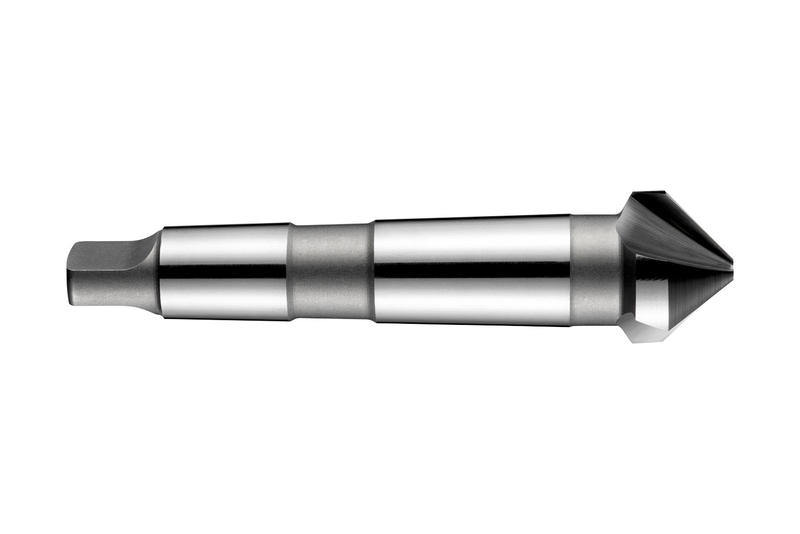

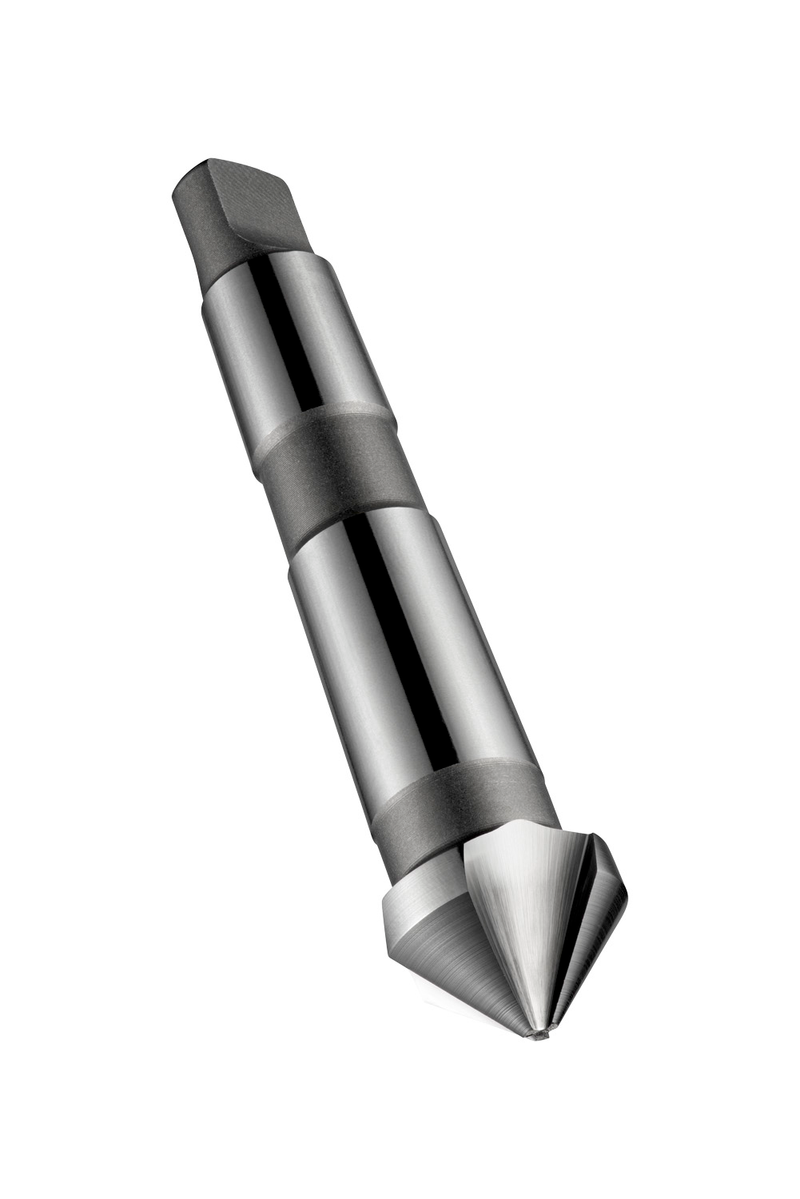

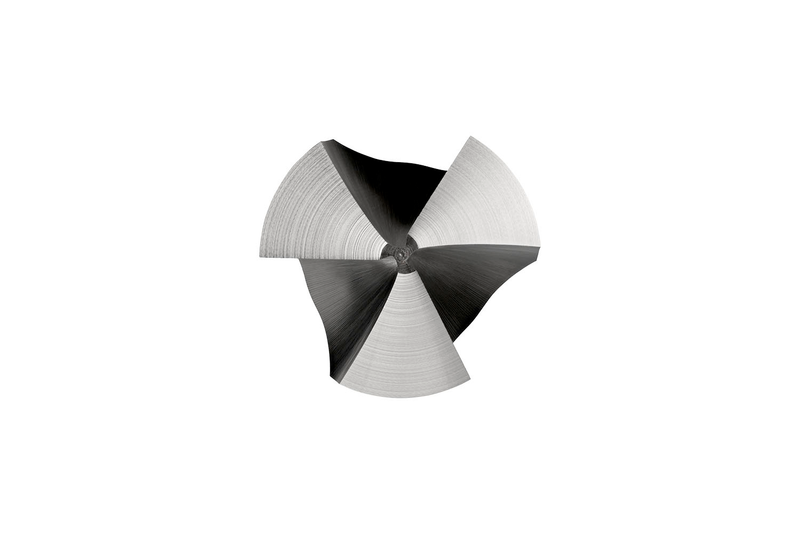

Fraise à chanfreiner 3 tailles, angle de chanfreinage 90°, diamètre maximal 40,00mm, longueur totale 140mm, longueur de tête 20,5mm et cône Morse CM 3, conforme à la norme DIN 335 D pour réaliser un logement conique pour vis à tête fraisée ISO métriques avec un diamètre de perçage minimal de 10,00mm, en HSS, finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone non alliés, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13840.0
GradeLumineux
Product Number5973074
Product FamilyG138
Dimensions
Overall Length — in (OAL)5.5118"
Overall Length — mm (OAL)140.0 mm
Flute Length — mm (LCF)20.5 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 335 D
Reference Numbers
EDP Number108963
EAN7320760108963
File Type Download

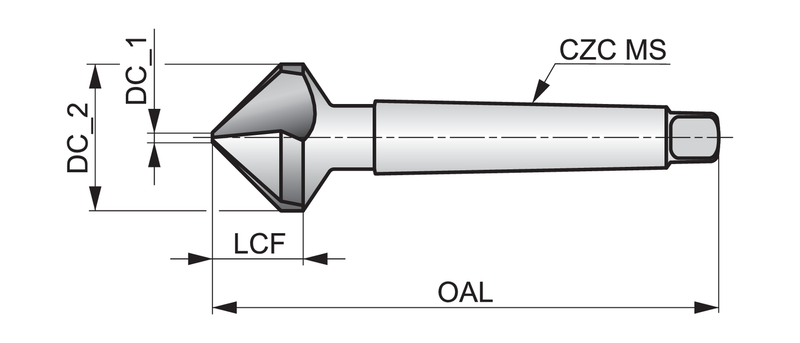

G13840.0 — Line Drawing PDF Download
