UGC DOR5973099
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$282.26 CAD - $282.26 CAD
$282.26 CAD
$282.26 CAD - $282.26 CAD
$282.26 CAD

Vendu en lots de : 1

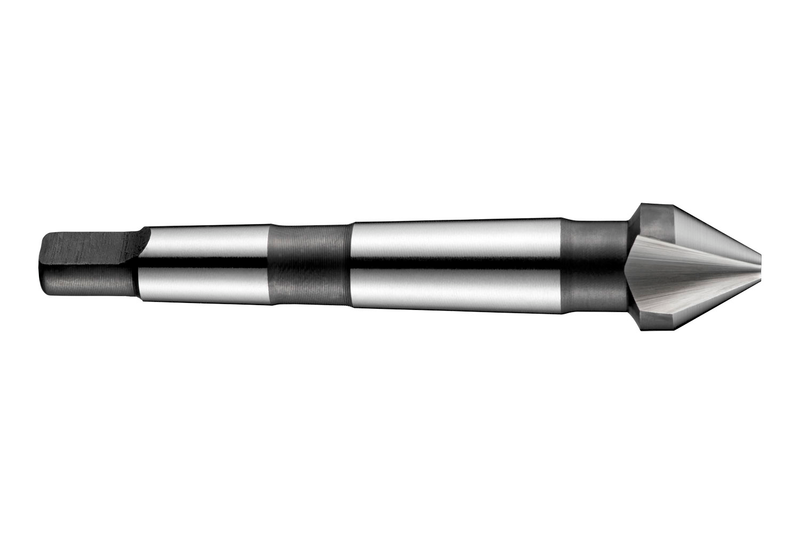

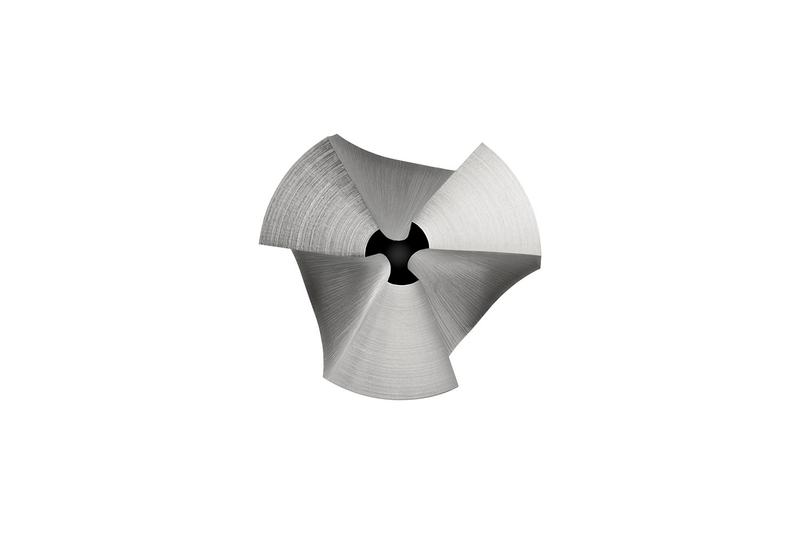

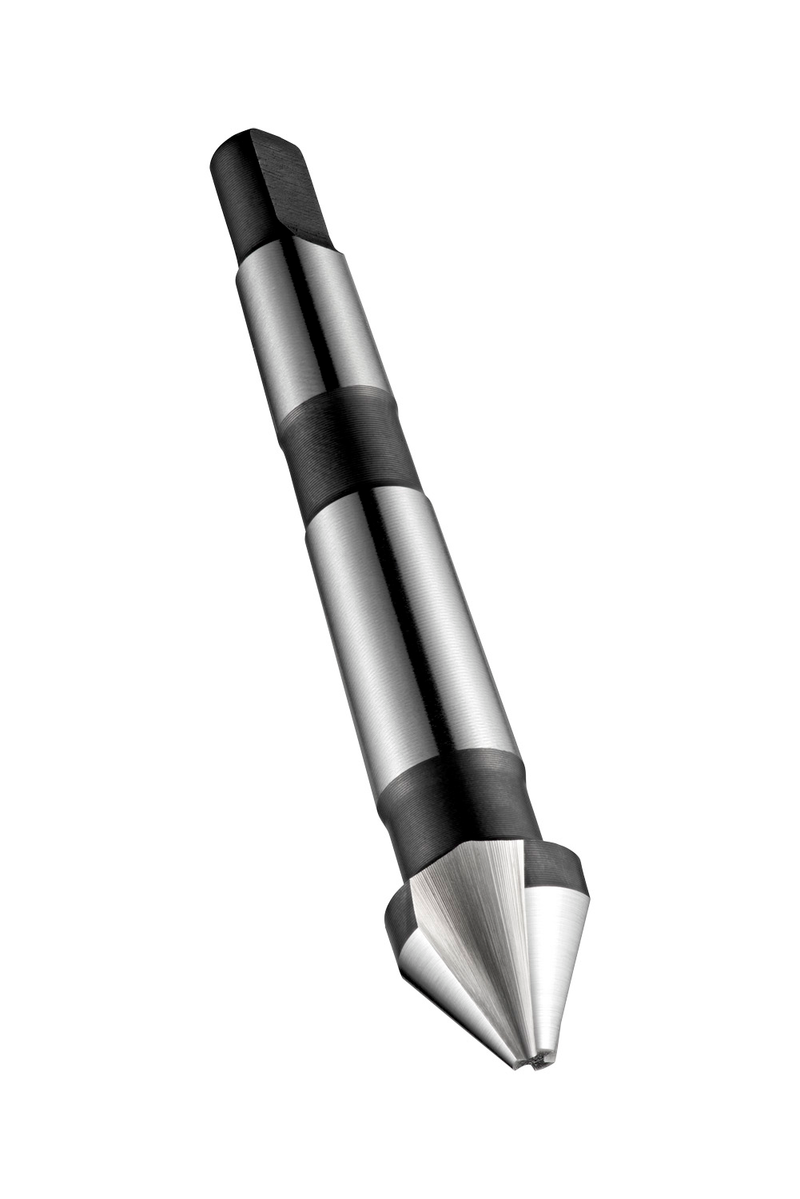

Noyau à 3 dents, angle de chanfreinage de 60°, diamètre maximal de 31,50 mm avec une longueur totale de 118 mm et une longueur de tête de 23 mm et un manche conique MT 2 selon la norme DIN 334 D pour l'ébavurage et le chanfreinage de trous avec un diamètre de trou minimum de 10,00 mm, HSS avec finition brillante standard pour l'usinage de l'acier à usinage libre et de l'acier au carbone ordinaire, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13731.5
GradeLumineux
Product Number5973099
Product FamilyG137
Dimensions
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Flute Length — mm (LCF)23.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 334 J
Reference Numbers
EDP Number108796
EAN7320760108796
File Type Download

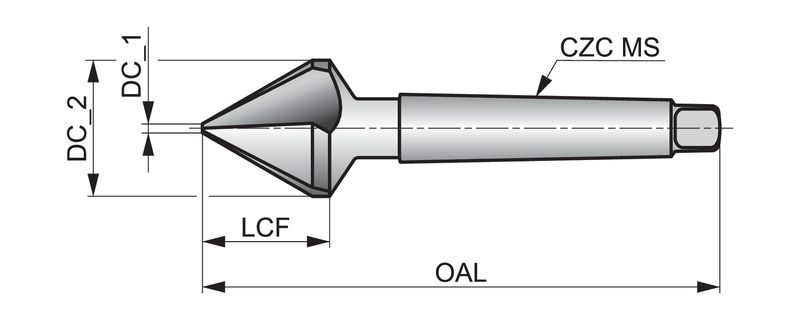

G13731.5 — Line Drawing PDF Download
