UGC DOR5973105
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.50 CAD - $55.50 CAD
$55.50 CAD
$55.50 CAD - $55.50 CAD
$55.50 CAD

Vendu en lots de : 1

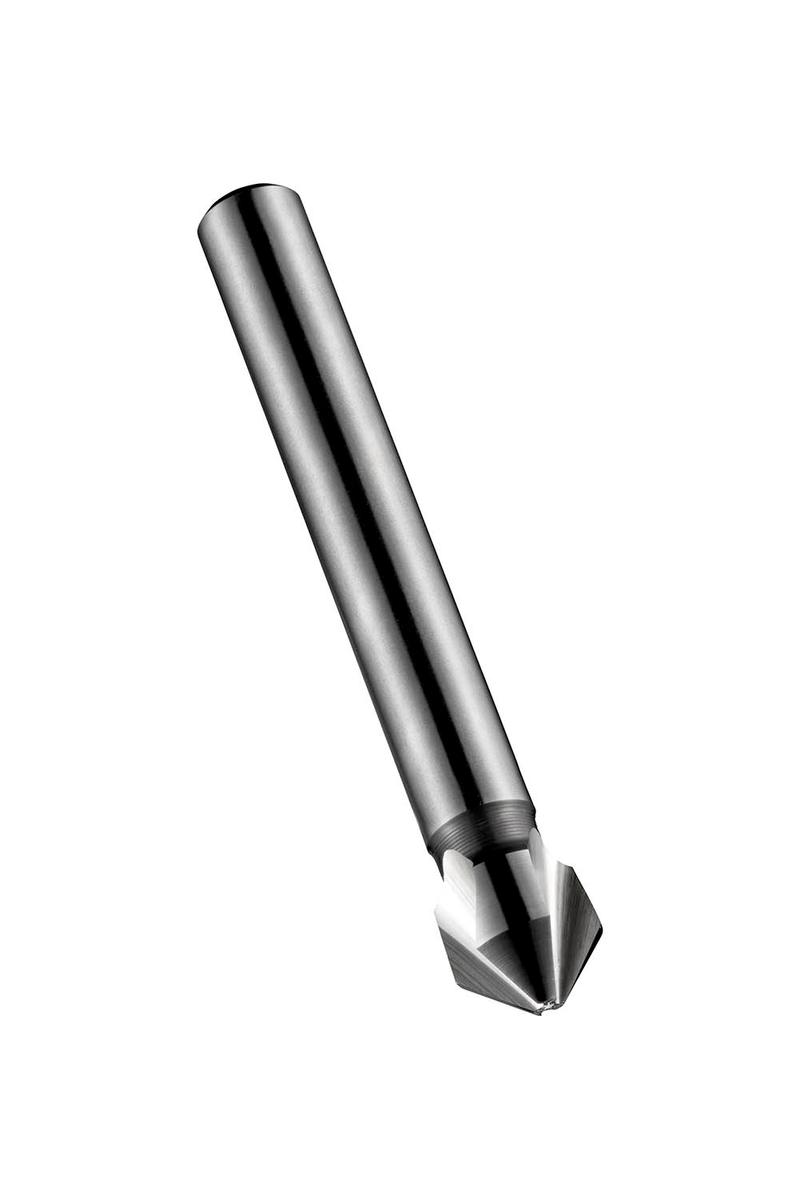

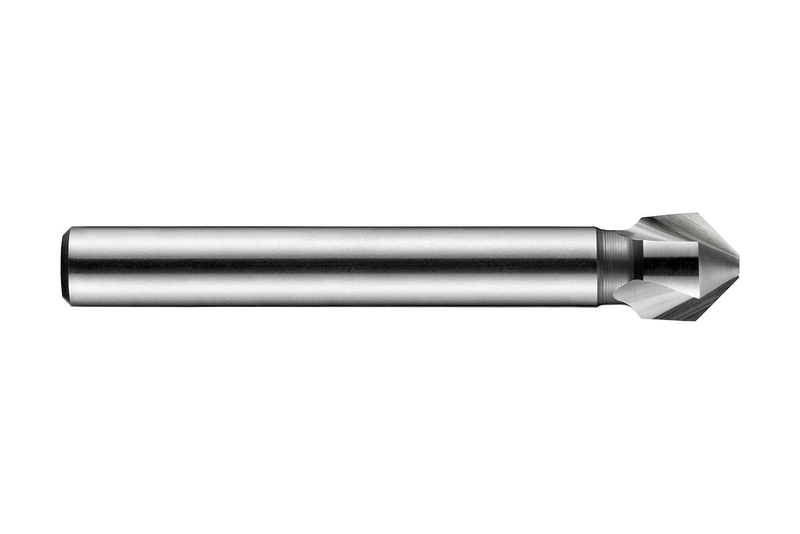

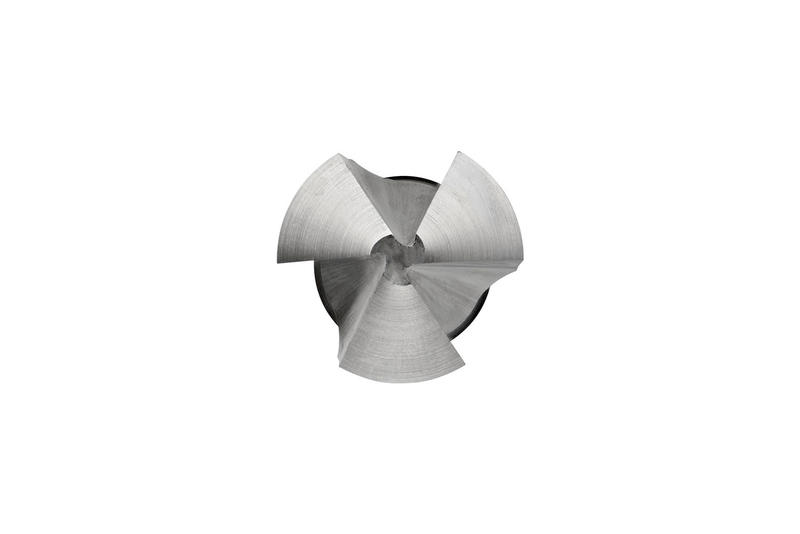

Fraise à chanfreiner, 3 arêtes de coupe, angle de chanfrein de 90°, diamètre maximum de 15,00mm, longueur totale de 60mm, longueur de tête de 9,5mm et queue cylindrique de 10mm, selon la norme DIN 335 C pour la réalisation d'un logement conique pour vis métriques à tête fraisée ISO avec un diamètre de trou minimum de 3,20mm, en HSS avec finition brillante standard pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés, aciers inoxydables ferritiques, aciers corroyés et cuivres ou alliages de cuivre et polymères

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G14215.0
GradeLumineux
Product Number5973105
Product FamilyG142

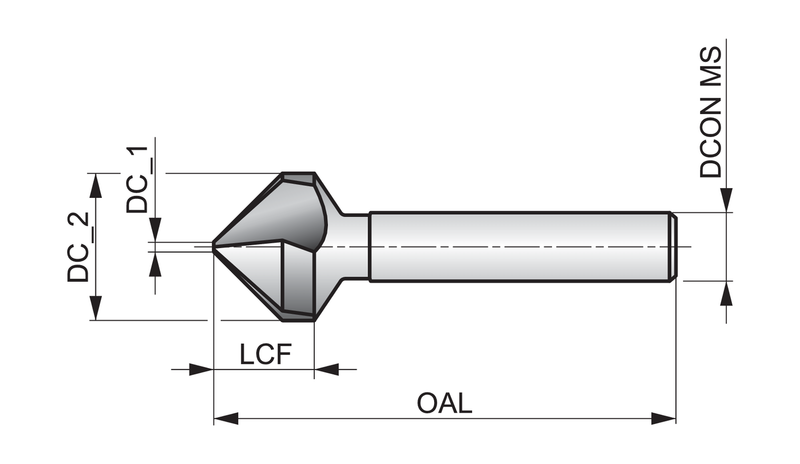

Dimensions
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Flute Length — mm (LCF)9.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 335 C
Reference Numbers
EDP Number168134
EAN7320760168134
File Type Download
G14215.0 — Line Drawing PDF Download
