A9773/32
A9773/32
A9773/32
A9773/32

A9773/32

UGC DOR5973122
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.61 CAD - $76.61 CAD
$76.61 CAD
$76.61 CAD - $76.61 CAD
$76.61 CAD

Vendu en lots de : 1

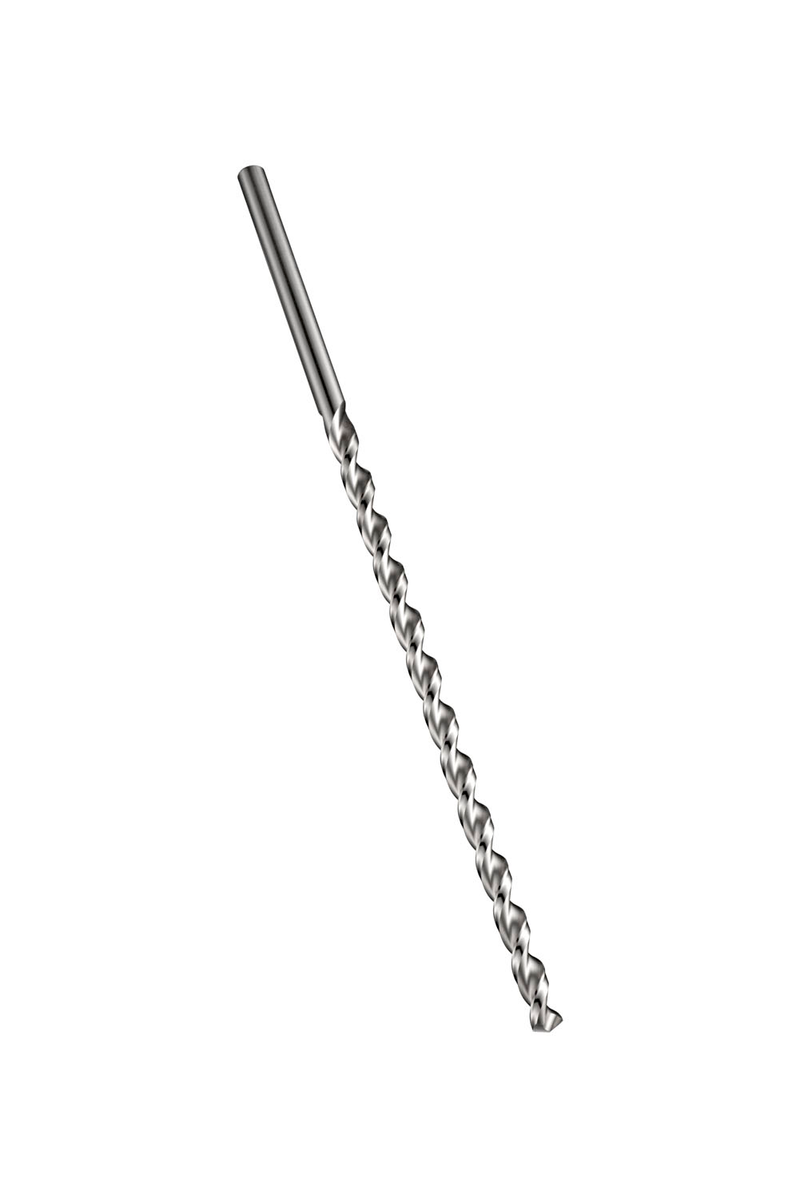

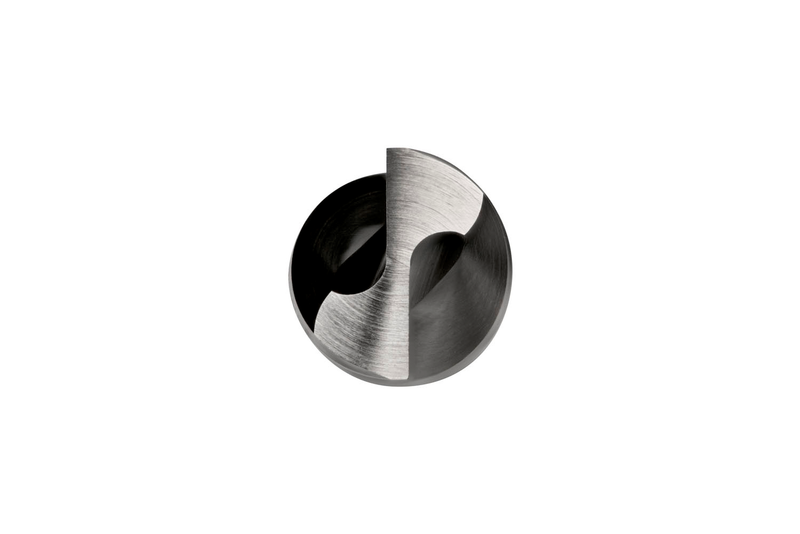

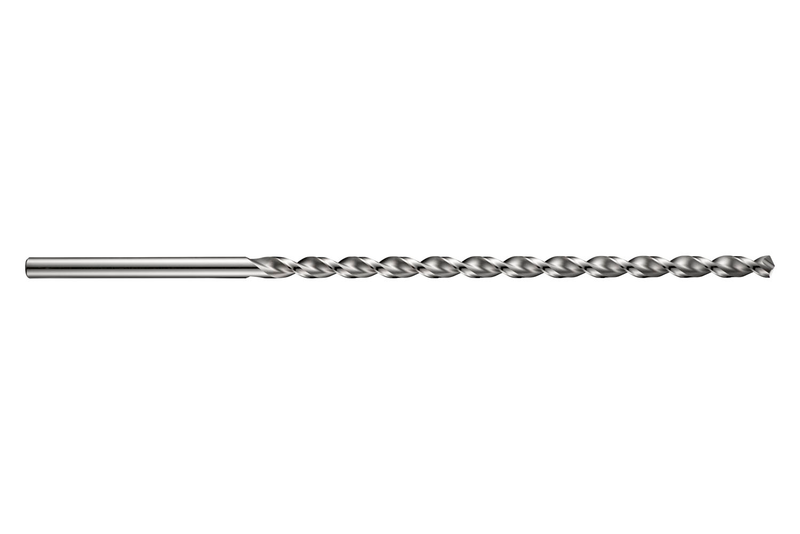

Foret PFX extra-long à queue cylindrique, diamètre 0,0938" (3/32) avec une longueur totale de 170 mm et une longueur de coupe de 115 mm selon la norme DIN 1869 / 2 avec un angle de pointe de 130°, HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour un perçage de 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9773/32
GradeLumineux
Product Number5973122
Product FamilyA977
Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)6.6929"
Overall Length — mm (OAL)170.0 mm
Flute Length — in (LCF)4.5276"
Flute Length — mm (LCF)115.0 mm
Length × Diameter Ratio20
Connection Dia. — in (DCON)0.0937"
Connection Dia. — mm (DCON)2.38 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 2
Reference Numbers
EDP Number347416
EAN7320760347416
File Type Download
A9773/32 — 3D Model STP Download
A9773/32 — Line Drawing PDF Download
