G12510.0X5.5
G12510.0X5.5
G12510.0X5.5
G12510.0X5.5

G12510.0X5.5

UGC DOR5973130
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.40 CAD - $31.40 CAD
$31.40 CAD
$31.40 CAD - $31.40 CAD
$31.40 CAD

Vendu en lots de : 1

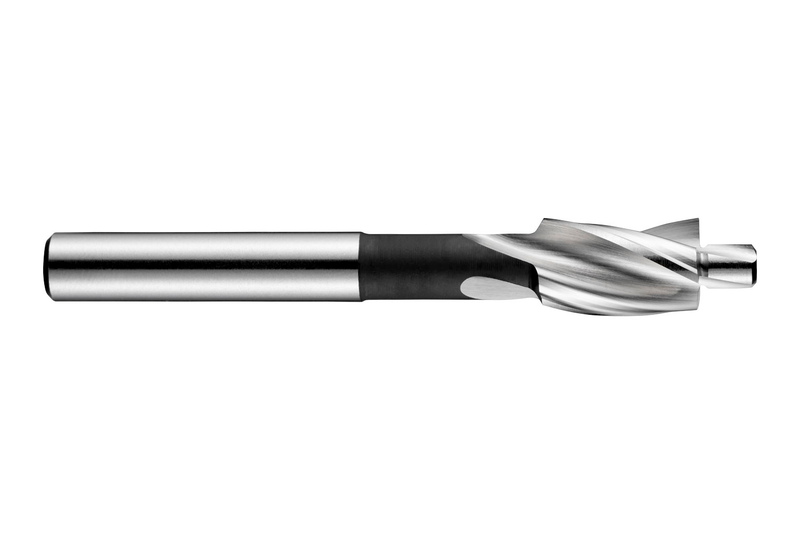

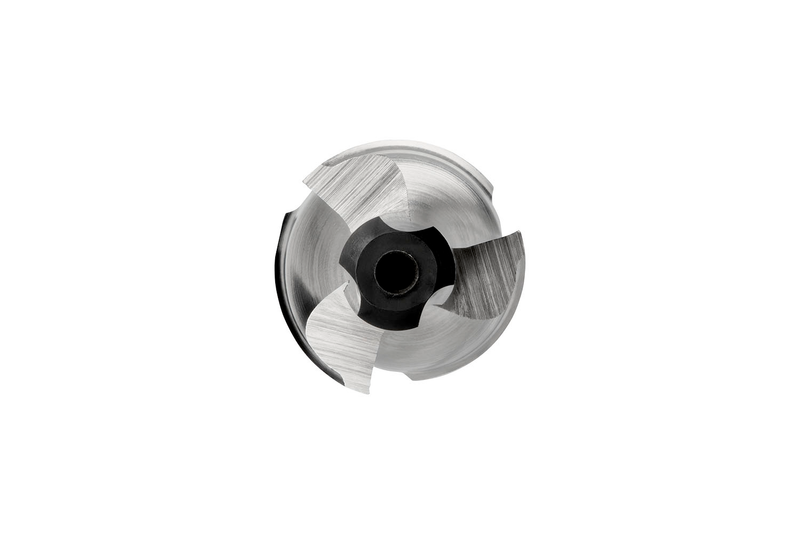

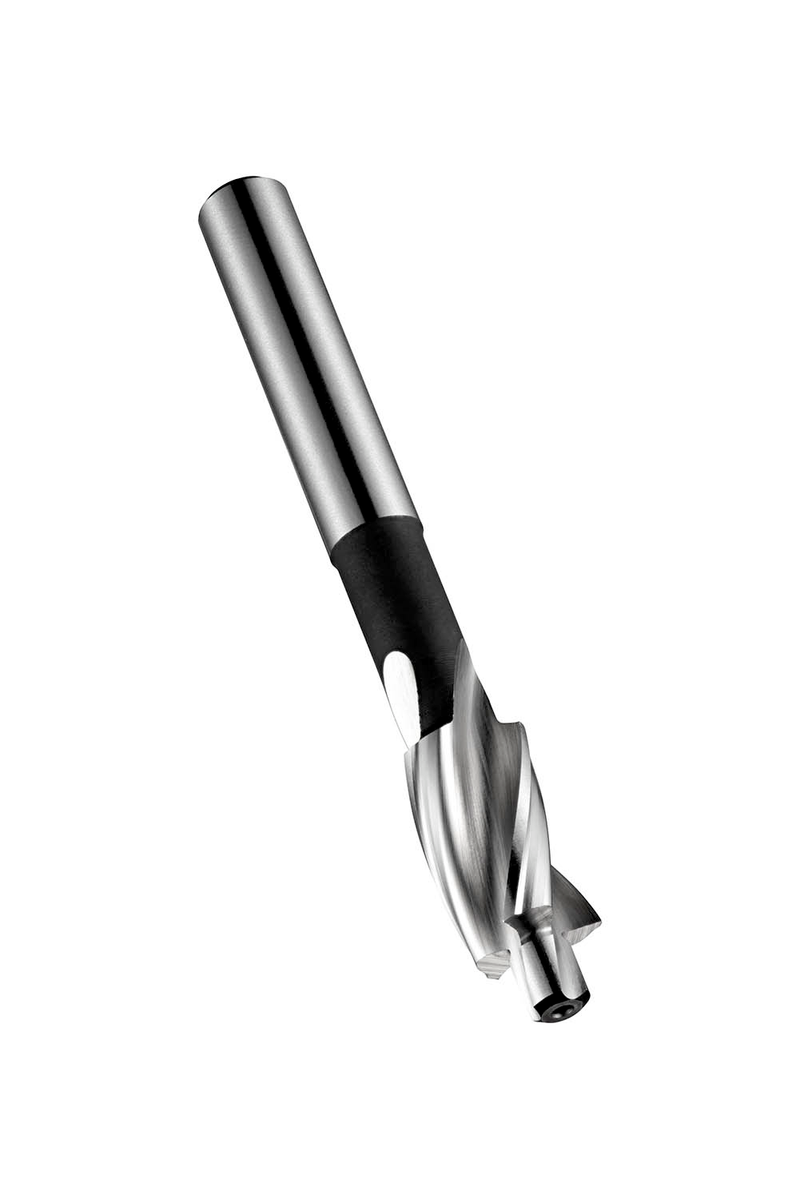

Fraise à lamer 3 tailles, diamètre 10,00 mm, longueur totale 80 mm, longueur de coupe 18 mm et queue cylindrique 8 mm, selon la norme DIN 373 pour la production de lamages à l'aide d'un foret pilote non perçant de diamètre 5,50 mm pour un ajustement normal pour M5, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone non alliés, corroyés et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12510.0X5.5
GradeLumineux
Product Number5973130
Product FamilyG125
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107621
EAN7320760107621
File Type Download

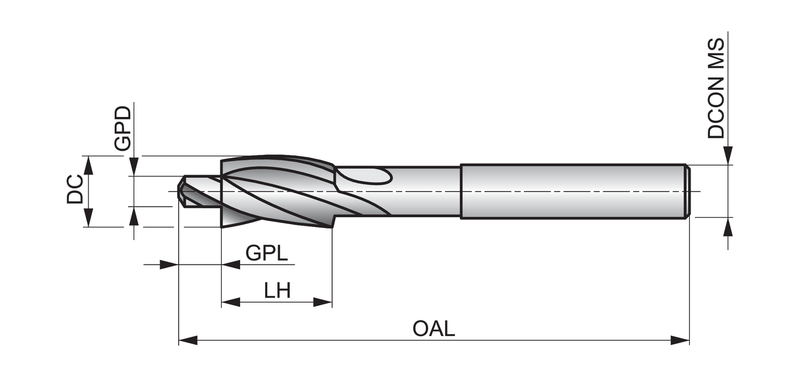

G12510.0X5.5 — Line Drawing PDF Download
