A9774.5X235
A9774.5X235
A9774.5X235
A9774.5X235

A9774.5X235

UGC DOR5973132
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.64 CAD - $108.64 CAD
$108.64 CAD
$108.64 CAD - $108.64 CAD
$108.64 CAD

Vendu en lots de : 1

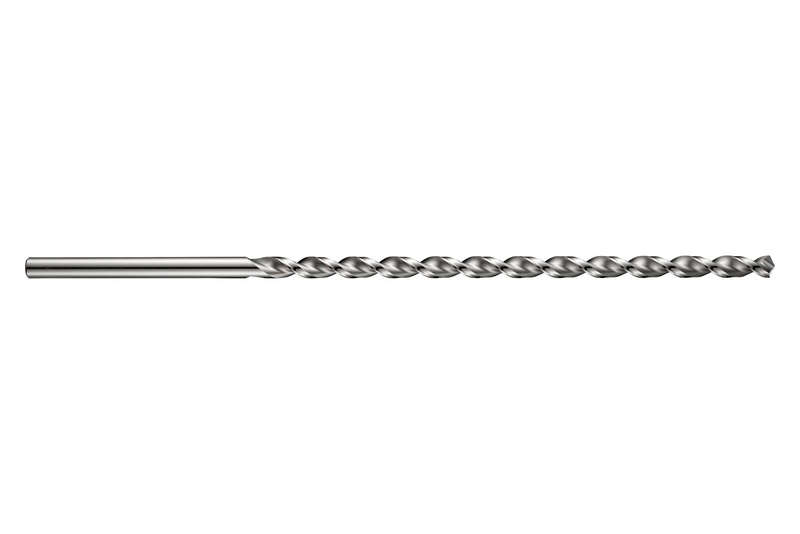

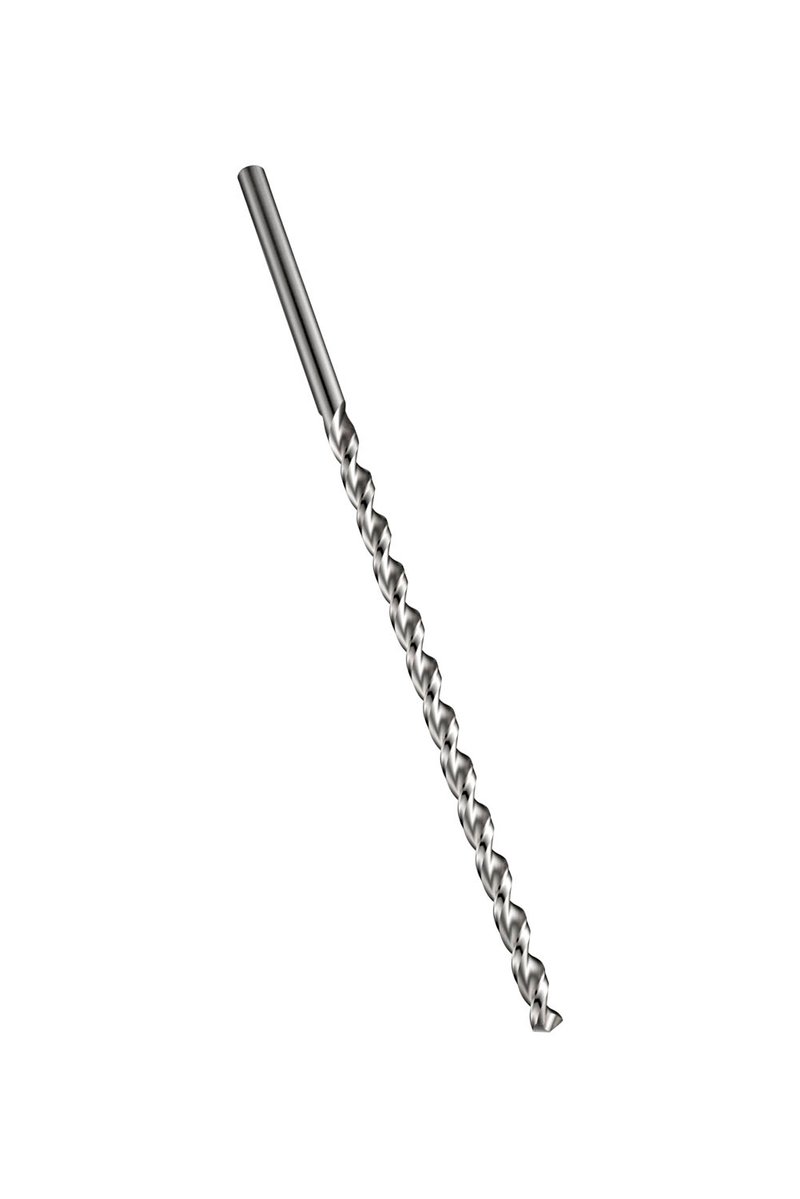

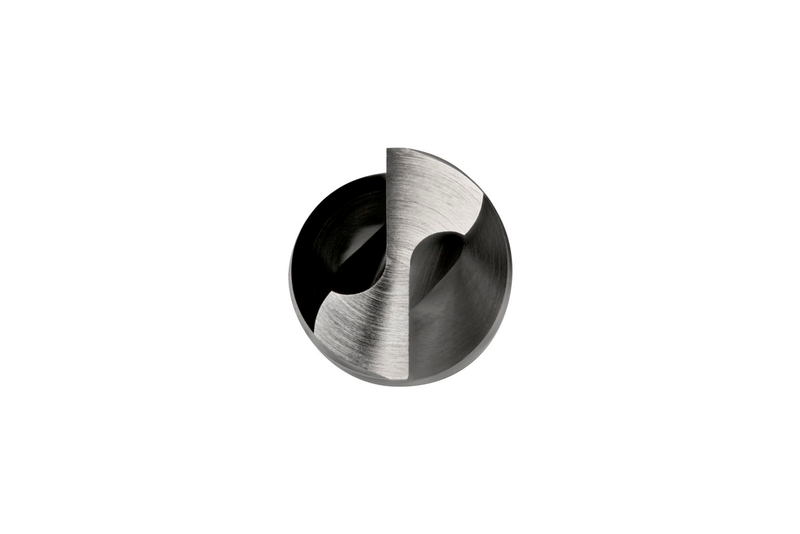

Foret PFX extra long à queue cylindrique, diamètre 4,5 mm, longueur totale 235 mm et longueur utile 160 mm selon la norme DIN 1869 / 2, angle de pointe 130°, HSS-E cobalt, finition brillante, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9774.5X235
GradeLumineux
Product Number5973132
Product FamilyA977
Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)9.252"
Overall Length — mm (OAL)235.0 mm
Flute Length — in (LCF)6.2992"
Flute Length — mm (LCF)160.0 mm
Length × Diameter Ratio20
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 2
Reference Numbers
EDP Number148730
EAN7320760148730
File Type Download
A9774.5X235 — 3D Model STP Download
A9774.5X235 — Line Drawing PDF Download
