UGC DOR5973142
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.67 CAD - $18.67 CAD
$18.67 CAD
$18.67 CAD - $18.67 CAD
$18.67 CAD

Vendu en lots de : 1

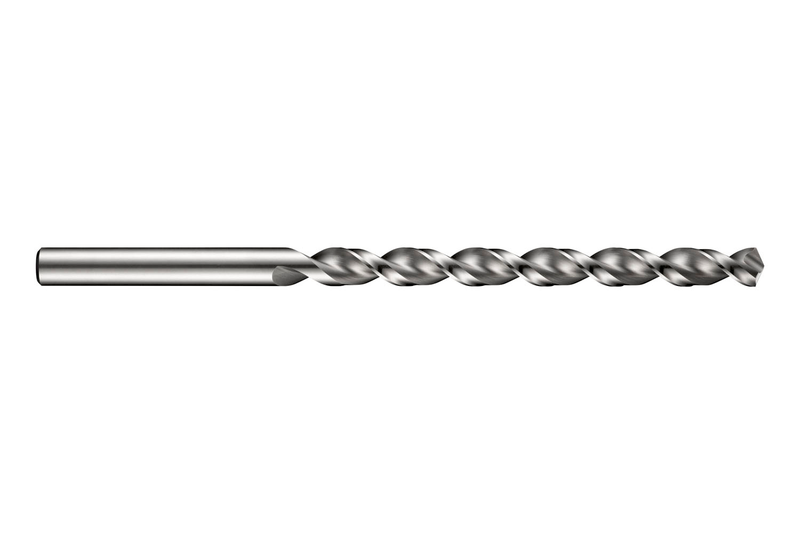

Foret PFX série longue à queue cylindrique, diamètre 3mm avec une longueur totale de 100mm et une longueur de coupe de 66mm selon la norme DIN/ANSI avec un angle de pointe de 130°, HSS-E cobalté avec finition brillante, hélice rapide et âme parabolique pour perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9403.0
GradeLumineux
Product Number5973142
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Flute Length — in (LCF)2.5984"
Flute Length — mm (LCF)66.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number54871
EAN7320760054871
File Type Download
A9403.0 — 3D Model STP Download
A9403.0 — Line Drawing PDF Download
