G13740.0
G13740.0
G13740.0
G13740.0

G13740.0

UGC DOR5973147
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$416.51 CAD - $416.51 CAD
$416.51 CAD
$416.51 CAD - $416.51 CAD
$416.51 CAD

Vendu en lots de : 1

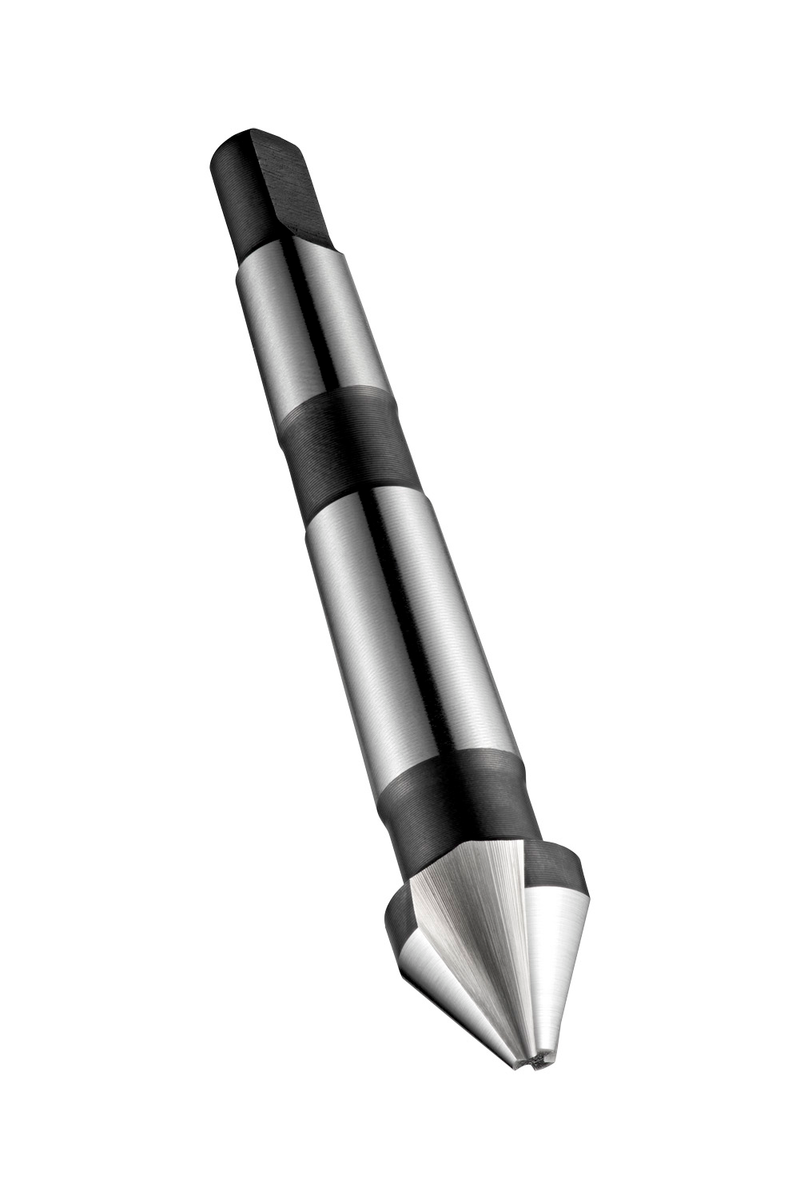

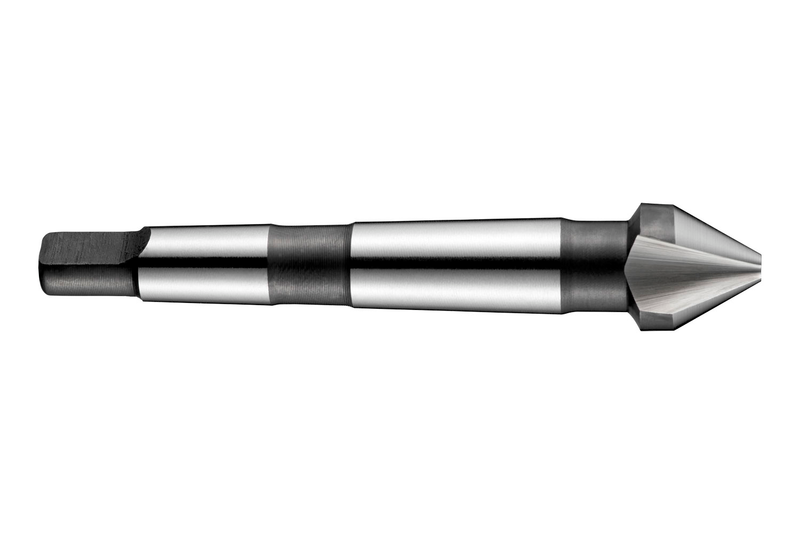

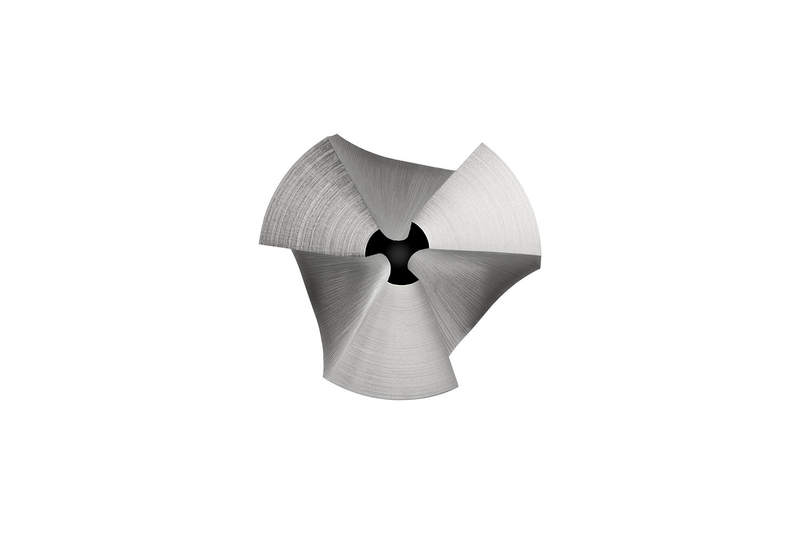

Alésoir conique à 3 goujures, angle de chanfreinage de 60°, diamètre maximum de 40,00mm avec une longueur totale de 150mm et une longueur de tête de 28,5mm et une queue conique Morse MT 3, selon la norme DIN 334 D pour l'ébavurage et le chanfreinage des trous avec un diamètre minimum de 12,50mm, en HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)G13740.0
Product Name (ISO)G13740,0
GradeLumineux
Product Number5973147
Product FamilyG137
Dimensions
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Flute Length — mm (LCF)28.5 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 334 J
Reference Numbers
EDP Number108802
EAN7320760108802
File Type Download

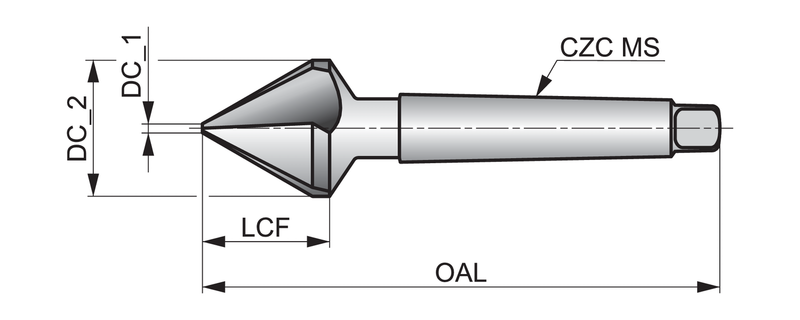

G13740.0 — Line Drawing PDF Download
