UGC DOR5973149
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.91 CAD - $53.91 CAD
$53.91 CAD
$53.91 CAD - $53.91 CAD
$53.91 CAD

Vendu en lots de : 1

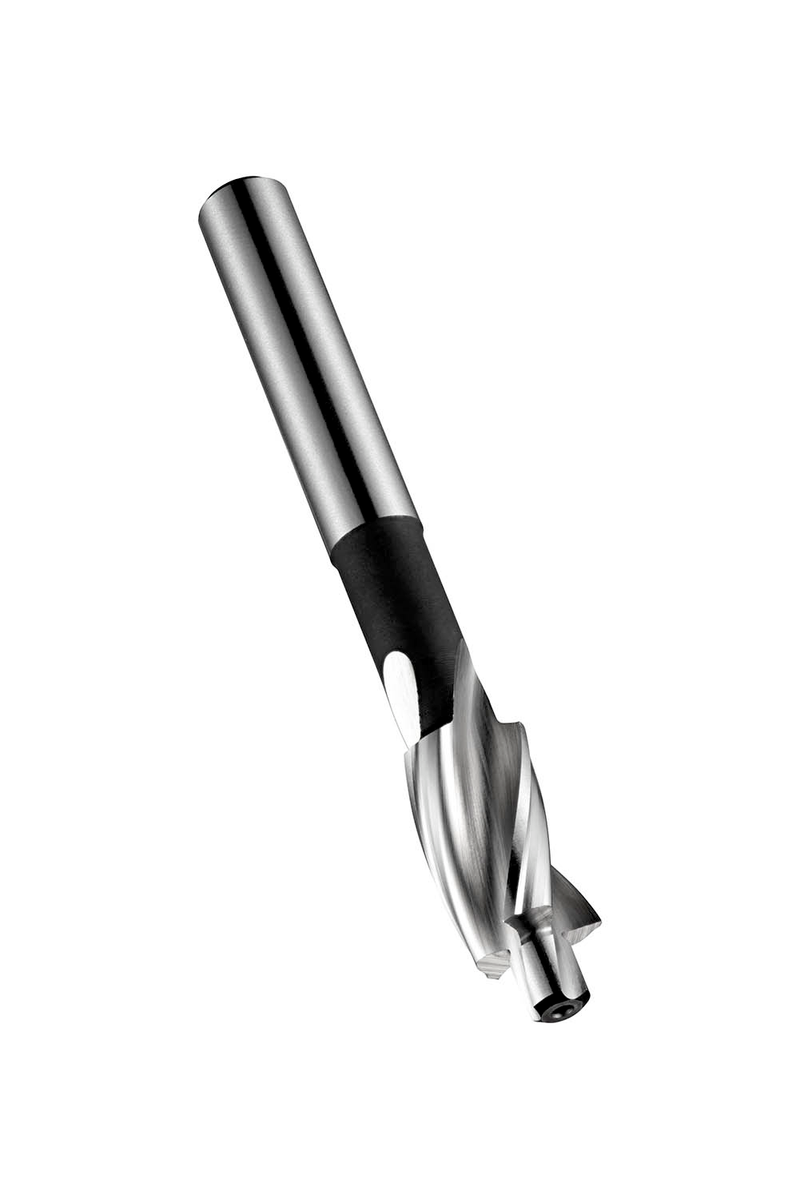

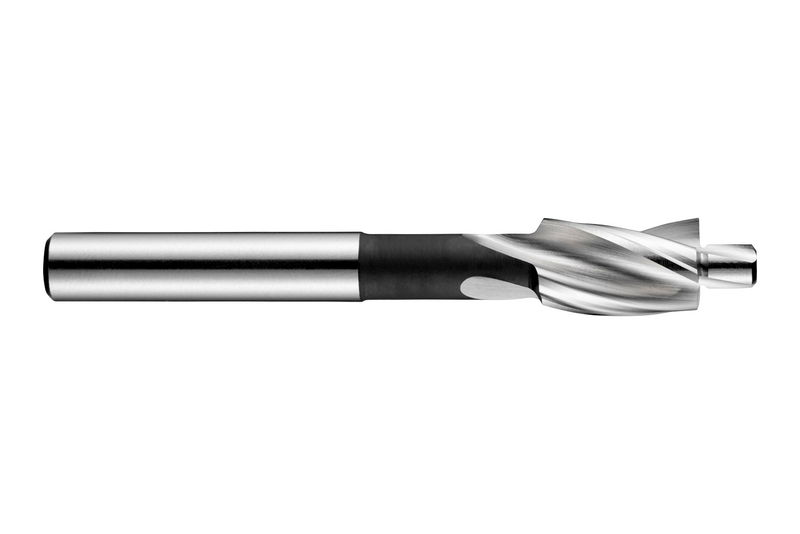

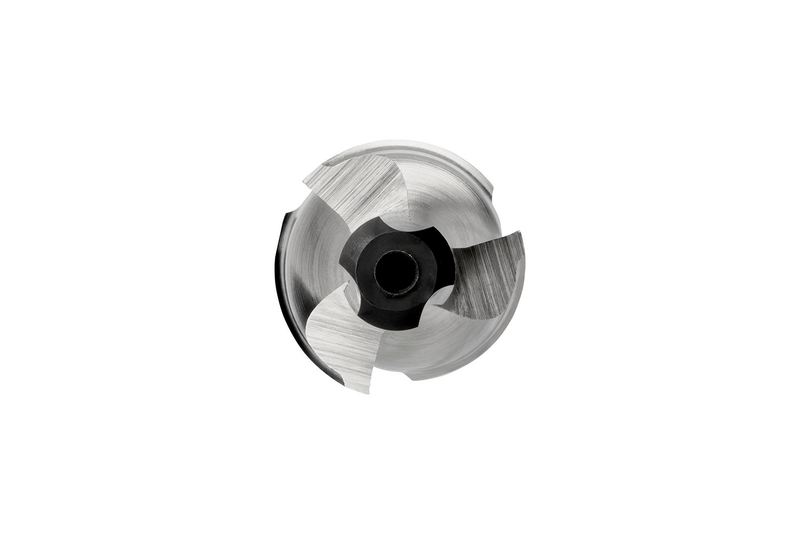

Fraise à chanfreiner à 3 goujures, diamètre 15,00mm avec une longueur totale de 100mm et une longueur de coupe de 22mm et une queue cylindrique de 12,5mm, selon la norme DIN 373 pour réaliser un lamage à l'aide d'un pilote non-foret d'un diamètre de 6,80mm pour un pré-trou de taraudage diamètre M8, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et au carbone, forgés et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12515.0X6.8
GradeLumineux
Product Number5973149
Product FamilyG125
Dimensions
Cutting Diameter — in (DC)0.5906"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107669
EAN7320760107669
File Type Download

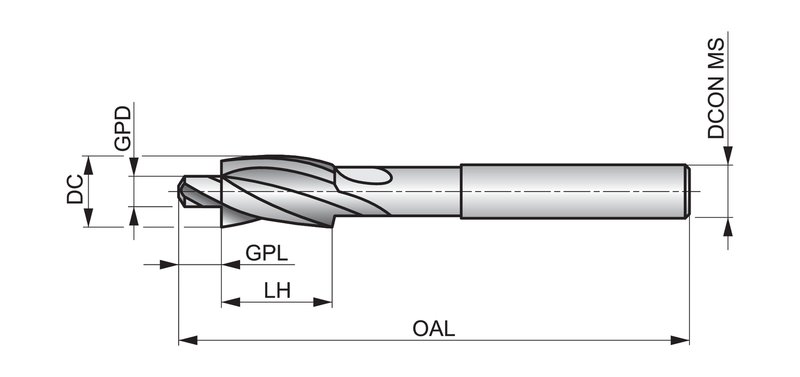

G12515.0X6.8 — Line Drawing PDF Download
