A9765/16
A9765/16
A9765/16
A9765/16

A9765/16

UGC DOR5973150
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.93 CAD - $156.93 CAD
$156.93 CAD
$156.93 CAD - $156.93 CAD
$156.93 CAD

Vendu en lots de : 1

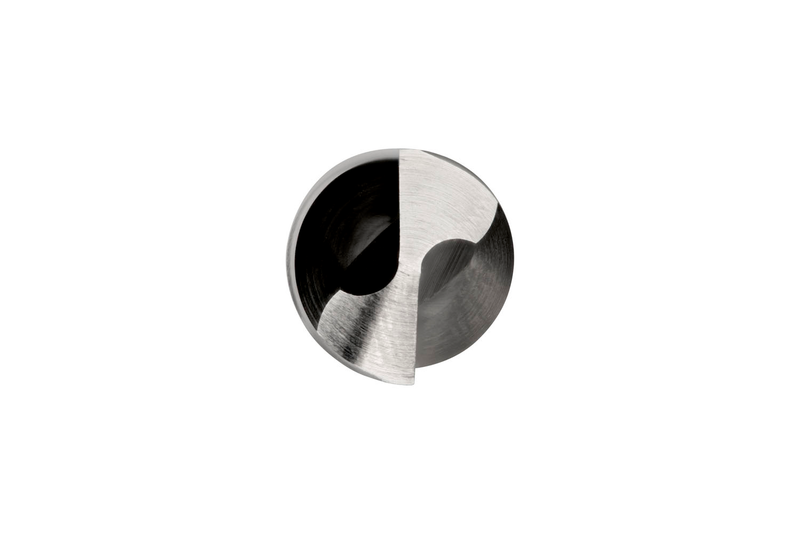

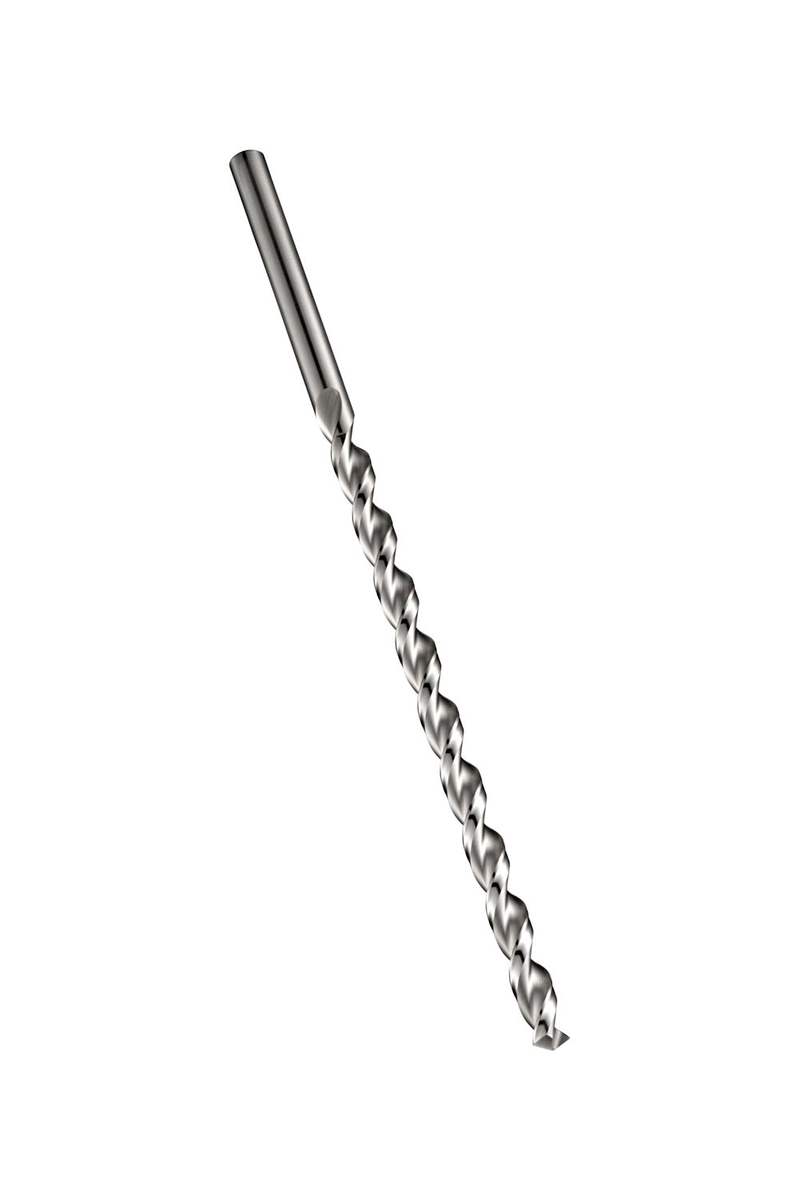

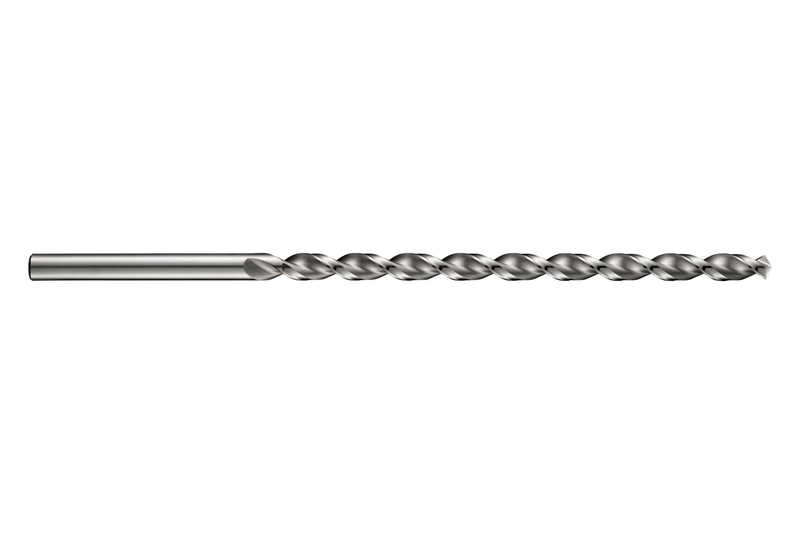

Foret PFX de très grande longueur avec queue droite, diamètre 0,3125" (5/16) avec une longueur totale de 240mm et une longueur de coupe de 165mm selon la norme DIN 1869 / 1 avec un angle de pointe de 130°, HSS-E à base de cobalt avec finition brillante, spirale rapide et nervure parabolique pour le perçage de 15xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9765/16
GradeLumineux
Product Number5973150
Product FamilyA976
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)9.4488"
Overall Length — mm (OAL)240.0 mm
Flute Length — in (LCF)6.4961"
Flute Length — mm (LCF)165.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.3126"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 1
Reference Numbers
EDP Number347102
EAN7320760347102
File Type Download
A9765/16 — 3D Model STP Download
A9765/16 — Line Drawing PDF Download
