G12515.0X8.4
G12515.0X8.4
G12515.0X8.4
G12515.0X8.4

G12515.0X8.4

UGC DOR5973154
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.91 CAD - $53.91 CAD
$53.91 CAD
$53.91 CAD - $53.91 CAD
$53.91 CAD

Vendu en lots de : 1

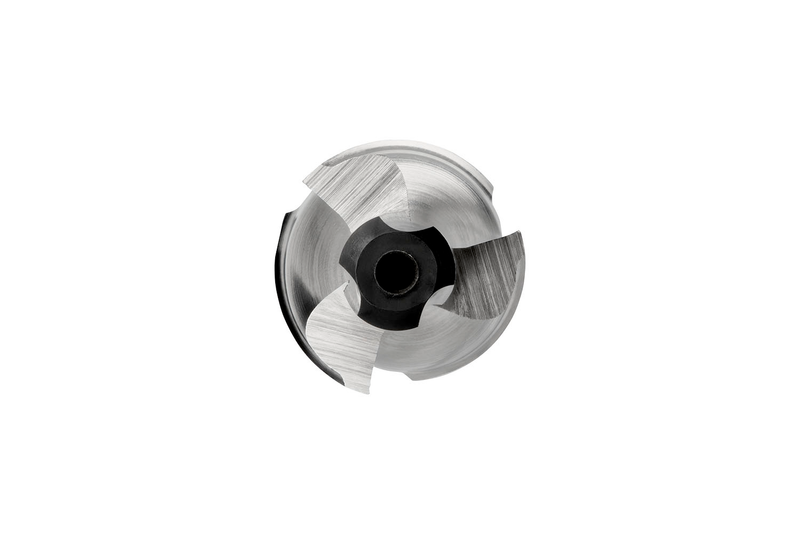

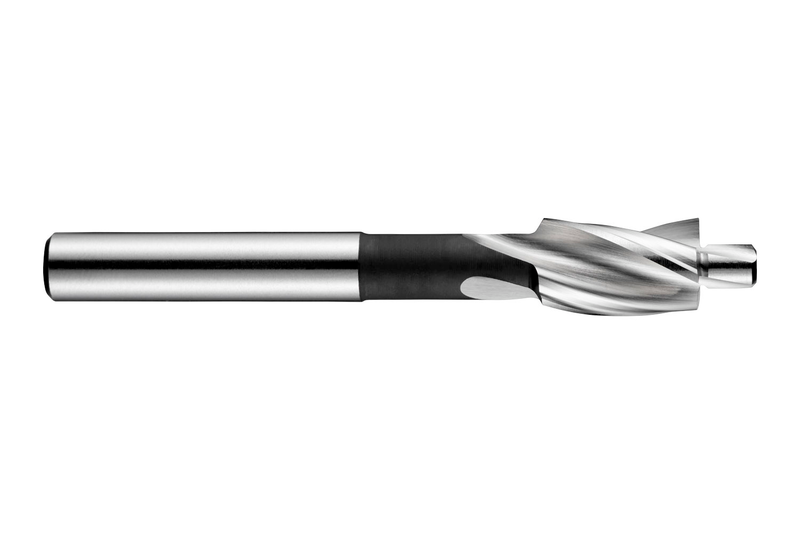

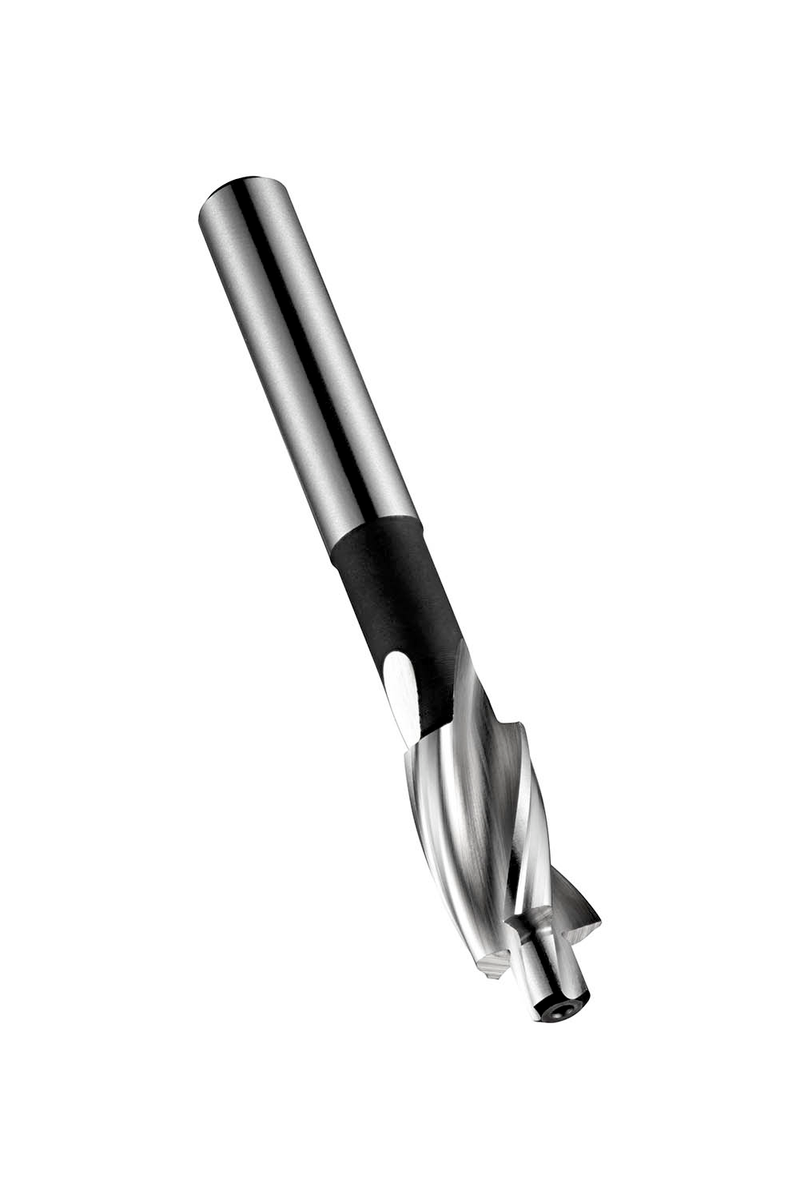

Fraise à lamer 3 goujures, diamètre 15,00 mm avec une longueur totale de 100 mm et une longueur de coupe de 22 mm et un queue cylindrique de 12,5 mm, selon la norme DIN 373 pour réaliser un lamage à l'aide d'un pilote non foreur d'un diamètre de 8,40 mm pour un ajustement serré pour M8, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et au carbone ordinaires, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12515.0X8.4
GradeLumineux
Product Number5973154
Product FamilyG125
Dimensions
Cutting Diameter — in (DC)0.5906"
Cutting Diameter — mm (DC)15.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107676
EAN7320760107676
File Type Download

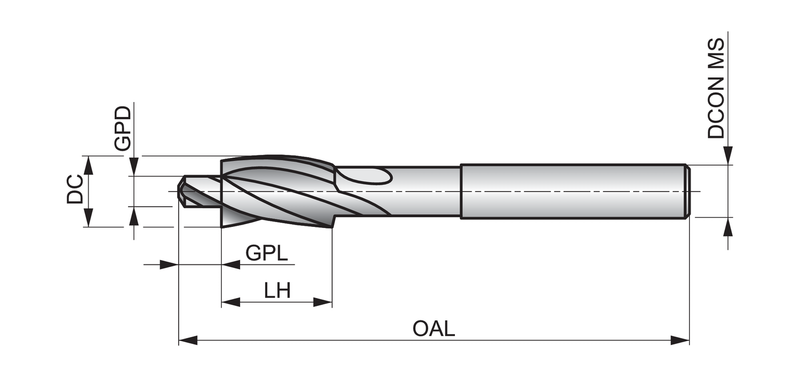

G12515.0X8.4 — Line Drawing PDF Download
