UGC DOR5973156
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.27 CAD - $19.27 CAD
$19.27 CAD
$19.27 CAD - $19.27 CAD
$19.27 CAD

Vendu en lots de : 1

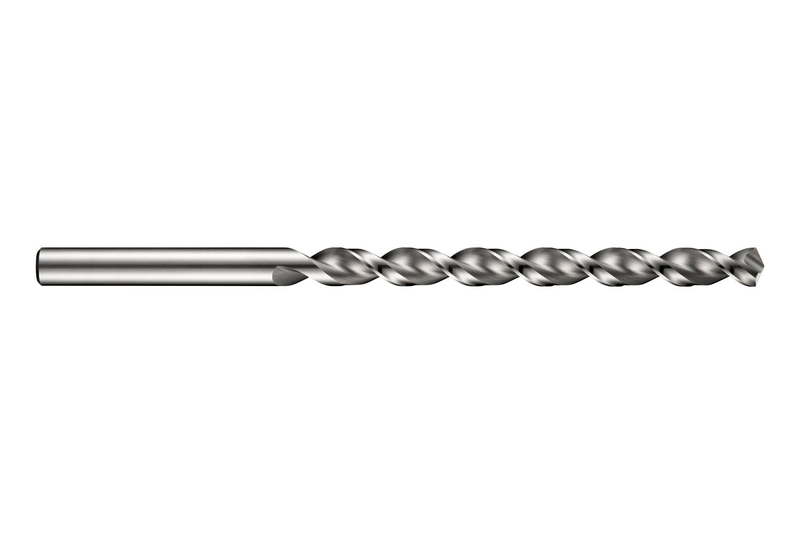

Foret long PFX à queue cylindrique, diamètre 3,3 mm, longueur totale 106 mm et longueur de coupe 69 mm selon la norme DIN/ANSI, avec un angle de pointe de 130°, en HSS-E cobalt, finition brillante, hélice rapide et âme parabolique pour perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9403.3
GradeLumineux
Product Number5973156
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.1299"
Cutting Diameter — mm (DC)3.3 mm
Overall Length — in (OAL)4.1732"
Overall Length — mm (OAL)106.0 mm
Flute Length — in (LCF)2.7165"
Flute Length — mm (LCF)69.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.1299"
Connection Dia. — mm (DCON)3.3 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number55540
EAN7320760055540
File Type Download
A9403.3 — 3D Model STP Download
A9403.3 — Line Drawing PDF Download
