UGC DOR5973158
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$468.93 CAD - $468.93 CAD
$468.93 CAD
$468.93 CAD - $468.93 CAD
$468.93 CAD

Vendu en lots de : 1

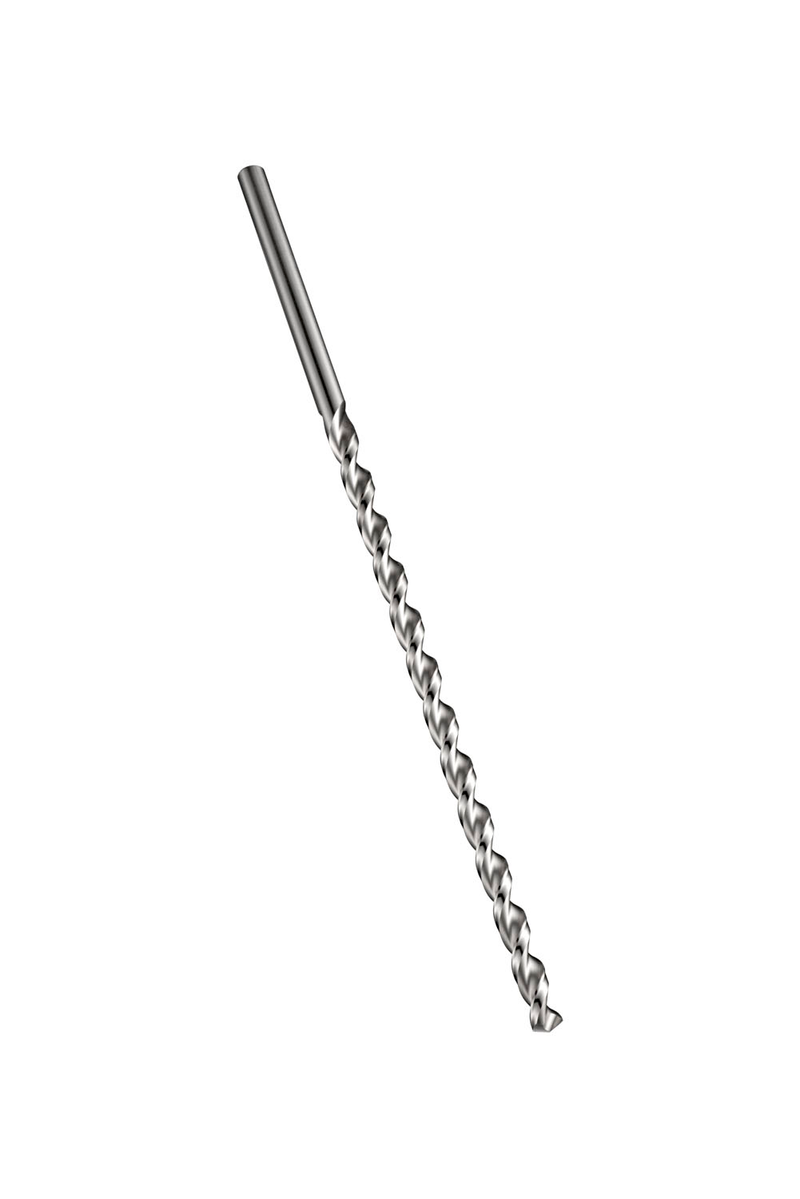

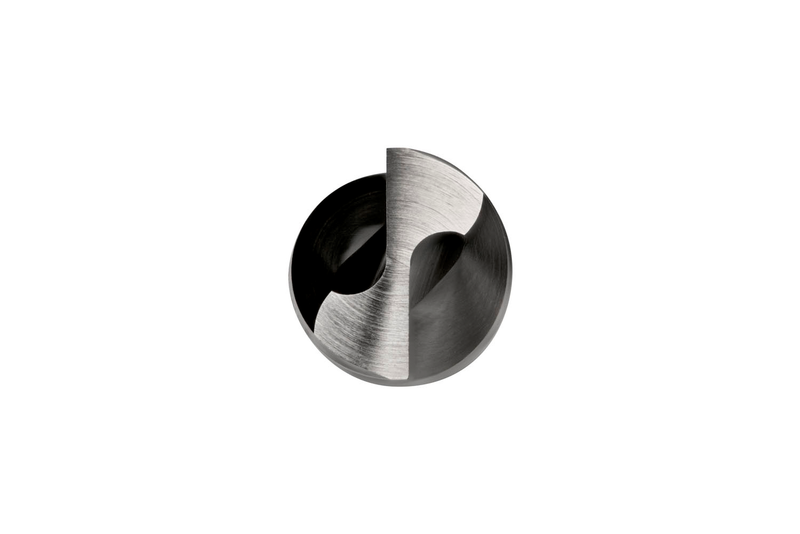

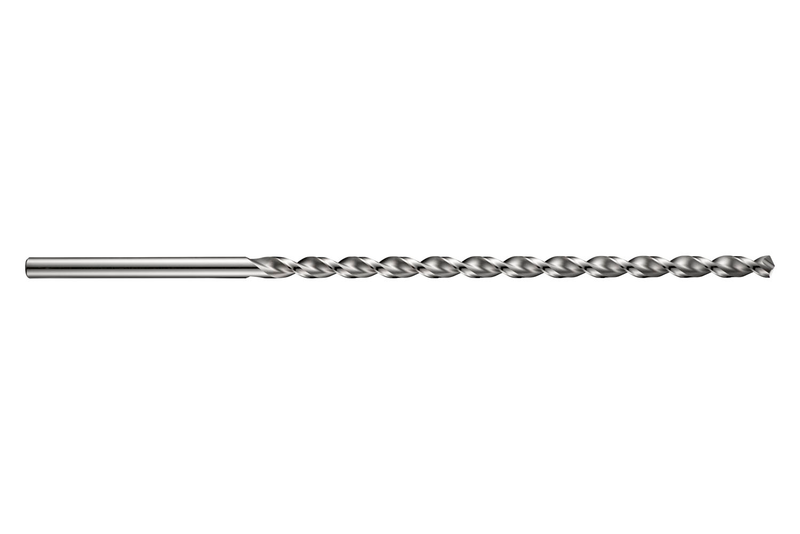

Foret PFX extra-long à queue cylindrique, diamètre 11mm avec une longueur totale de 365mm et une longueur de coupe de 250mm selon la norme DIN 1869 / 2 avec un angle de pointe de 130°, HSS-E cobalt avec finition brillante, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A97711.0
GradeLumineux
Product Number5973158
Product FamilyA977
Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)14.3701"
Overall Length — mm (OAL)365.0 mm
Flute Length — in (LCF)9.8425"
Flute Length — mm (LCF)250.0 mm
Length × Diameter Ratio20
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 2
Reference Numbers
EDP Number347263
EAN7320760347263
File Type Download
A97711.0 — 3D Model STP Download
A97711.0 — Line Drawing PDF Download
