A9766.0X205
A9766.0X205
A9766.0X205
A9766.0X205

A9766.0X205

UGC DOR5973160
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.87 CAD - $84.87 CAD
$84.87 CAD
$84.87 CAD - $84.87 CAD
$84.87 CAD

Vendu en lots de : 1

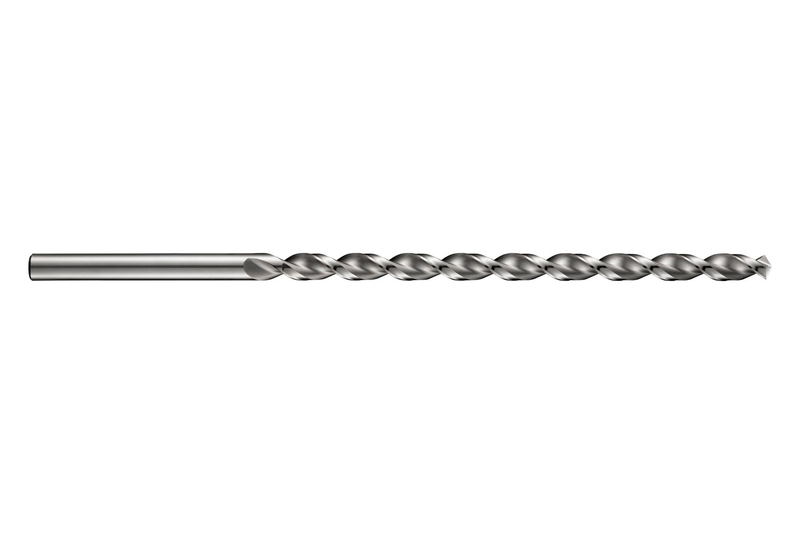

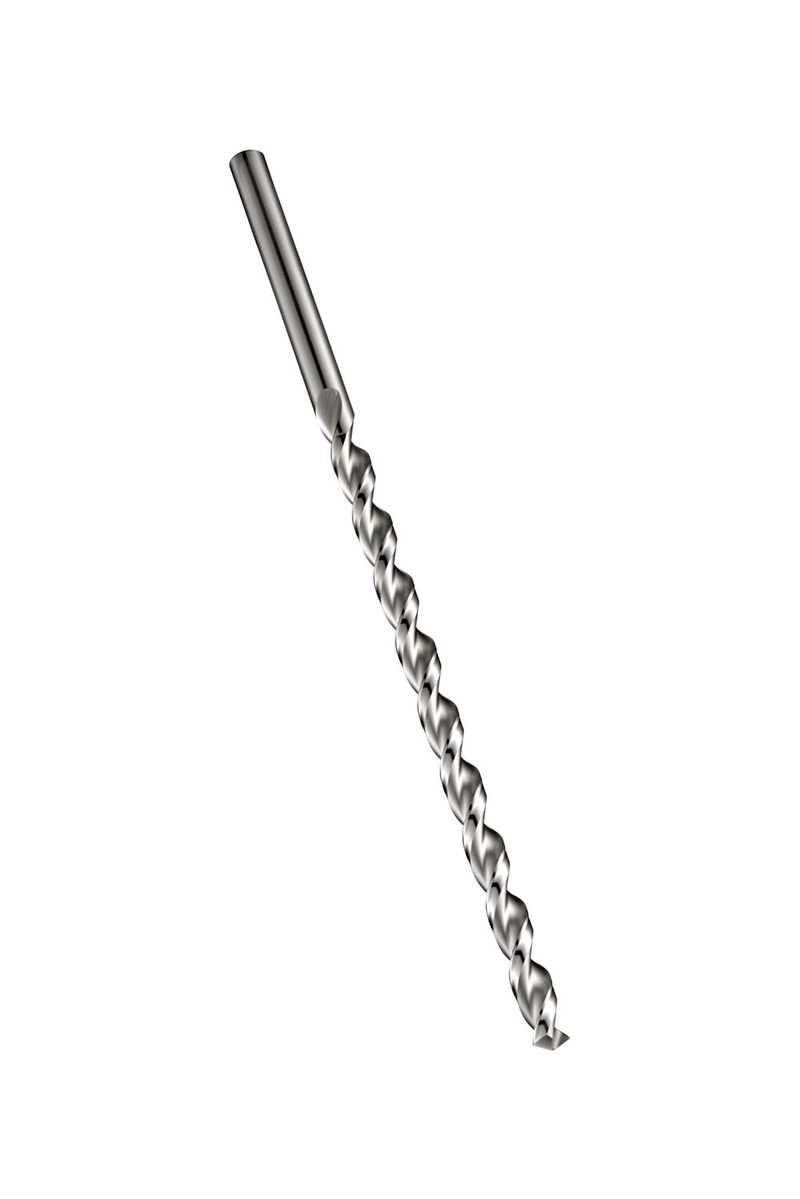

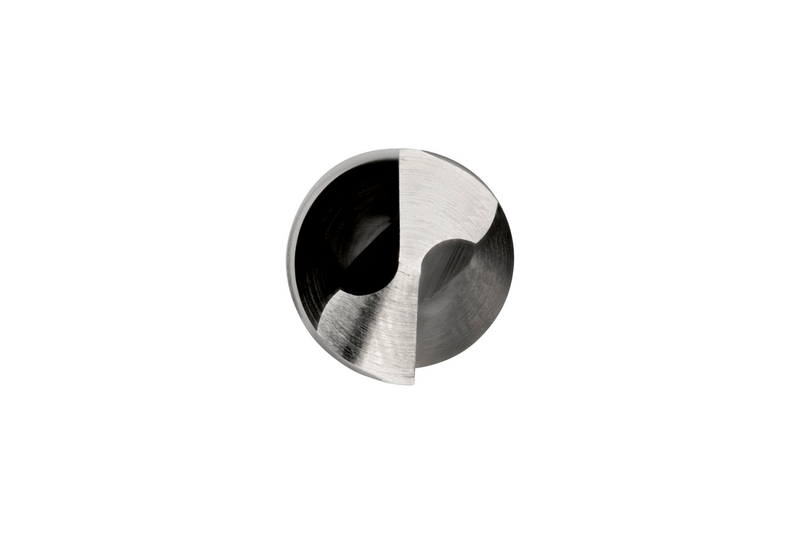

Foret PFX extra-long à queue cylindrique, diamètre 6mm avec une longueur totale de 205mm et une longueur de coupe de 140mm selon la norme DIN 1869 / 1 avec un angle de pointe de 130°, HSS-E cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage 15xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9766.0X205
GradeLumineux
Product Number5973160
Product FamilyA976
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)8.0709"
Overall Length — mm (OAL)205.0 mm
Flute Length — in (LCF)5.5118"
Flute Length — mm (LCF)140.0 mm
Length × Diameter Ratio15
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 1
Reference Numbers
EDP Number148617
EAN7320760148617
File Type Download
A9766.0X205 — 3D Model STP Download
A9766.0X205 — Line Drawing PDF Download
