A9778.0X305
A9778.0X305
A9778.0X305
A9778.0X305

A9778.0X305

UGC DOR5973172
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$206.14 CAD - $206.14 CAD
$206.14 CAD
$206.14 CAD - $206.14 CAD
$206.14 CAD

Vendu en lots de : 1

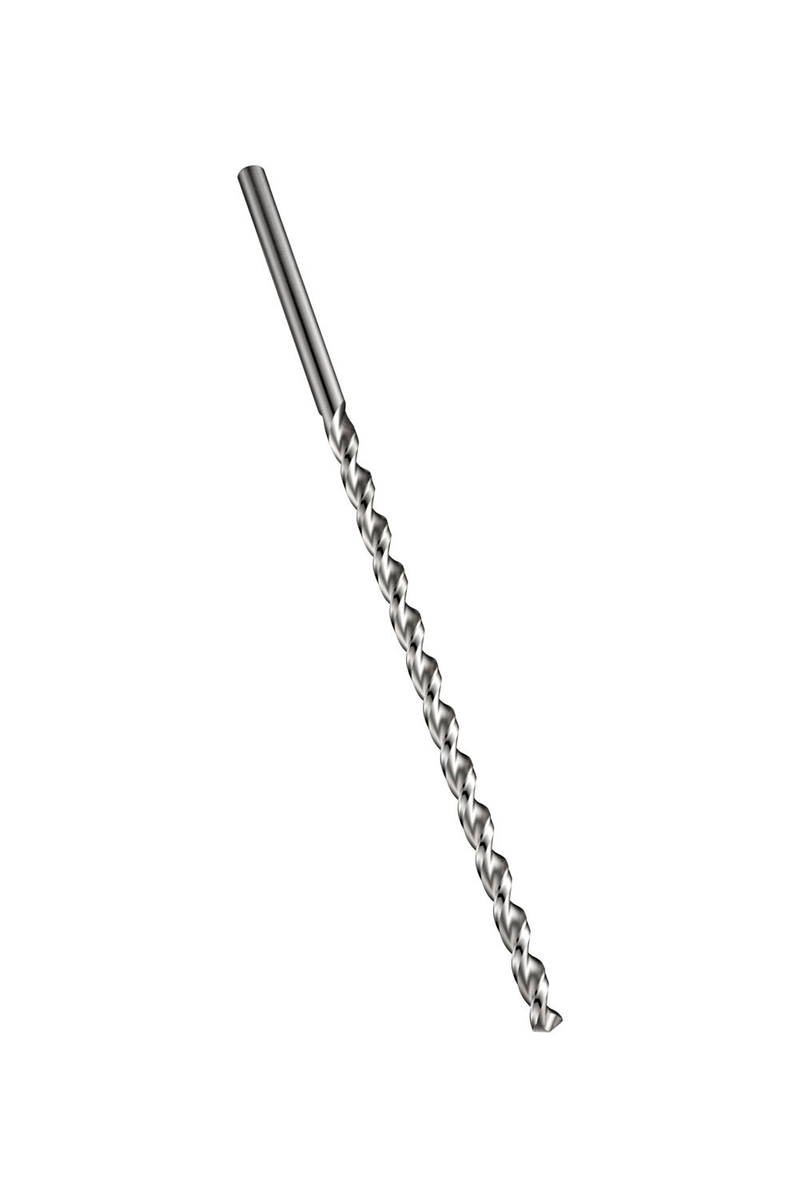

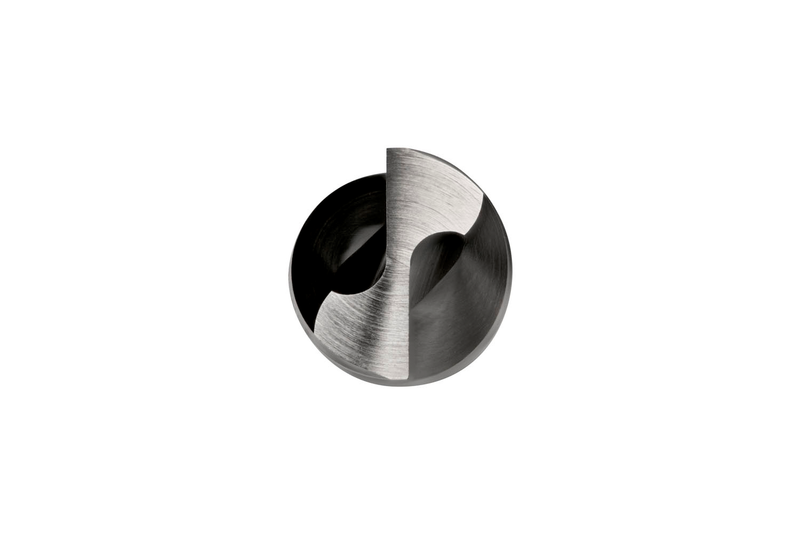

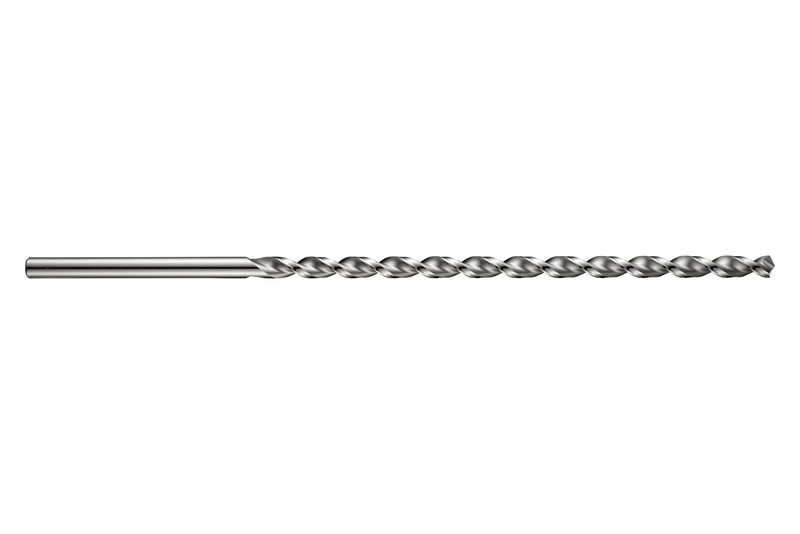

Foret PFX extra-long à queue cylindrique, diamètre 8 mm, longueur totale 305 mm et longueur de coupe 210 mm selon la norme DIN 1869 / 2, angle de pointe 130°, en HSS-E cobalt, finition brillante, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9778.0X305
GradeLumineux
Product Number5973172
Product FamilyA977
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)12.0079"
Overall Length — mm (OAL)305.0 mm
Flute Length — in (LCF)8.2677"
Flute Length — mm (LCF)210.0 mm
Length × Diameter Ratio20
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 2
Reference Numbers
EDP Number148808
EAN7320760148808
File Type Download
A9778.0X305 — 3D Model STP Download
A9778.0X305 — Line Drawing PDF Download
