G12518.0X8.5
G12518.0X8.5
G12518.0X8.5
G12518.0X8.5

G12518.0X8.5

UGC DOR5973174
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.54 CAD - $65.54 CAD
$65.54 CAD
$65.54 CAD - $65.54 CAD
$65.54 CAD

Vendu en lots de : 1

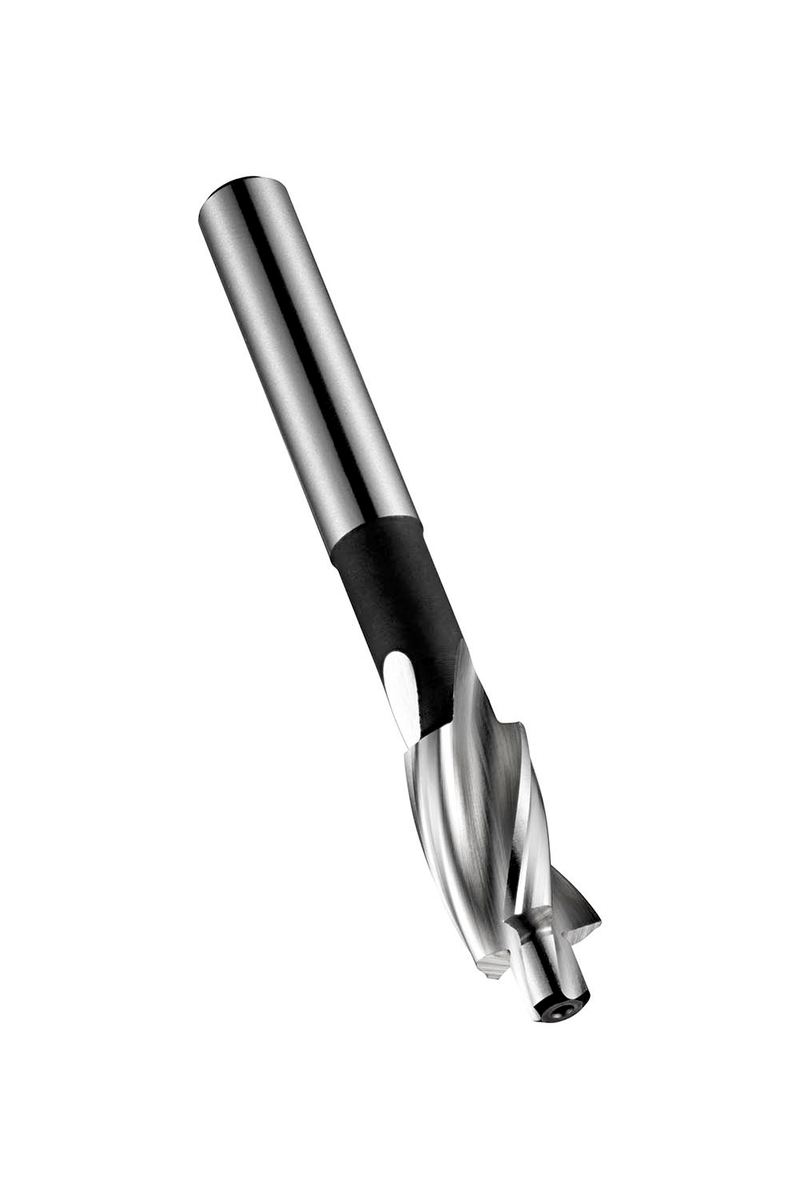

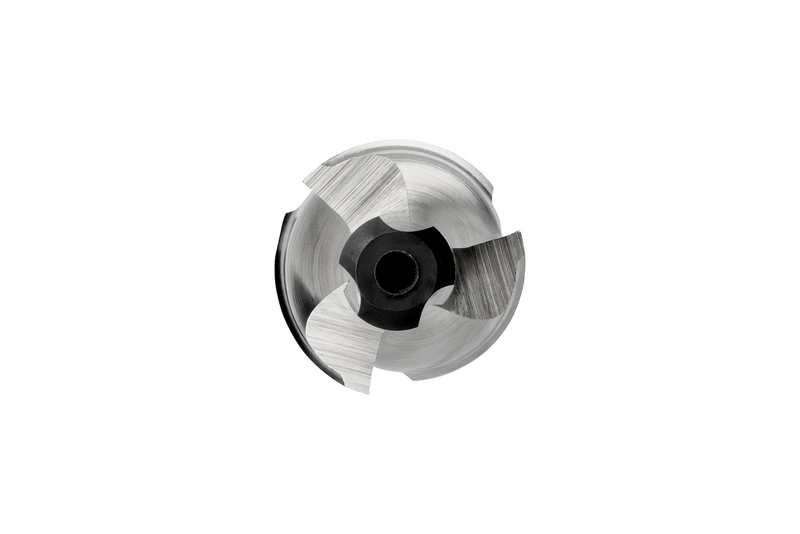

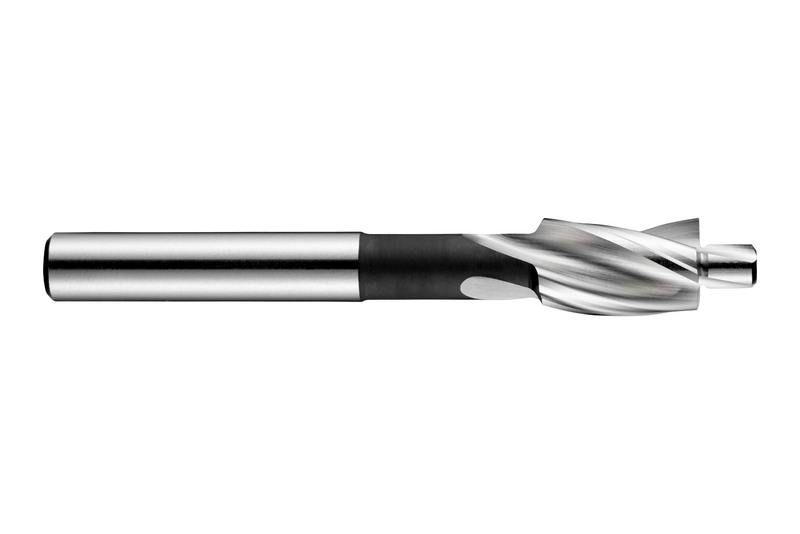

Fraise à chanfreiner à 3 coupes, diamètre 18.00mm, longueur totale 100mm, longueur de coupe 22mm et queue cylindrique 12.5mm, selon la norme DIN 373, pour réaliser un chanfrein à l'aide d'un pilote non foreur de diamètre 8.50mm pour un avant-trou de taraudage M10, HSS avec finition brillante standard pour l'usinage d'acier à usinage facile et d'acier au carbone non allié, d'acier corroyé et de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12518.0X8.5
GradeLumineux
Product Number5973174
Product FamilyG125

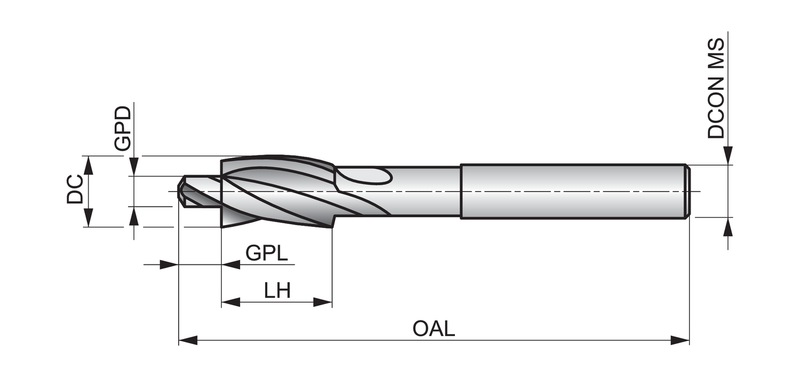

Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107713
EAN7320760107713
File Type Download
G12518.0X8.5 — Line Drawing PDF Download
