A9779.0X320
A9779.0X320
A9779.0X320
A9779.0X320

A9779.0X320

UGC DOR5973181
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$277.64 CAD - $277.64 CAD
$277.64 CAD
$277.64 CAD - $277.64 CAD
$277.64 CAD

Vendu en lots de : 1

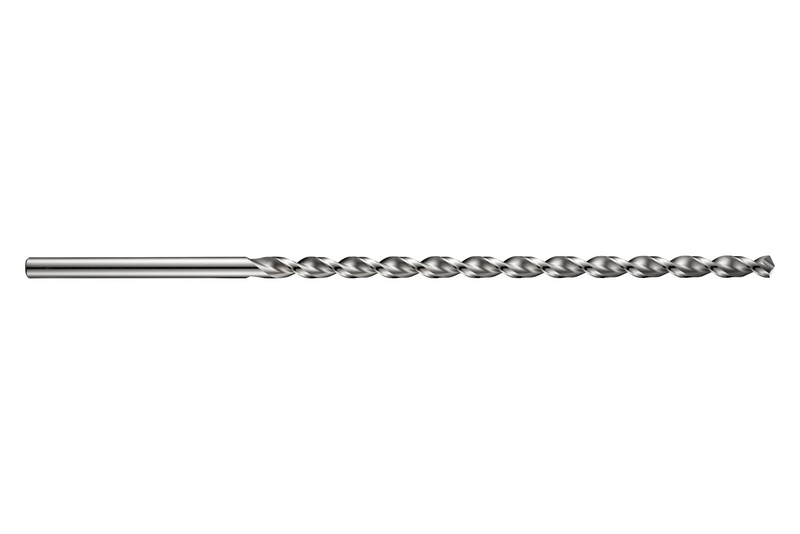

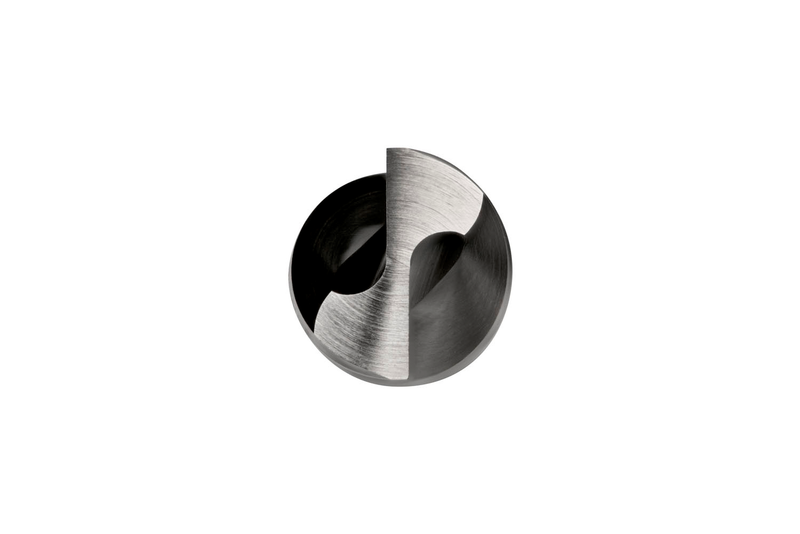

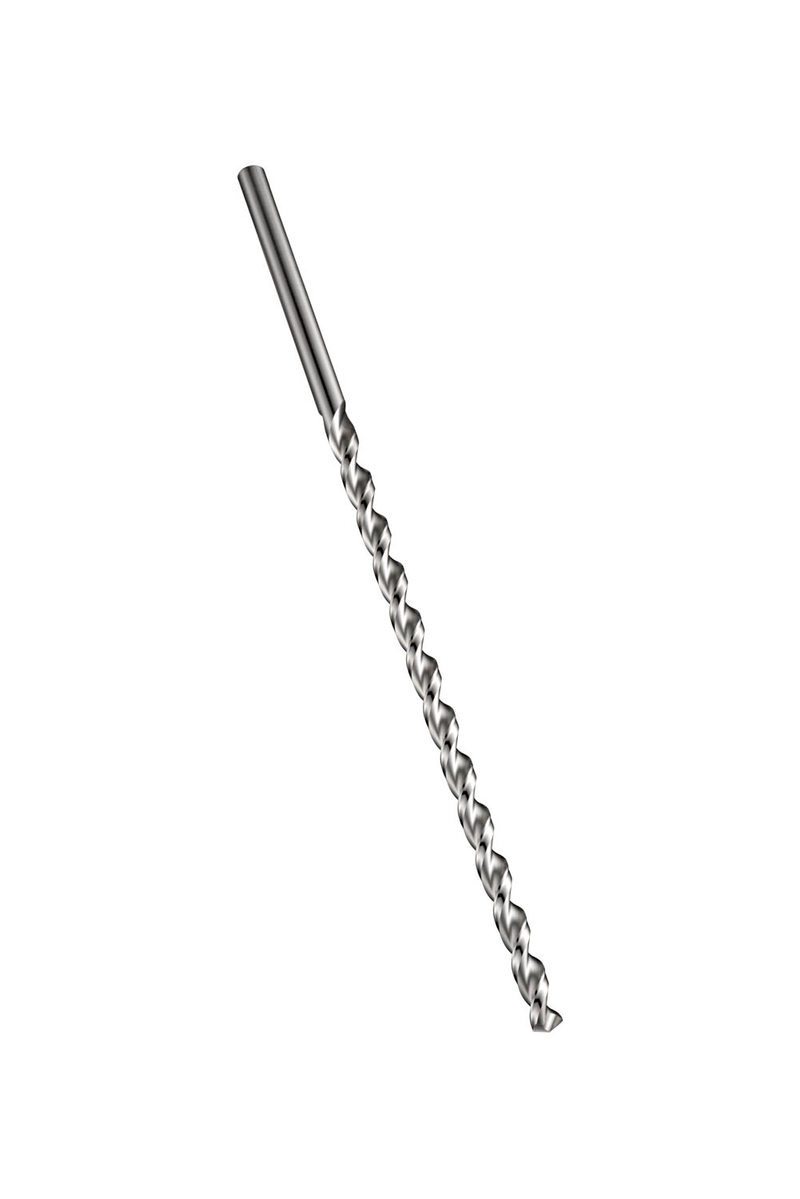

Forets PFX extra-longs à queue droite, diamètre 9 mm, longueur totale 320 mm et longueur de coupe 220 mm selon la norme DIN 1869 / 2, angle de pointe 130°, HSS-E cobaltés à finition brillante, hélice rapide et âme parabolique pour perçage 20xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9779.0X320
GradeLumineux
Product Number5973181
Product FamilyA977
Dimensions
Cutting Diameter — in (DC)0.3543"
Cutting Diameter — mm (DC)9.0 mm
Overall Length — in (OAL)12.5984"
Overall Length — mm (OAL)320.0 mm
Flute Length — in (LCF)8.6614"
Flute Length — mm (LCF)220.0 mm
Length × Diameter Ratio20
Connection Dia. — in (DCON)0.3543"
Connection Dia. — mm (DCON)9.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 2
Reference Numbers
EDP Number148822
EAN7320760148822
File Type Download
A9779.0X320 — 3D Model STP Download
A9779.0X320 — Line Drawing PDF Download
