UGC DOR5973184
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.71 CAD - $68.71 CAD
$68.71 CAD
$68.71 CAD - $68.71 CAD
$68.71 CAD

Vendu en lots de : 1

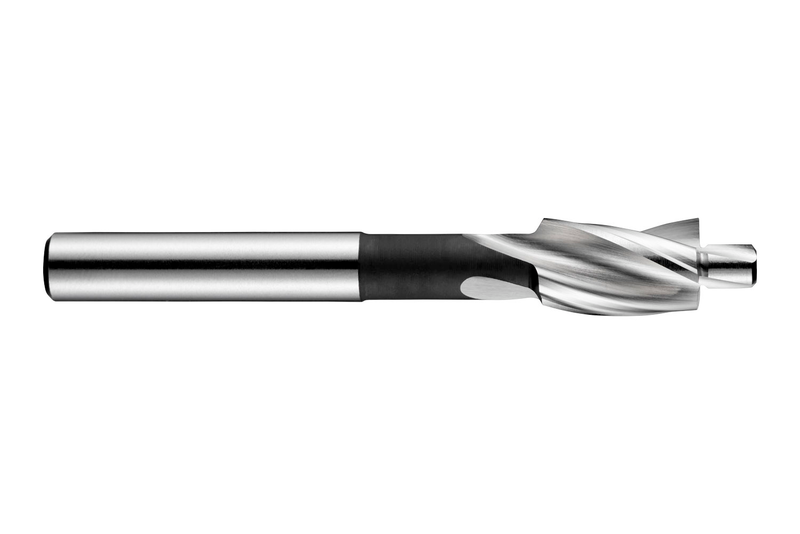

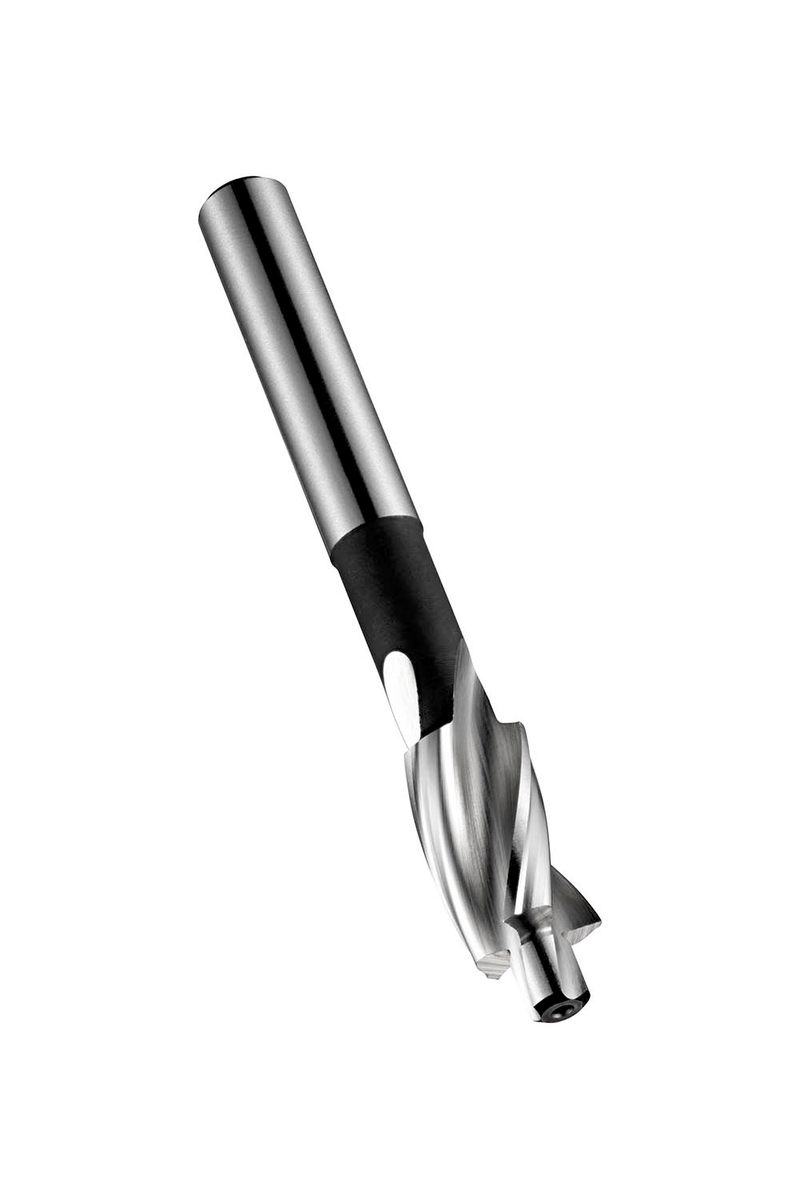

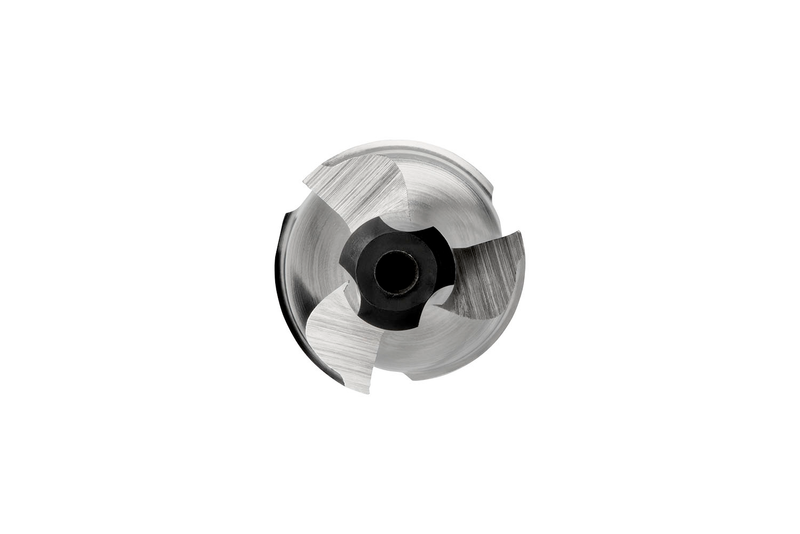

Fraise à chanfreiner à 3 dents, diamètre 20,00mm avec une longueur totale de 100mm et une longueur de coupe de 22mm et une queue cylindrique de 12,5mm, selon la norme DIN 373 pour produire un fraisage à l'aide d'un foret pilote sans perçage d'un diamètre de 10,20mm pour un diamètre de taraudage de pré-trou M12, HSS avec finition brillante standard pour l'usinage d'acier à usinage libre et d'acier au carbone non allié, d'acier forgé et de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12520.0X10.2
GradeLumineux
Product Number5973184
Product FamilyG125
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107720
EAN7320760107720
File Type Download

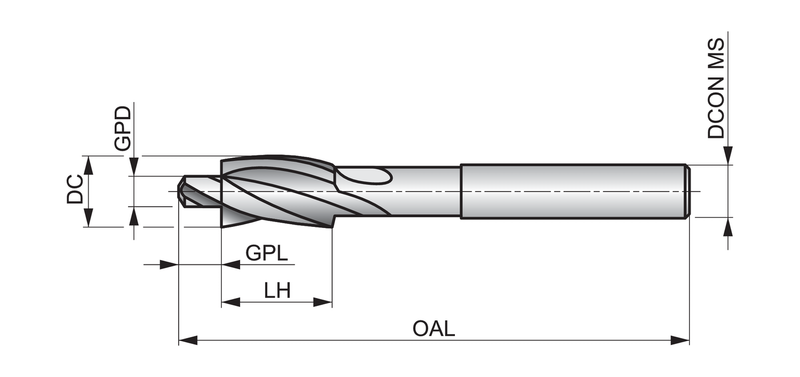

G12520.0X10.2 — Line Drawing PDF Download
