UGC DOR5973187
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.71 CAD - $20.71 CAD
$20.71 CAD
$20.71 CAD - $20.71 CAD
$20.71 CAD

Vendu en lots de : 1

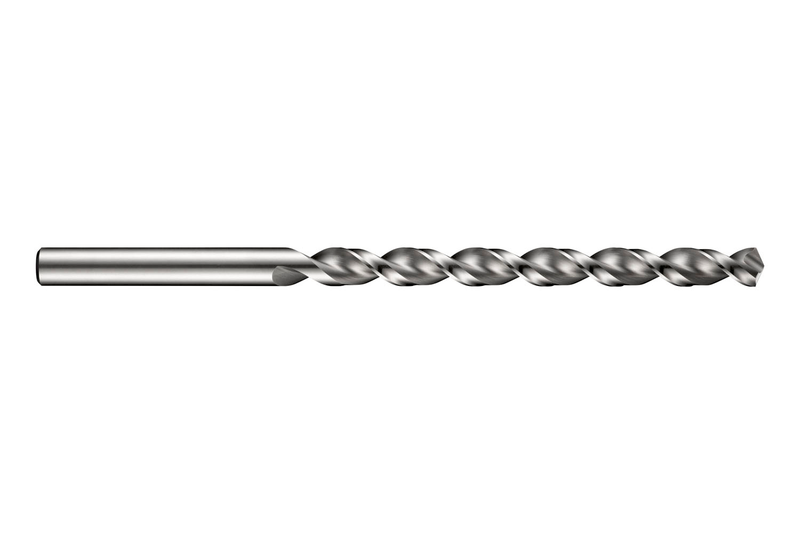

Foret PFX série longue avec queue cylindrique, diamètre 3,8 mm avec une longueur totale de 119 mm et une longueur de coupe de 78 mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, hélice rapide et âme parabolique pour perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9403.8
GradeLumineux
Product Number5973187
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.1496"
Cutting Diameter — mm (DC)3.8 mm
Overall Length — in (OAL)4.685"
Overall Length — mm (OAL)119.0 mm
Flute Length — in (LCF)3.0709"
Flute Length — mm (LCF)78.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.1496"
Connection Dia. — mm (DCON)3.8 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number56011
EAN7320760056011
File Type Download
A9403.8 — 3D Model STP Download
A9403.8 — Line Drawing PDF Download
