UGC DOR5973189
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.71 CAD - $68.71 CAD
$68.71 CAD
$68.71 CAD - $68.71 CAD
$68.71 CAD

Vendu en lots de : 1

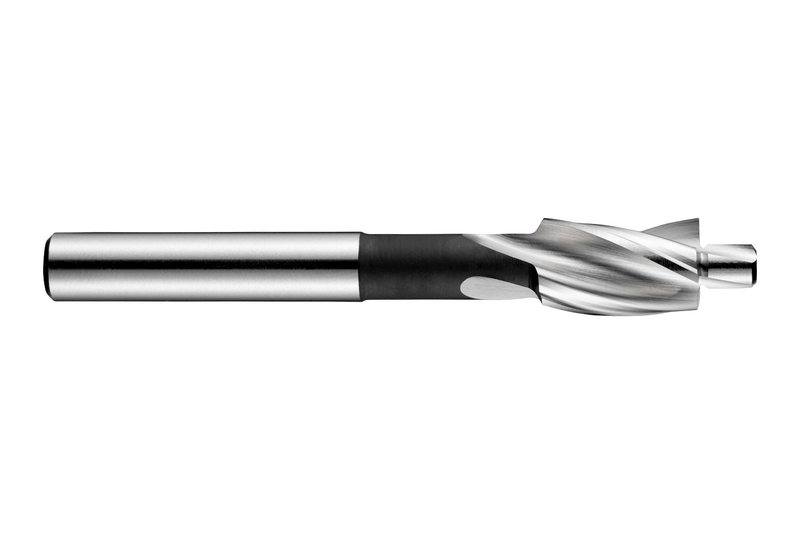

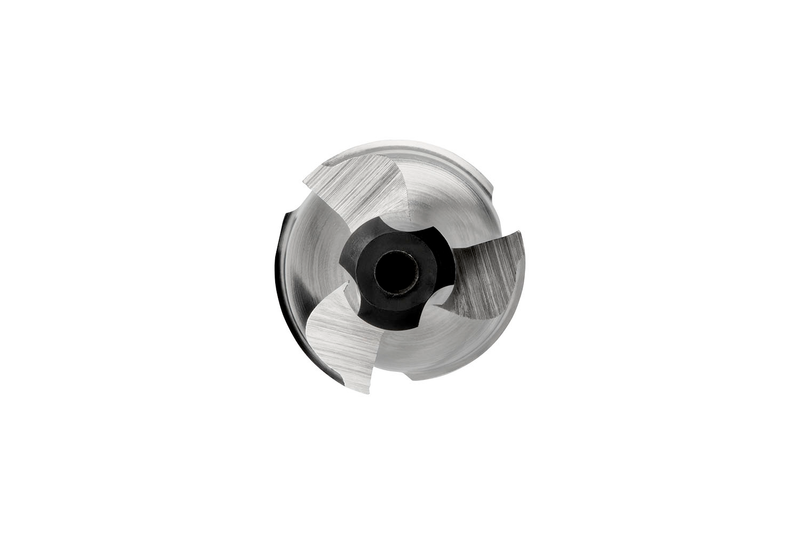

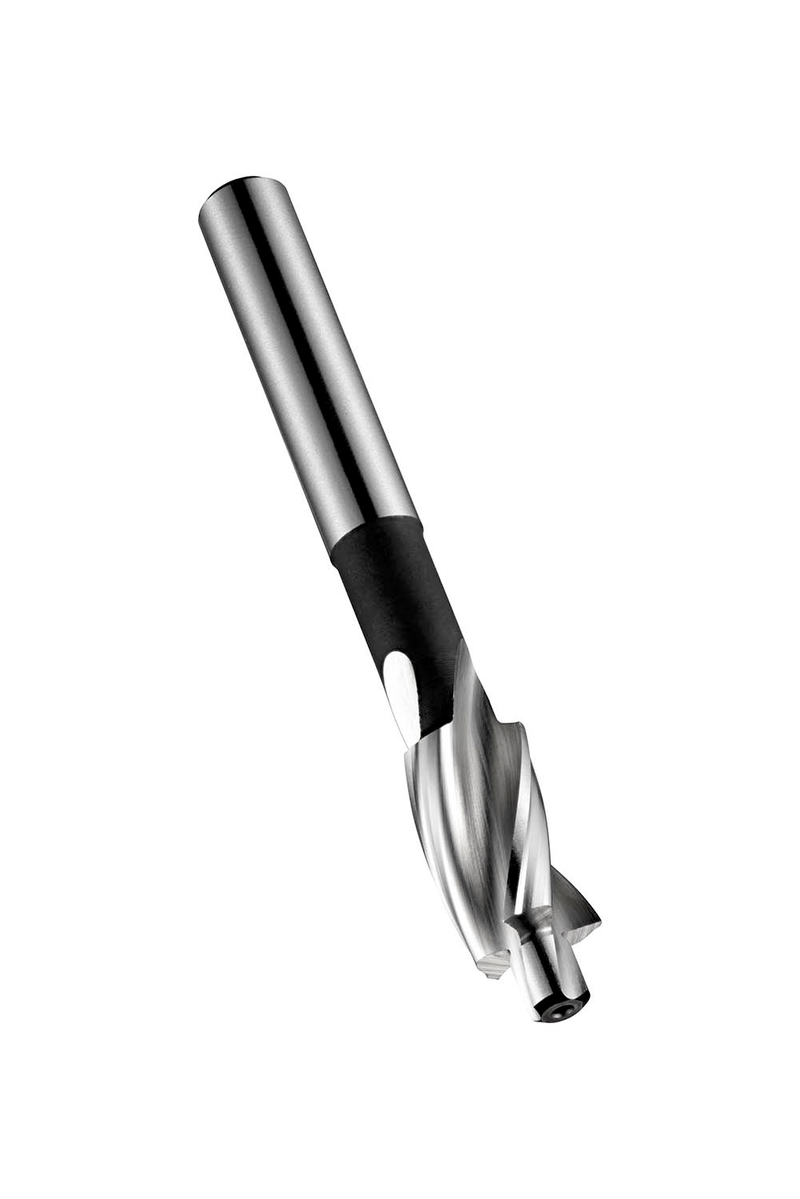

Fraise à lamer 3 goujures, diamètre 20,00mm avec une longueur totale de 100mm et une longueur de coupe de 22mm et un queue cylindrique de 12,5mm, selon la norme DIN 373 pour produire un lamage à l'aide d'un pilote non foret d'un diamètre de 13,00mm pour un ajustement serré pour M12, HSS avec finition brillante standard pour l'usinage de l'acier de décolletage et de l'acier au carbone non allié, du cuivre ou de ses alliages et du cuivre corroyé.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12520.0X13.0
GradeLumineux
Product Number5973189
Product FamilyG125

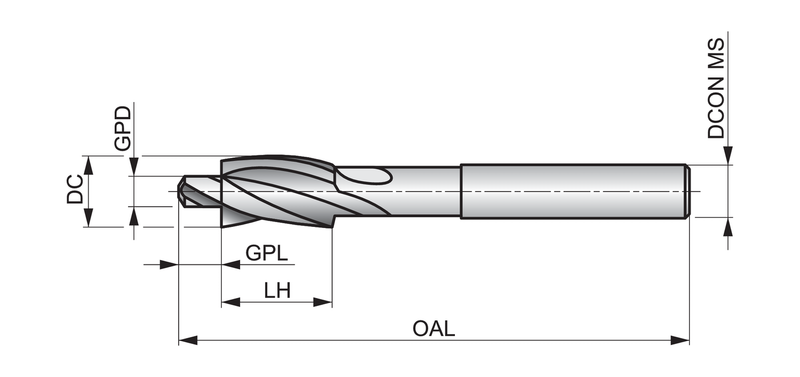

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107737
EAN7320760107737
File Type Download
G12520.0X13.0 — Line Drawing PDF Download
