UGC DOR5973192
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.71 CAD - $68.71 CAD
$68.71 CAD
$68.71 CAD - $68.71 CAD
$68.71 CAD

Vendu en lots de : 1

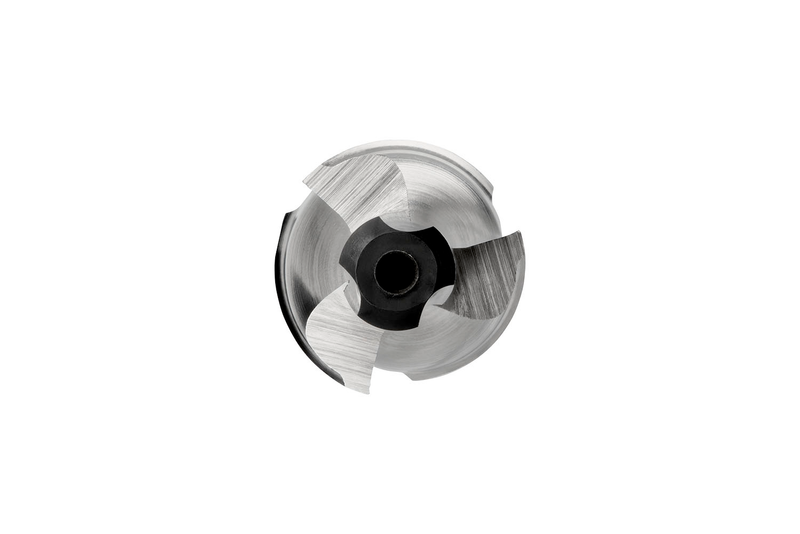

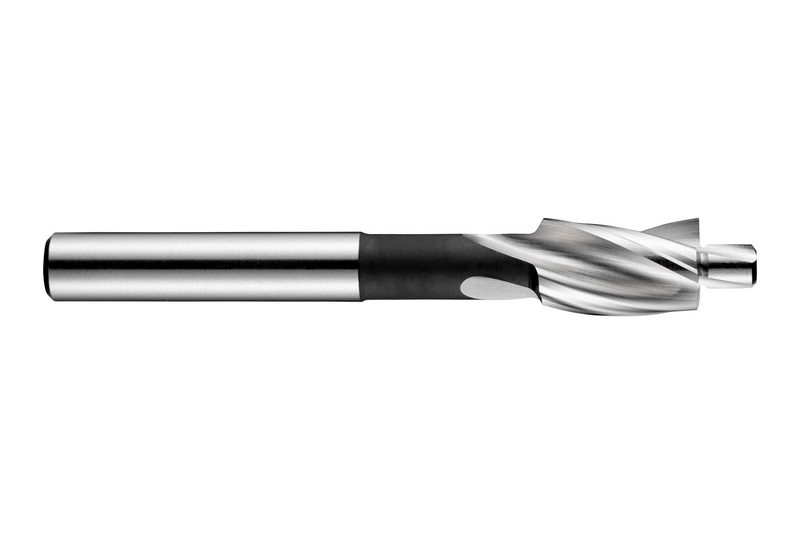

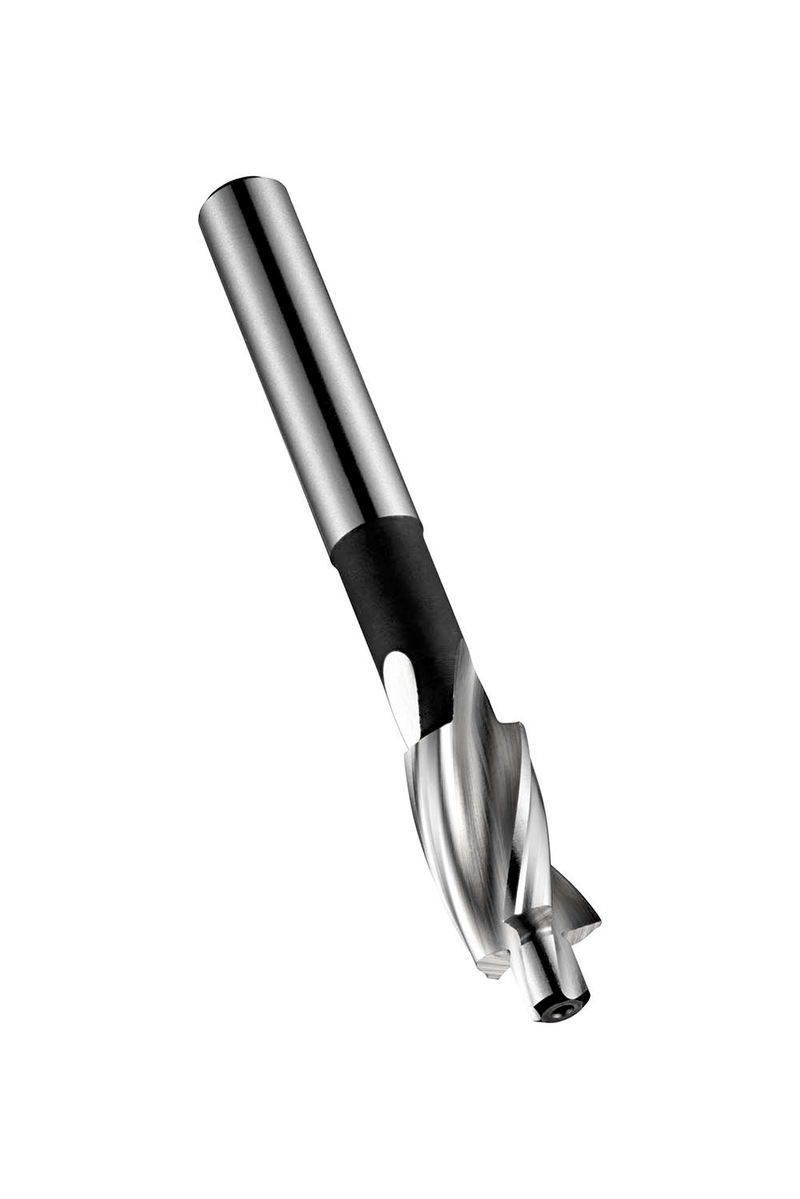

Fraise à chanfreiner à 3 goujures, diamètre 20,00 mm, longueur totale 100 mm, longueur de goujure 22 mm et queue cylindrique de 12,5 mm, selon la norme DIN 373 pour produire un chanfrein à l'aide d'un pilote non percé d'un diamètre de 13,50 mm pour un jeu normal pour M12, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone, du cuivre corroyé et des alliages de cuivre.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G12520.0X13.5
GradeLumineux
Product Number5973192
Product FamilyG125

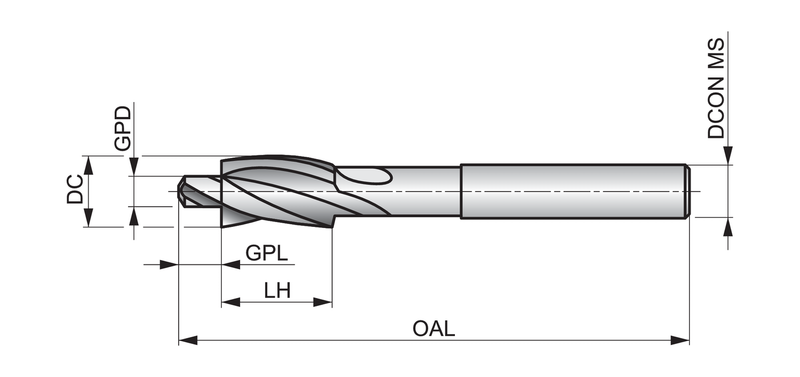

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4921"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107744
EAN7320760107744
File Type Download
G12520.0X13.5 — Line Drawing PDF Download
