A97810.0X430
A97810.0X430
A97810.0X430
A97810.0X430

A97810.0X430

UGC DOR5973194
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$390.00 CAD - $390.00 CAD
$390.00 CAD
$390.00 CAD - $390.00 CAD
$390.00 CAD

Vendu en lots de : 1

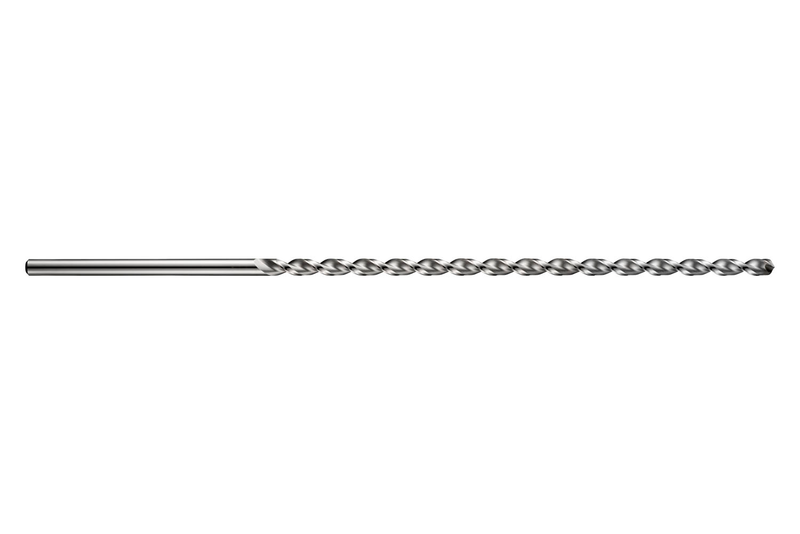

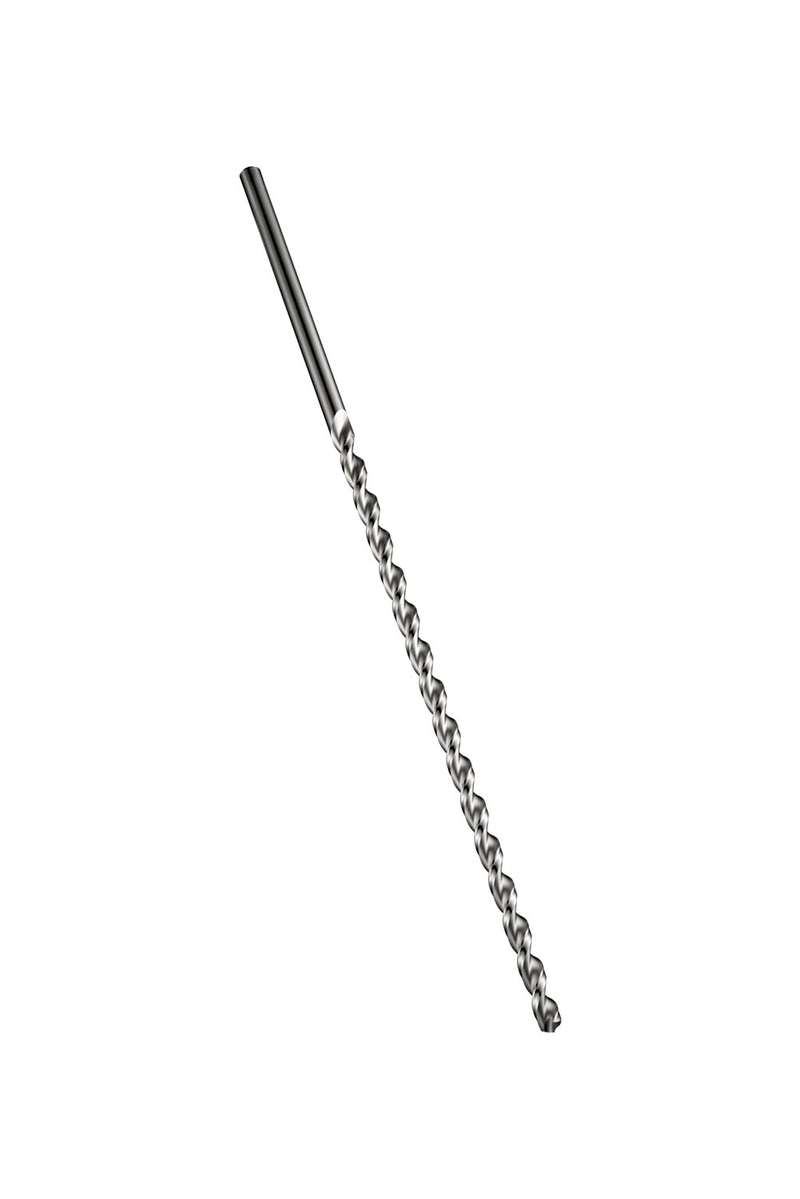

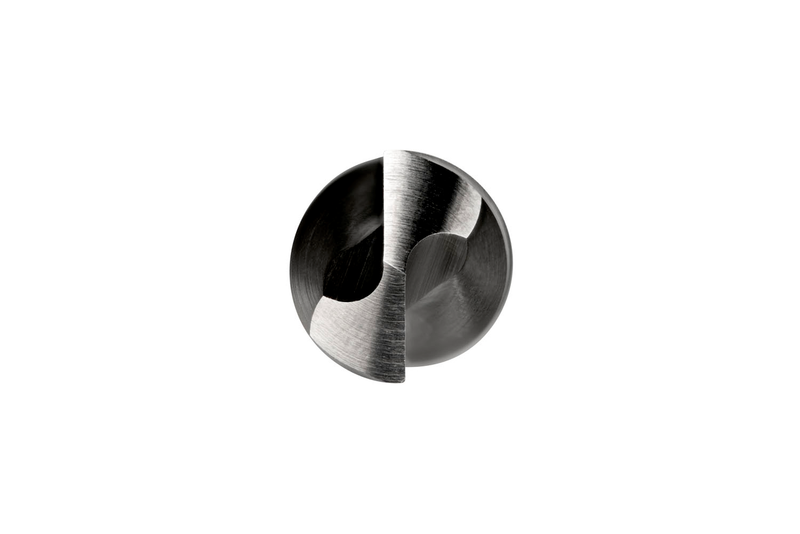

Foret PFX extra long à queue cylindrique, diamètre 10 mm, longueur totale 430 mm et longueur de coupe 295 mm selon la norme DIN 1869 / 3, avec angle de pointe de 130°, HSS-E au cobalt avec finition brillante, hélice rapide et âme parabolique pour forage de 25xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A97810.0X430
GradeLumineux
Product Number5973194
Product FamilyA978
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)16.9291"
Overall Length — mm (OAL)430.0 mm
Flute Length — in (LCF)11.6142"
Flute Length — mm (LCF)295.0 mm
Length × Diameter Ratio25
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 3
Reference Numbers
EDP Number148983
EAN7320760148983
File Type Download
A97810.0X430 — 3D Model STP Download
A97810.0X430 — Line Drawing PDF Download
