UGC DOR5973195
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.13 CAD - $19.13 CAD
$19.13 CAD
$19.13 CAD - $19.13 CAD
$19.13 CAD

Vendu en lots de : 1

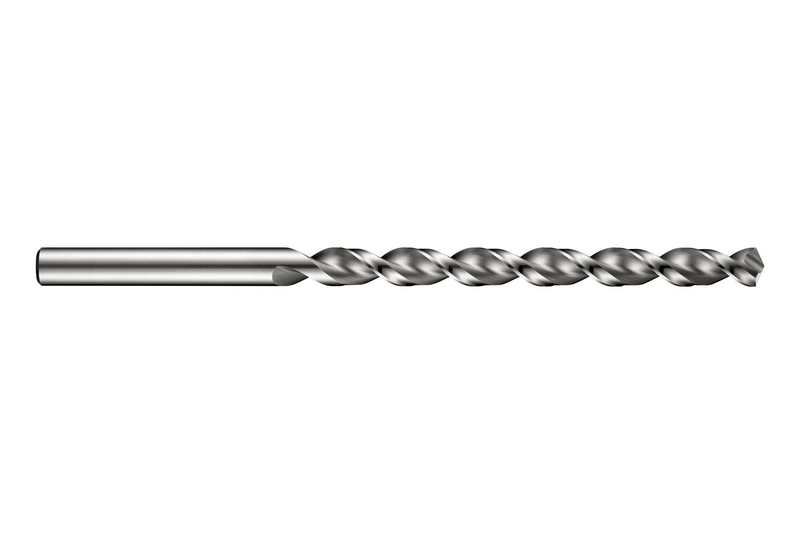

Foret PFX série longue à queue cylindrique, diamètre 3,9 mm, longueur totale de 119 mm et longueur utile de 78 mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, hélice rapide et âme parabolique pour le perçage jusqu'à 10xD sans débourrage dans l'acier, l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9403.9
GradeLumineux
Product Number5973195
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.1535"
Cutting Diameter — mm (DC)3.9 mm
Overall Length — in (OAL)4.685"
Overall Length — mm (OAL)119.0 mm
Flute Length — in (LCF)3.0709"
Flute Length — mm (LCF)78.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.1535"
Connection Dia. — mm (DCON)3.9 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number56028
EAN7320760056028
File Type Download
A9403.9 — 3D Model STP Download
A9403.9 — Line Drawing PDF Download
