A9403/16
A9403/16
A9403/16
A9403/16

A9403/16

UGC DOR5973202
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.04 CAD - $32.04 CAD
$32.04 CAD
$32.04 CAD - $32.04 CAD
$32.04 CAD

Vendu en lots de : 1

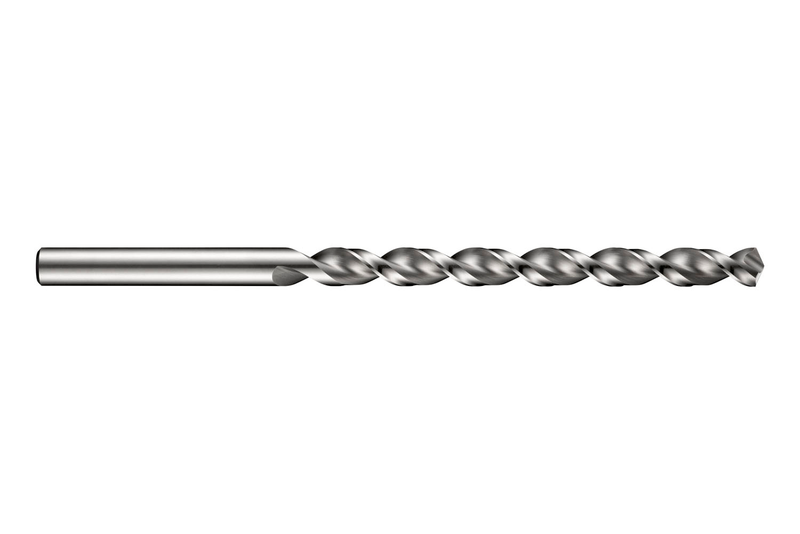

Foret PFX série longue à queue cylindrique, diamètre 0,1875" (3/16) avec une longueur totale de 146mm et une longueur de coupe de 86mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E à base de cobalt avec finition brillante, spirale rapide et âme parabolique pour un perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et les super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9403/16
GradeLumineux
Product Number5973202
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)5.748"
Overall Length — mm (OAL)146.0 mm
Flute Length — in (LCF)3.3858"
Flute Length — mm (LCF)86.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.1874"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number56318
EAN7320760056318
File Type Download
A9403/16 — 3D Model STP Download
A9403/16 — Line Drawing PDF Download
