A9783.5X265
A9783.5X265
A9783.5X265
A9783.5X265

A9783.5X265

UGC DOR5973204
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$111.43 CAD - $111.43 CAD
$111.43 CAD
$111.43 CAD - $111.43 CAD
$111.43 CAD

Vendu en lots de : 1

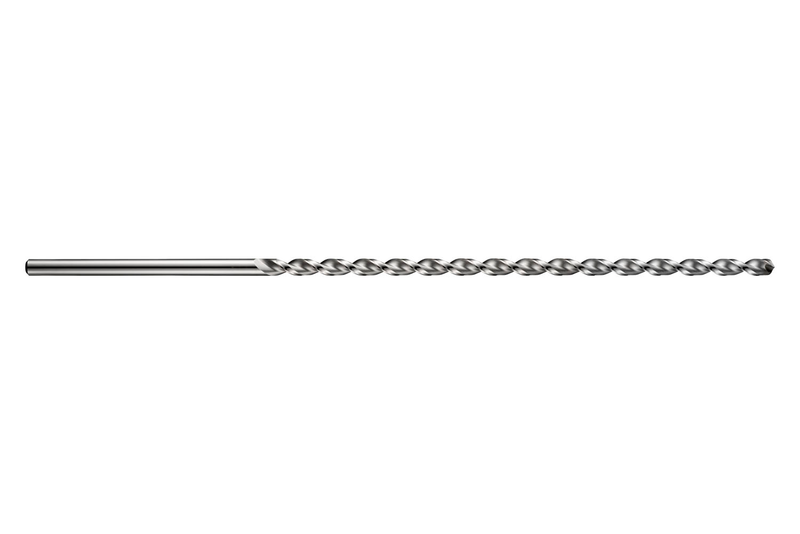

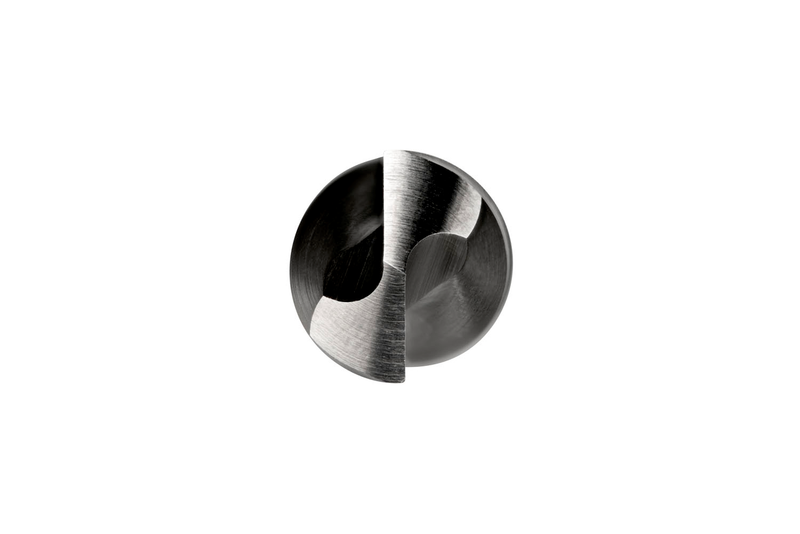

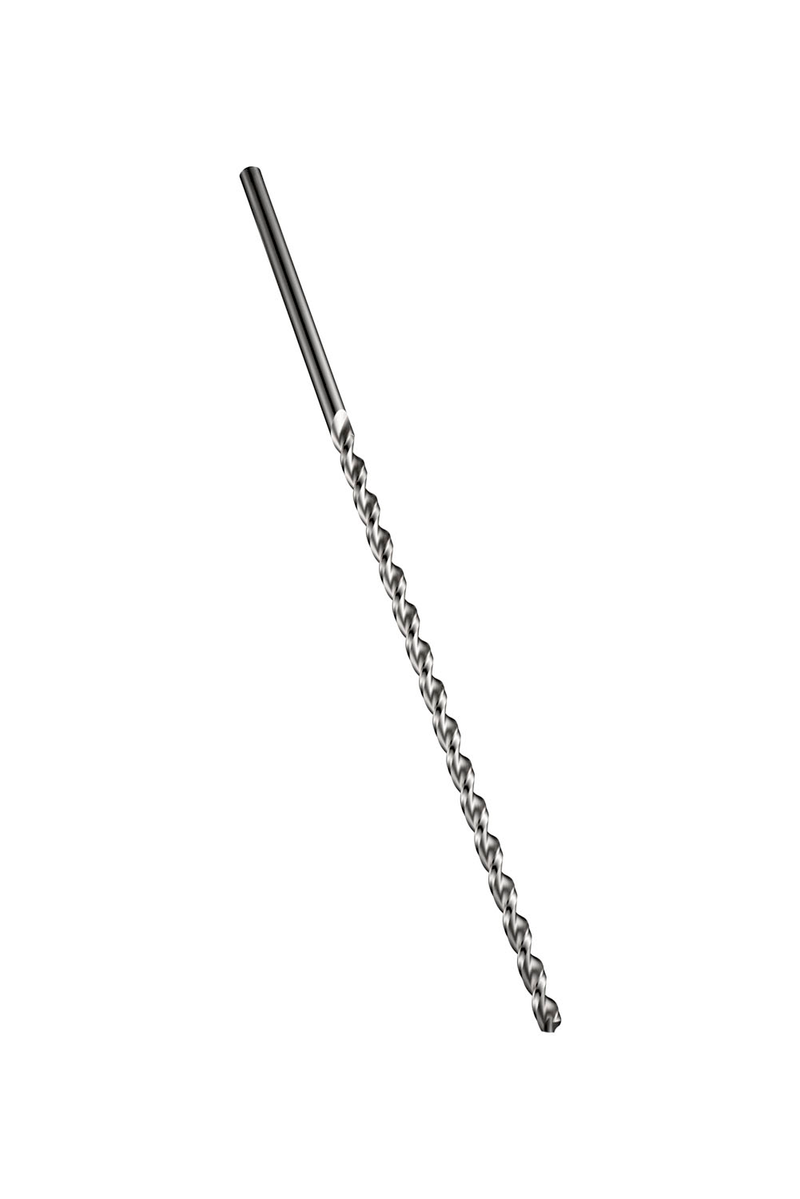

Foret PFX extra-long à queue cylindrique, diamètre 3,5 mm, longueur totale 265 mm et longueur utile 180 mm selon la norme DIN 1869 / 3, avec angle de pointe 130°, HSS-E cobalt avec finition brillante, hélice rapide et âme parabolique pour perçage 25xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9783.5X265
GradeLumineux
Product Number5973204
Product FamilyA978
Dimensions
Cutting Diameter — in (DC)0.1378"
Cutting Diameter — mm (DC)3.5 mm
Overall Length — in (OAL)10.4331"
Overall Length — mm (OAL)265.0 mm
Flute Length — in (LCF)7.0866"
Flute Length — mm (LCF)180.0 mm
Length × Diameter Ratio25
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 3
Reference Numbers
EDP Number148853
EAN7320760148853
File Type Download
A9783.5X265 — 3D Model STP Download
A9783.5X265 — Line Drawing PDF Download
