A9403/32
A9403/32
A9403/32
A9403/32

A9403/32

UGC DOR5973207
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.61 CAD - $20.61 CAD
$20.61 CAD
$20.61 CAD - $20.61 CAD
$20.61 CAD

Vendu en lots de : 1

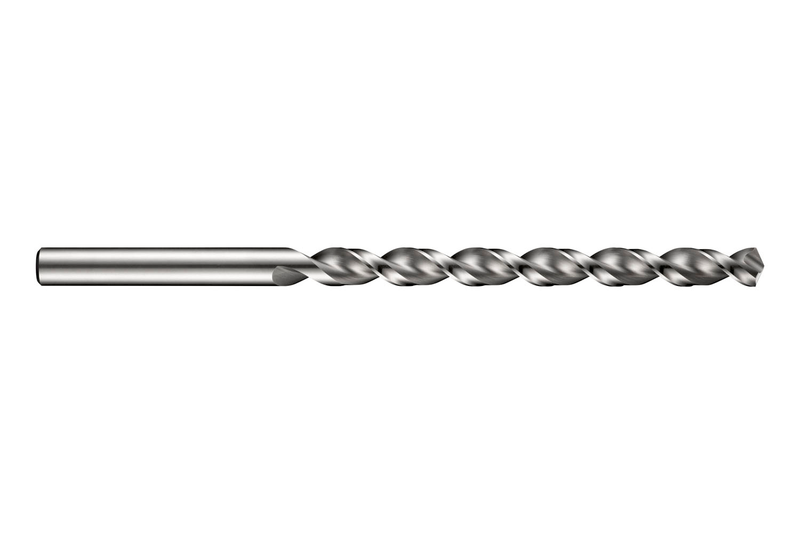

Foret PFX série longue à queue cylindrique, diamètre 0,0938" (3/32) avec une longueur totale de 108mm et une longueur de coupe de 57mm selon la norme DIN/ANSI avec un angle de pointe de 130°, en HSS-E cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage 10xD sans débourrage dans l'acier, l'acier inoxydable et le super-alliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9403/32
GradeLumineux
Product Number5973207
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.0938"
Cutting Diameter — mm (DC)2.38 mm
Cutting Diameter — Fractional3/32
Overall Length — in (OAL)4.252"
Overall Length — mm (OAL)108.0 mm
Flute Length — in (LCF)2.2441"
Flute Length — mm (LCF)57.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.0937"
Connection Dia. — mm (DCON)2.38 mm
Drill Point Angle (SIG)130°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number54727
EAN7320760054727
File Type Download
A9403/32 — 3D Model STP Download
A9403/32 — Line Drawing PDF Download
