UGC DOR5973208
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$734.71 CAD - $734.71 CAD
$734.71 CAD
$734.71 CAD - $734.71 CAD
$734.71 CAD

Vendu en lots de : 1

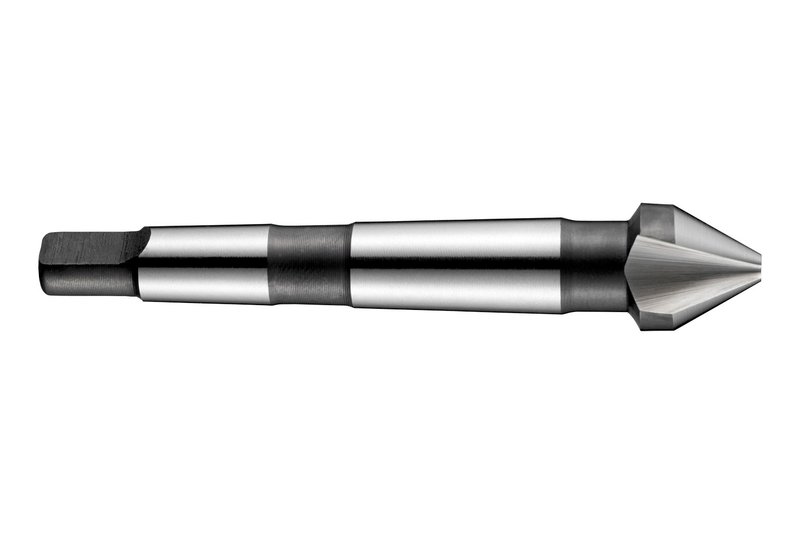

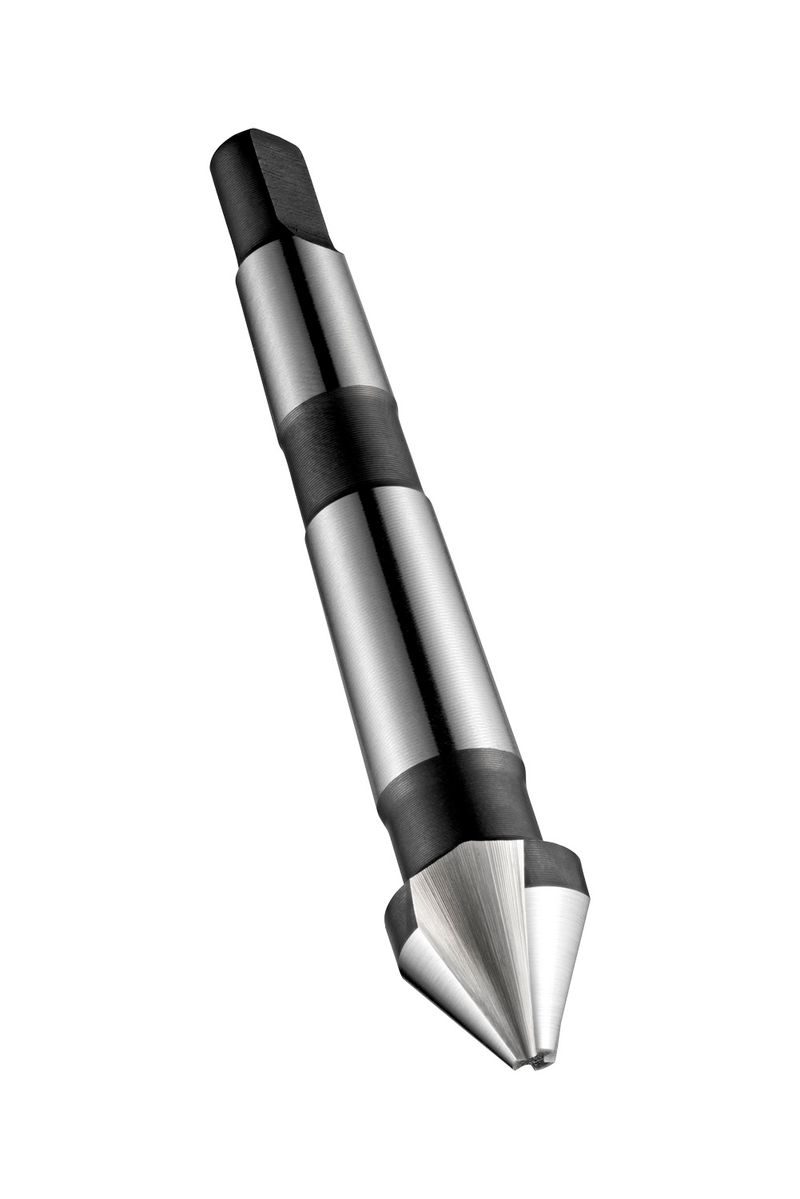

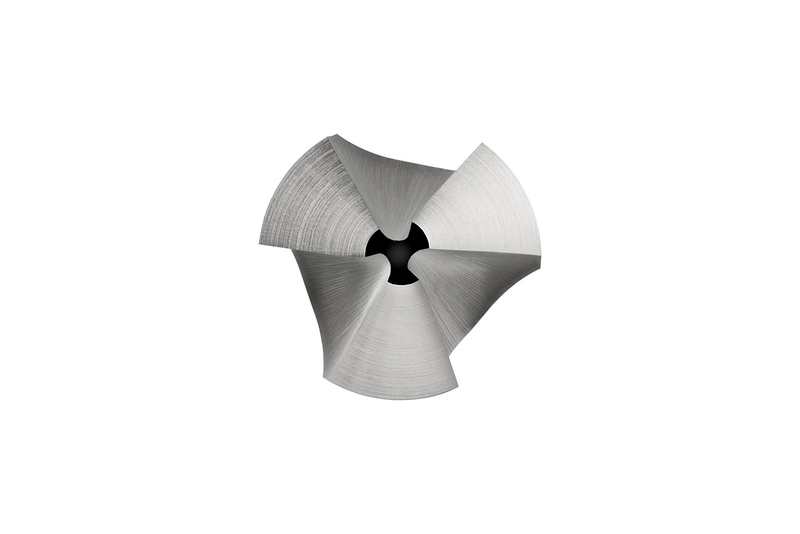

Fraise à chambrer à 3 dents, angle de chambrage de 60°, diamètre maximum de 50,00 mm avec une longueur totale de 160 mm et une longueur de tête de 36 mm et une queue conique Morse MT 3, selon la norme DIN 334 D pour l'ébavurage et le chanfreinage de trous d'un diamètre minimal de 16,00 mm, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G13750.0
GradeLumineux
Product Number5973208
Product FamilyG137
Dimensions
Overall Length — in (OAL)6.2992"
Overall Length — mm (OAL)160.0 mm
Flute Length — mm (LCF)36.0 mm
Number of Flutes (NOF)3
Drill Point Angle (SIG)60°
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardDIN 334 J
Reference Numbers
EDP Number108819
EAN7320760108819
File Type Download

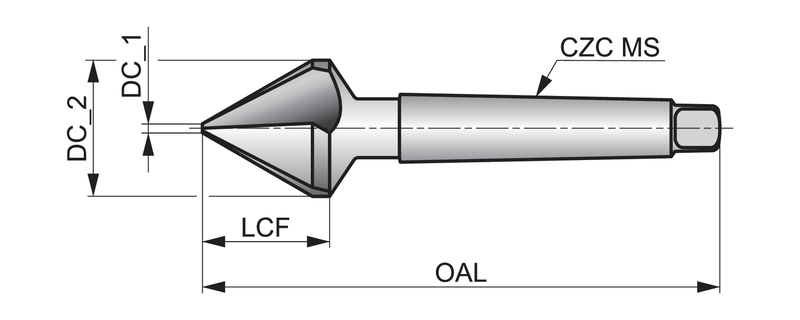

G13750.0 — Line Drawing PDF Download
