A9784,5X295
A9784,5X295
A9784,5X295
A9784,5X295

A9784,5X295

UGC DOR5973216
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.36 CAD - $125.36 CAD
$125.36 CAD
$125.36 CAD - $125.36 CAD
$125.36 CAD

Vendu en lots de : 1

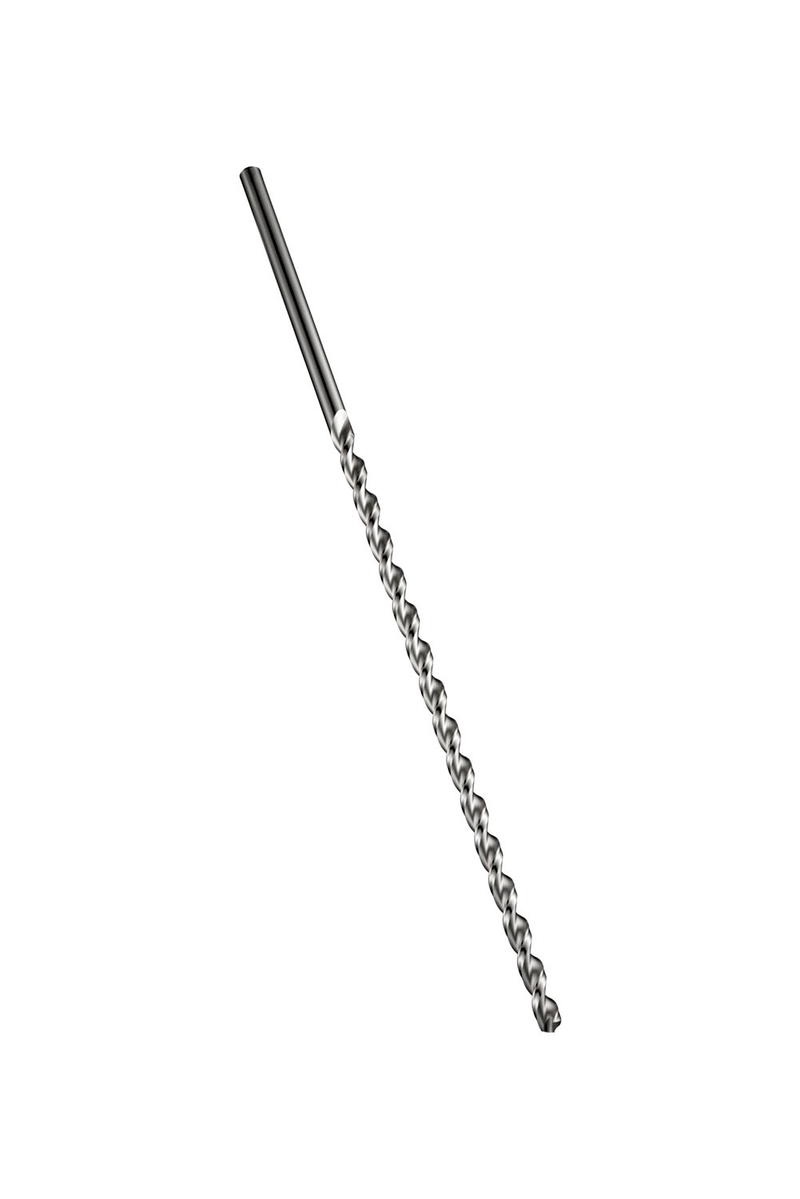

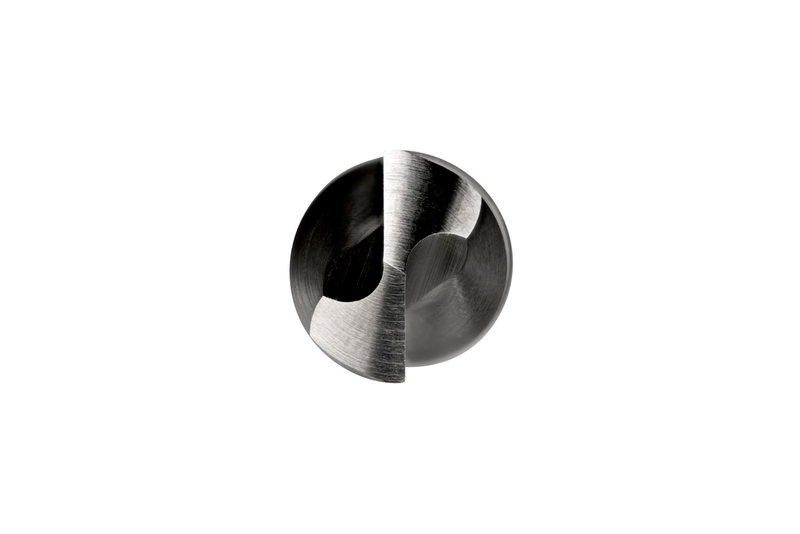

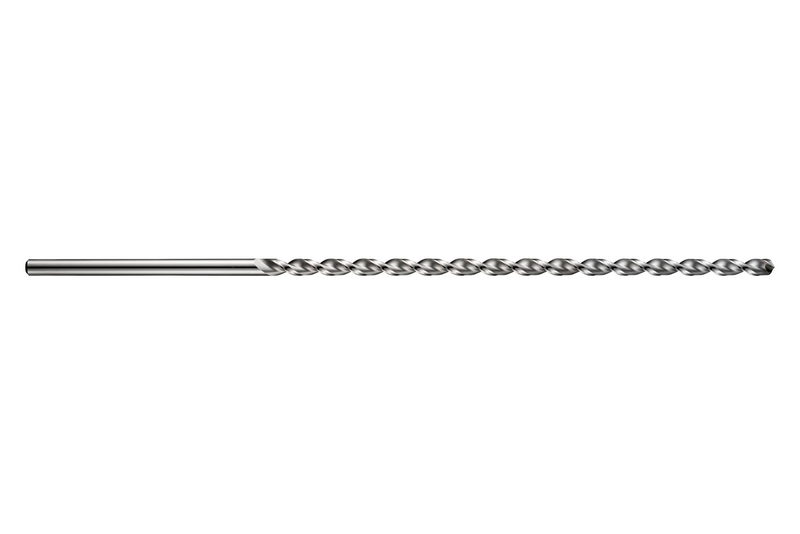

Foret PFX extra-long à queue cylindrique, diamètre 4,5 mm, longueur totale 295 mm, longueur utile 200 mm, conforme à la norme DIN 1869 / 3, angle de pointe 130°, HSS-E au cobalt, finition brillante, hélice rapide et âme parabolique pour perçage 25xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9784,5X295
GradeLumineux
Product Number5973216
Product FamilyA978
Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)11.6142"
Overall Length — mm (OAL)295.0 mm
Flute Length — in (LCF)7.874"
Flute Length — mm (LCF)200.0 mm
Length × Diameter Ratio25
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 3
Reference Numbers
EDP Number148877
EAN7320760148877
File Type Download
A9784,5X295 — 3D Model STP Download
A9784,5X295 — Line Drawing PDF Download
