G1258.0X4.3
G1258.0X4.3
G1258.0X4.3
G1258.0X4.3

G1258.0X4.3

UGC DOR5973219
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.07 CAD - $29.07 CAD
$29.07 CAD
$29.07 CAD - $29.07 CAD
$29.07 CAD

Vendu en lots de : 1

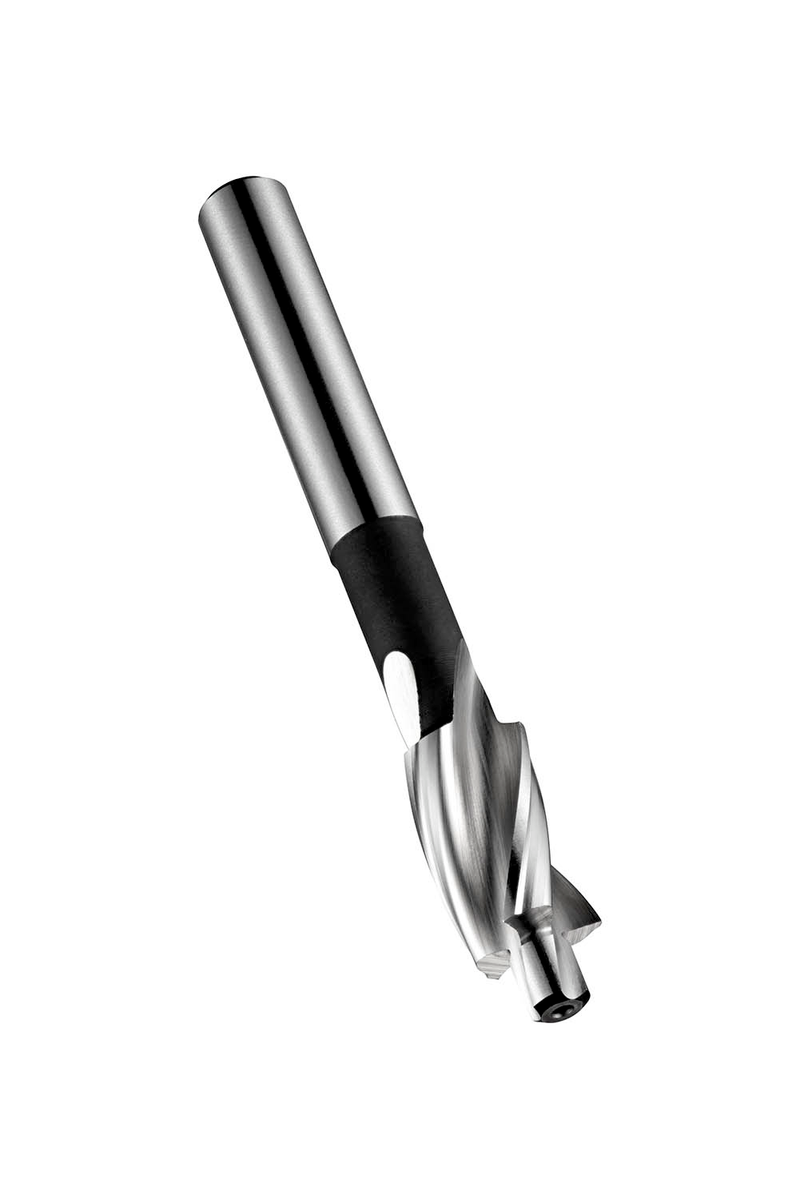

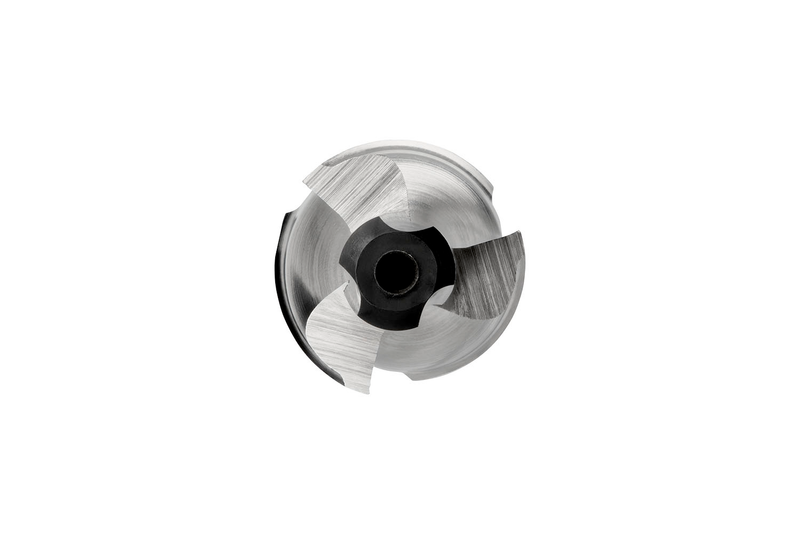

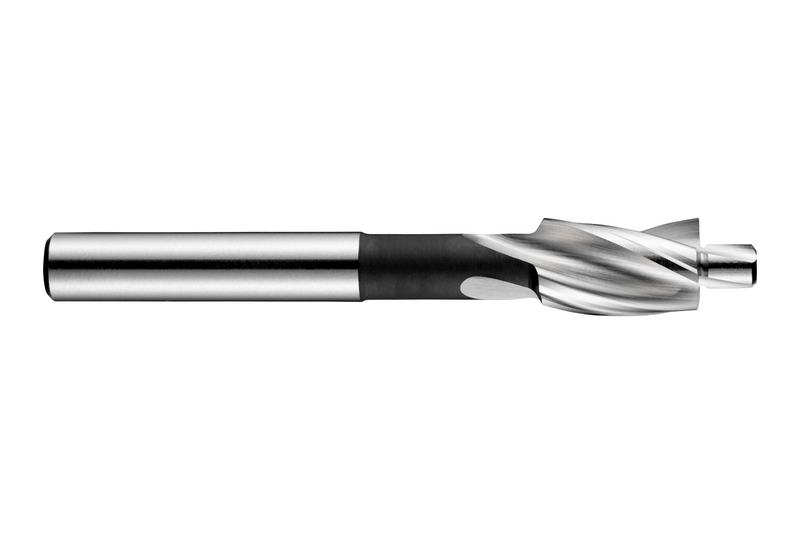

Fraise à chanfreiner à 3 dents, diamètre 8,00 mm, longueur totale 71 mm et longueur de coupe 14 mm et queue droite de 5 mm, selon la norme DIN 373 pour réaliser un fraisage avec l'aide d'un foret pilote non perçant d'un diamètre de 4,30 mm pour un jeu ajusté pour M4, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone, corroyés et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G1258.0X4.3
GradeLumineux
Product Number5973219
Product FamilyG125
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.7953"
Overall Length — mm (OAL)71.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107799
EAN7320760107799
File Type Download

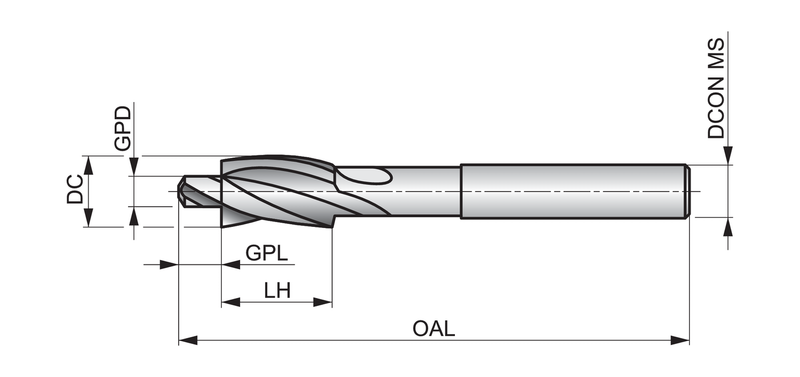

G1258.0X4.3 — Line Drawing PDF Download
