G1258.0X4.5
G1258.0X4.5
G1258.0X4.5
G1258.0X4.5

G1258.0X4.5

UGC DOR5973224
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.07 CAD - $29.07 CAD
$29.07 CAD
$29.07 CAD - $29.07 CAD
$29.07 CAD

Vendu en lots de : 1

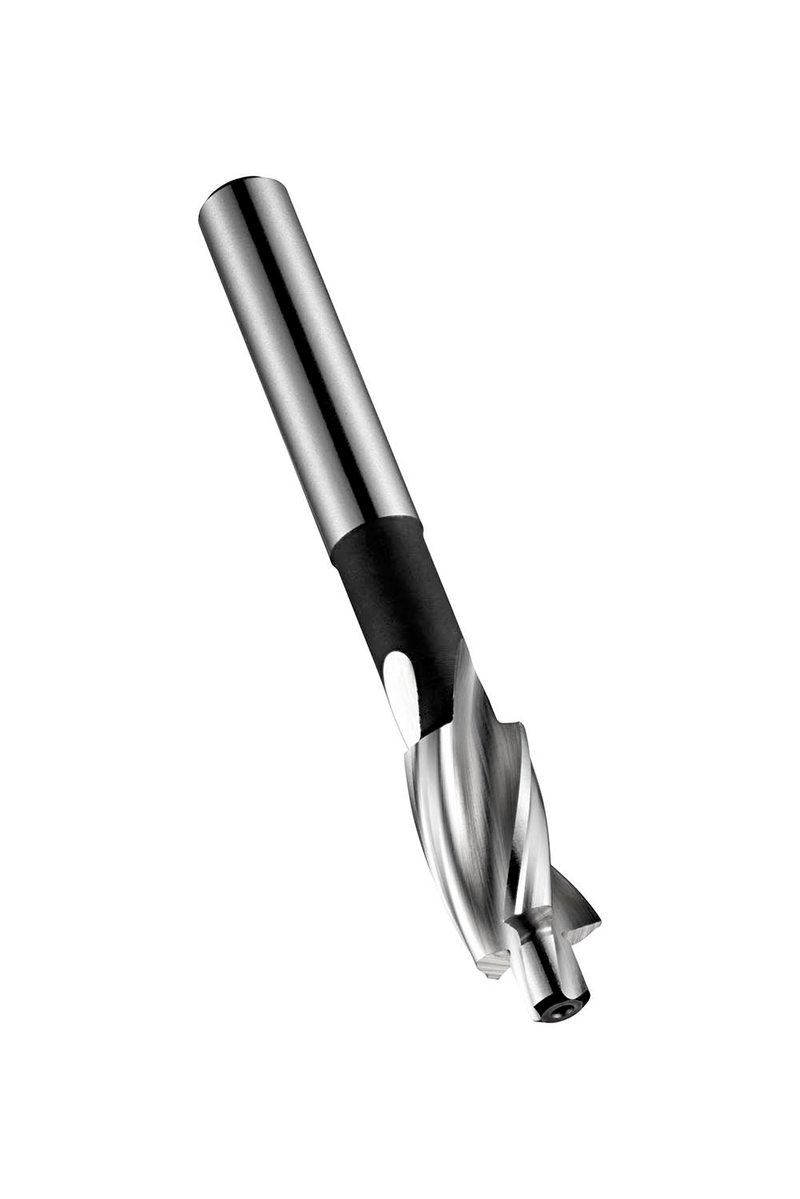

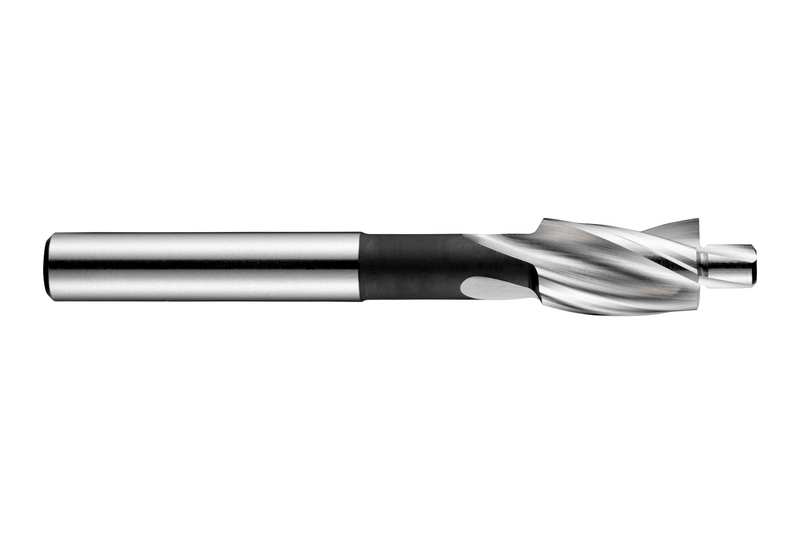

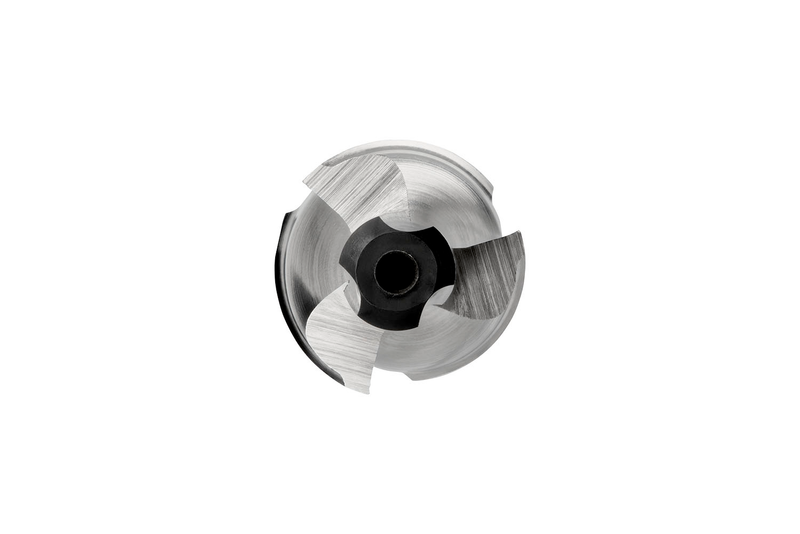

Fraise à chanfreiner à 3 cannelures, diamètre 8,00 mm, longueur totale de 71 mm, longueur de cannelure de 14 mm et queue droite de 5 mm, selon la norme DIN 373 pour produire un chanfrein à l'aide d'un pilote non perçant d'un diamètre de 4,50 mm pour un ajustement normal pour M4, HSS avec finition brillante standard pour l'usinage des aciers de décolletage et des aciers au carbone non alliés, corroyés et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)G1258.0X4.5
GradeLumineux
Product Number5973224
Product FamilyG125

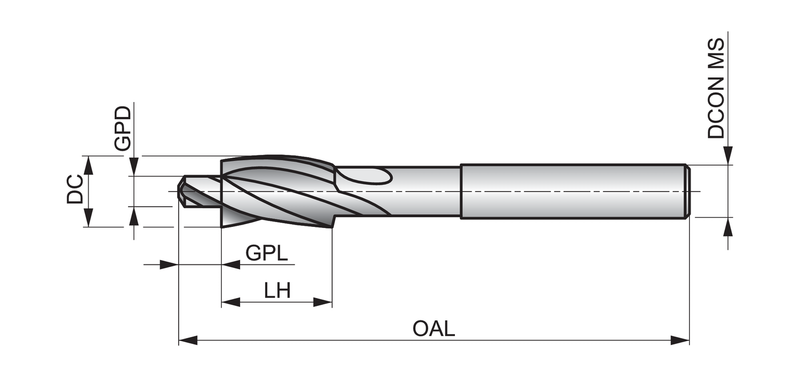

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.7953"
Overall Length — mm (OAL)71.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 373
Reference Numbers
EDP Number107805
EAN7320760107805
File Type Download
G1258.0X4.5 — Line Drawing PDF Download
