UGC DOR5973231
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$155.07 CAD - $155.07 CAD
$155.07 CAD
$155.07 CAD - $155.07 CAD
$155.07 CAD

Vendu en lots de : 1

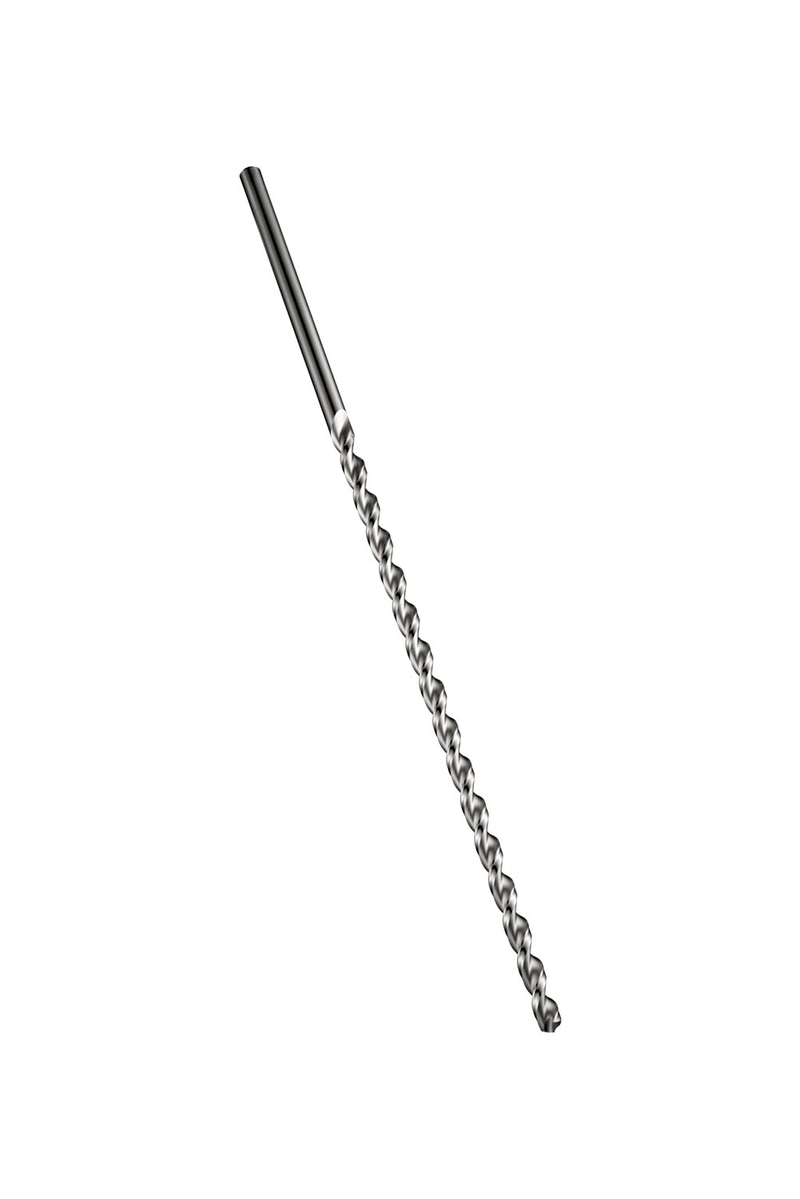

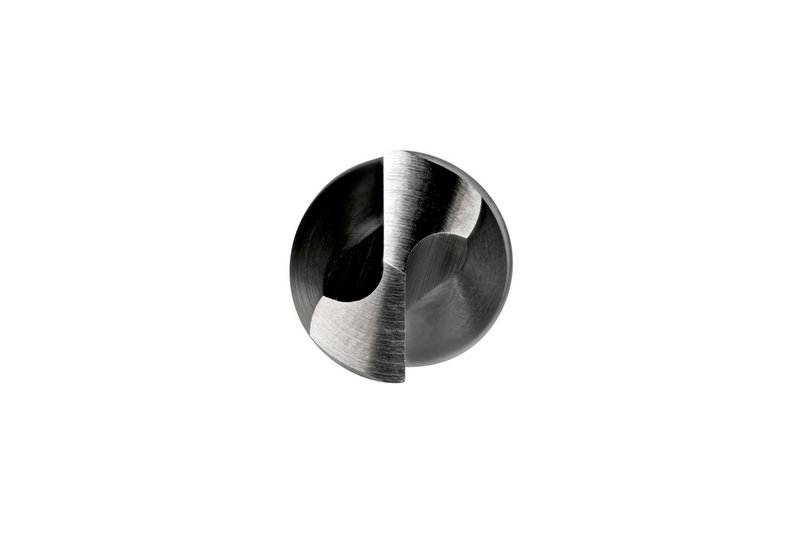

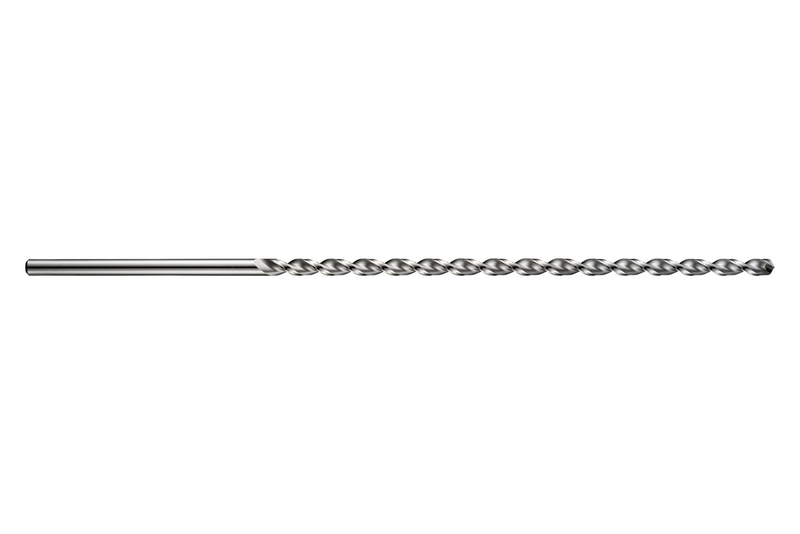

Foret PFX extra-long à queue droite, diamètre 6mm, longueur totale 330mm et longueur de goujure 225mm selon la norme DIN 1869 / 3 avec angle de pointe de 130°, HSS-E à base de cobalt avec finition brillante, hélice rapide et âme parabolique pour perçage 25xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9786.0X330
GradeLumineux
Product Number5973231
Product FamilyA978
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)12.9921"
Overall Length — mm (OAL)330.0 mm
Flute Length — in (LCF)8.8583"
Flute Length — mm (LCF)225.0 mm
Length × Diameter Ratio25
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 3
Reference Numbers
EDP Number148907
EAN7320760148907
File Type Download
A9786.0X330 — 3D Model STP Download
A9786.0X330 — Line Drawing PDF Download
