A9787.0X370
A9787.0X370
A9787.0X370
A9787.0X370

A9787.0X370

UGC DOR5973242
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$223.79 CAD - $223.79 CAD
$223.79 CAD
$223.79 CAD - $223.79 CAD
$223.79 CAD

Vendu en lots de : 1

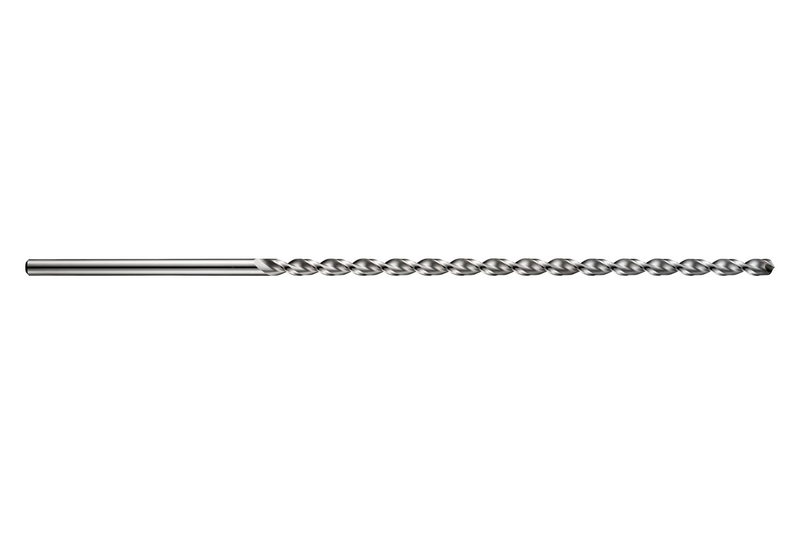

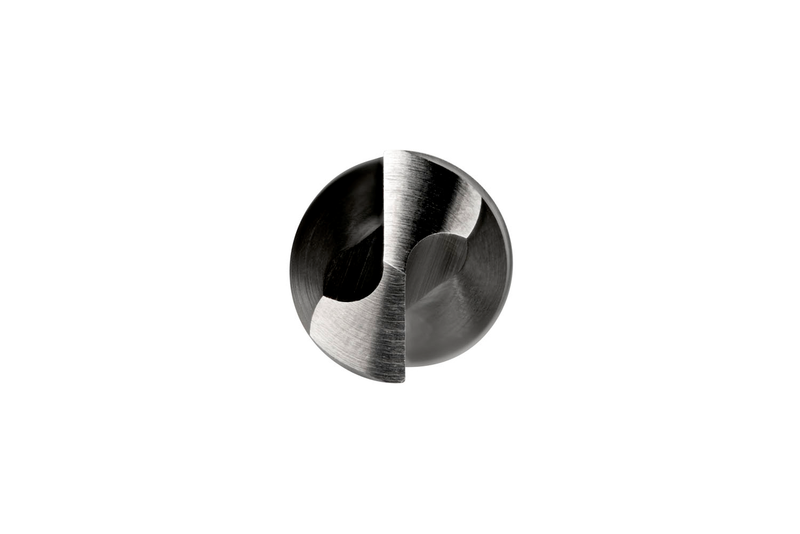

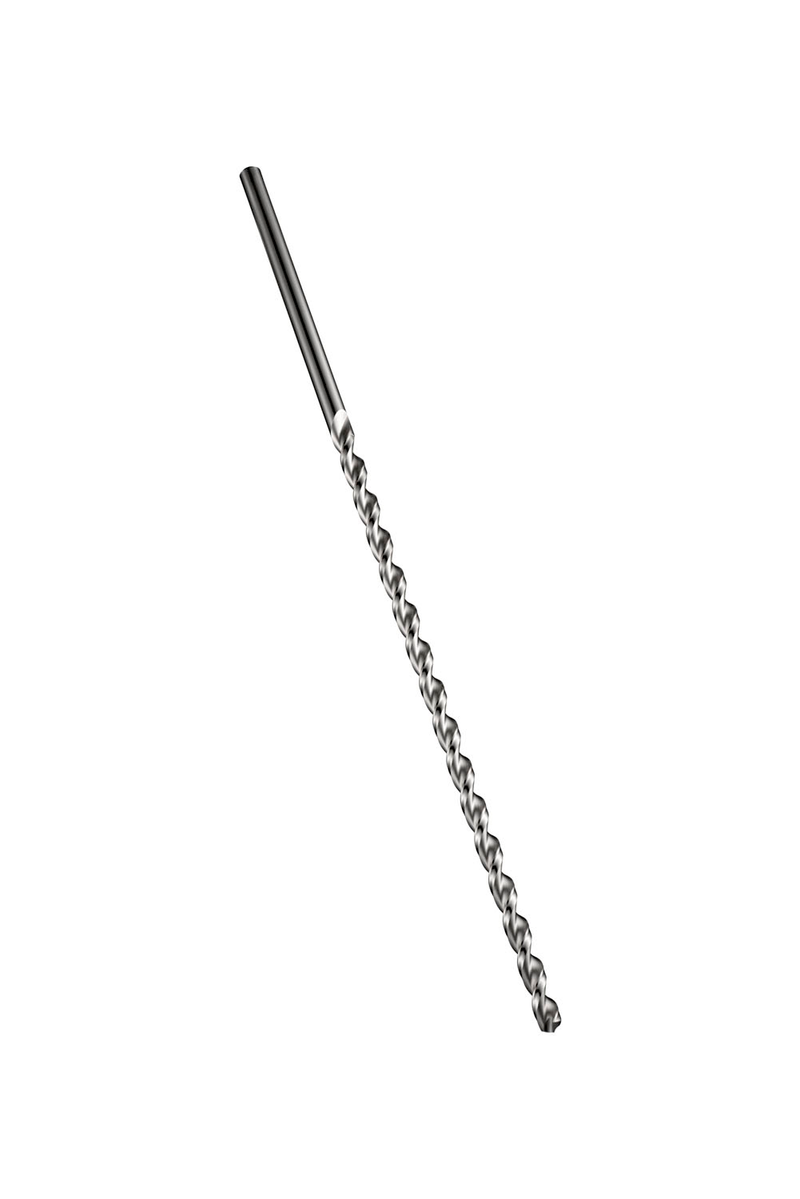

Foret PFX extra-long à queue cylindrique, diamètre 7mm, longueur totale 370mm et longueur de spirale 250mm, selon la norme DIN 1869 / 3, avec un angle de pointe de 130°, en acier rapide HSS-E au cobalt avec finition brillante, spirale rapide et âme parabolique pour perçage 25xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9787.0X370
GradeLumineux
Product Number5973242
Product FamilyA978
Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)14.5669"
Overall Length — mm (OAL)370.0 mm
Flute Length — in (LCF)9.8425"
Flute Length — mm (LCF)250.0 mm
Length × Diameter Ratio25
Connection Dia. — in (DCON)0.2756"
Connection Dia. — mm (DCON)7.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1869 / 3
Reference Numbers
EDP Number148921
EAN7320760148921
File Type Download
A9787.0X370 — 3D Model STP Download
A9787.0X370 — Line Drawing PDF Download
